Saving and Loading Data
12.7 Saving/Loading the Setup Data
CAUTION
Do not remove the storage medium (disk) or turn OFF the power when the
access indicator or icon of the storage medium is blinking. Doing so can
damage the storage medium or destroy the data on the medium.
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

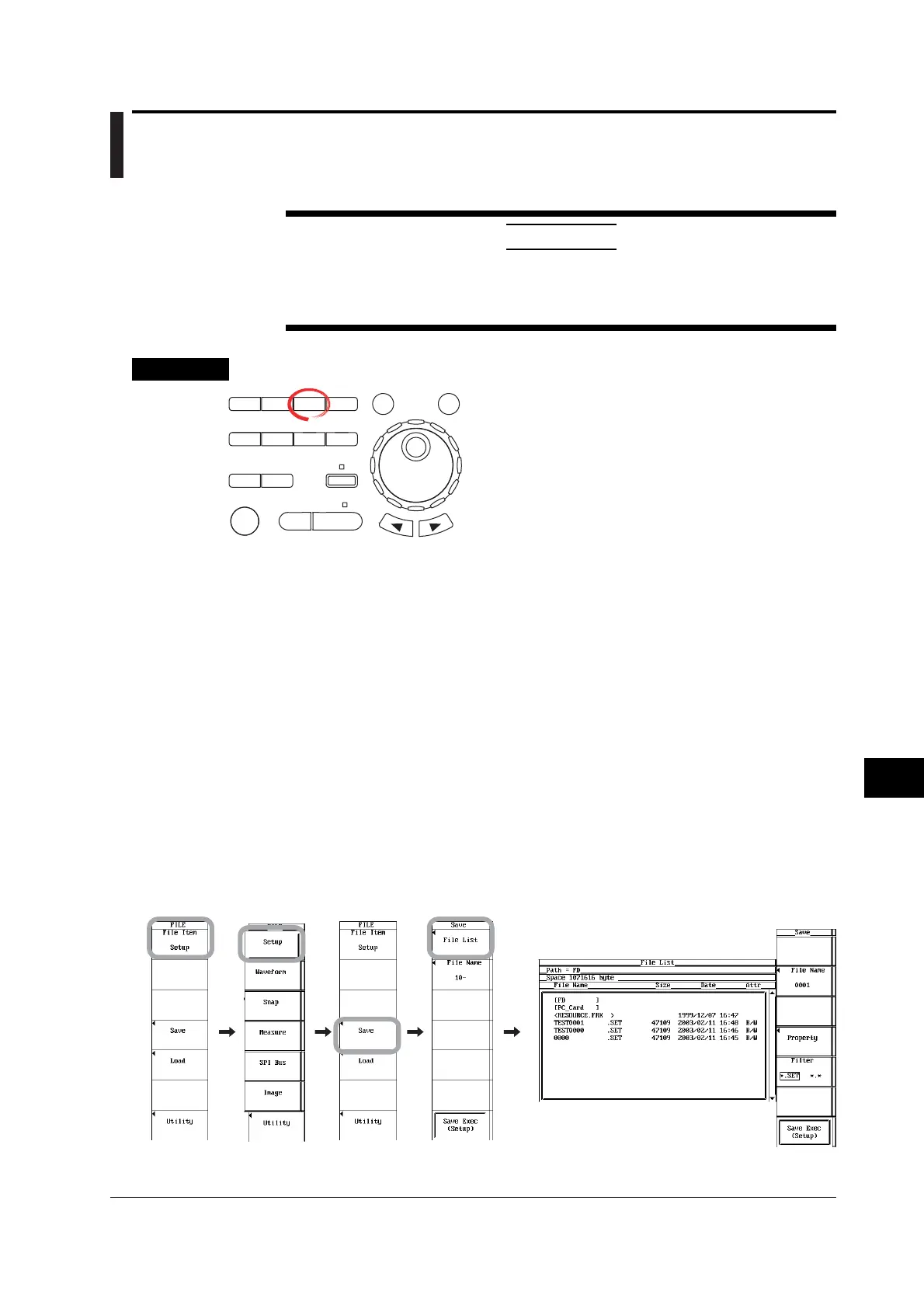

1. Press FILE. The FILE menu appears.
2. Press the File Item soft key. The File Item menu appears.
3. Press the Setup soft key.
Saving the Setup Data
Selecting the Save Destination Medium
4. Press the Save soft key. The Save menu appears.
5. Press the File List soft key. The File List window appears.
6. Use jog shuttle & SELECT to select the save destination medium (indicated by
brackets).
Selecting the Save Destination Directory
(Perform this operation when directories are present on the medium.)
7. Use jog shuttle & SELECT to select the save destination directory (indicated by
< >). The selected medium/directory is displayed in “Path=......” located above
and to the left of the File List window. Select <..> to move to the parent
directory.
To Next Page
