Setting the File Name and Comment
8. Press the File Name soft key. The File Name & Comment dialog box opens.
9. Use jog shuttle & SELECT to set the auto naming function.
• If you select ON, the auto naming function is enabled.
• If you select OFF, the auto naming function is disabled.
10. Use jog shuttle & SELECT to call up the keyboard and set the file name or
comment.
• Enter the file name using up to 14 characters.
• Enter the comment using up to 25 characters.
11. Press ESC. The File Name & Comment dialog box closes.

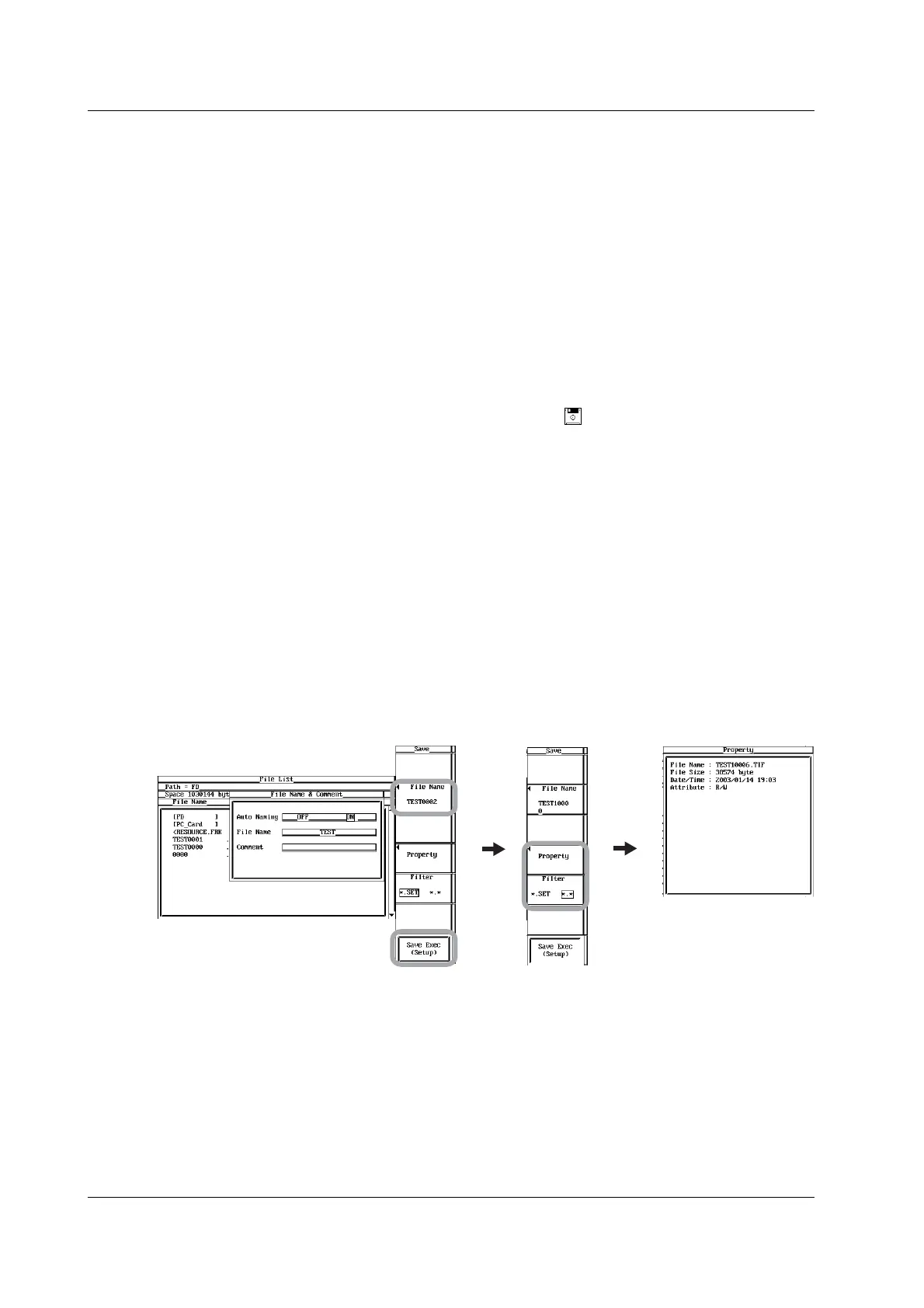

Executing the Save Operation
12. Press the Save Exec soft key. The data is saved to the directory indicated by
Path=...... At the same time, the Save Exec soft key changes to the Abort soft
key. While the data is being saved, the icon is displayed at the upper left
corner of the screen.
Aborting the Save Operation
13. Press the Abort soft key. The save operation is aborted. At the same time, the
Abort soft key changes to the Save Exec soft key.
Specifying the File to Be Displayed in the File List Window and Viewing File
Properties
14. On the screen showing the File List window, press the Filter soft key to select
∗.SET or ∗.∗.
• If you select ∗.SET, only setup data files are displayed.
• If you select ∗.∗, all the files in the directory are displayed.
15. Turn jog shuttle to select the files in the File List window.
16. Press the Property soft key. Information about the selected file is displayed.
17. Press ESC. The window showing the information closes.
