YOKOGAWA DL7440 User Manual

13-43
IM 701450-01E
13
Ethernet Communications (Optional)

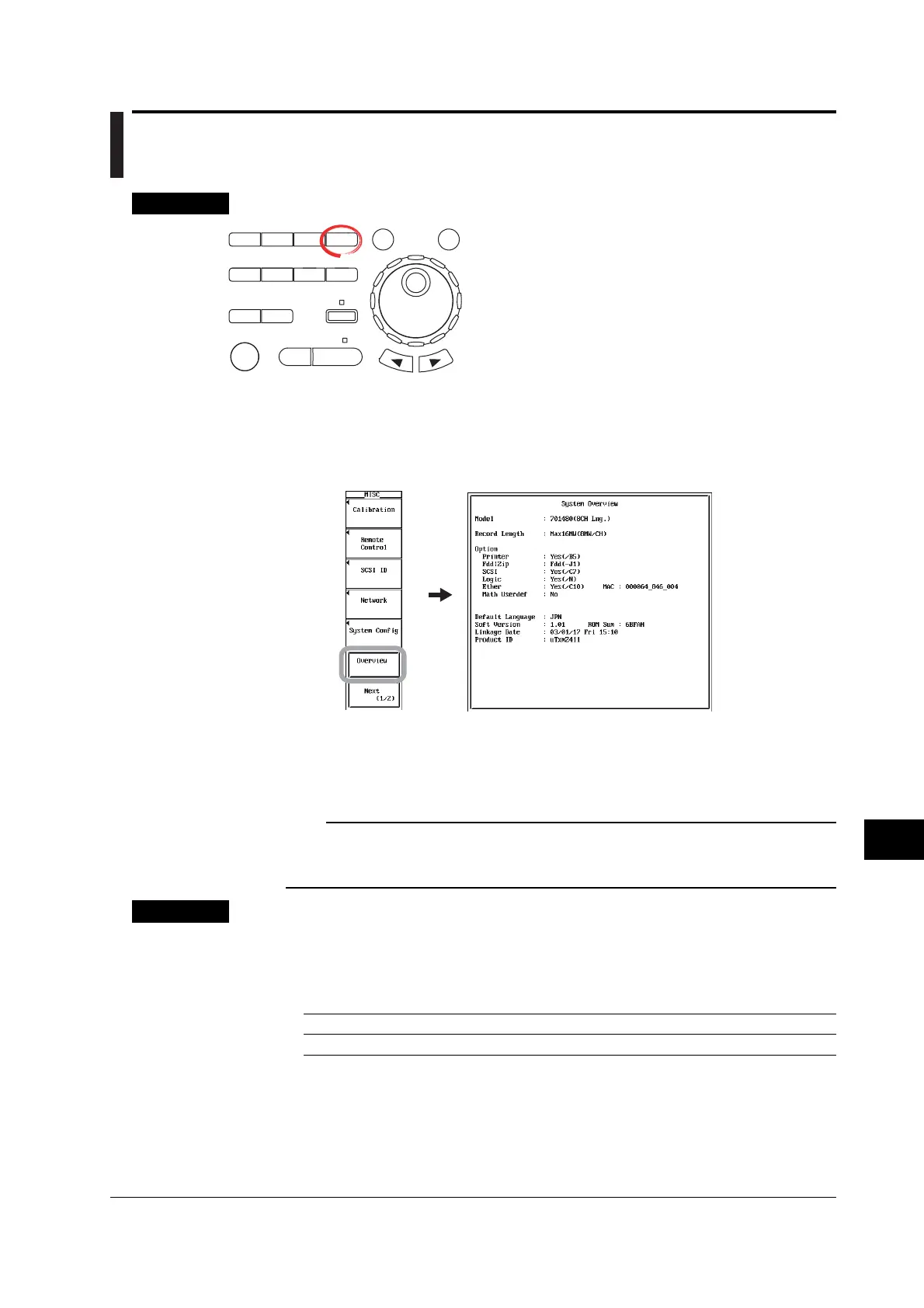

13.9 Checking the Presence of the Ethernet
Interface (Optional) and the MAC Address
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE MISC RESET SELECT
MATH
SHIFT
GO/NOGO CURSOR MEASURE
HISTORY
PRINT
ACQ START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press MISC. The MISC menu appears.
2. Press the Overview soft key. The Overview window opens.
Pressing a panel key other than the Overview soft key clears the Overview
window.
When Ether:Yes(/C10) appears for the Option item in the Overview window, this
indicates that the Ethernet interface is installed. The information displayed on
the right (MAC:000064_846_004 in the example) is the MAC address.
Note
• Ether:Yes(/C10) is displayed only if the Ethernet interface option is installed.
• If XXXXXX_XXX_XXX is displayed for the MAC address, contact your nearest YOKOGAWA
dealer.
Explanation
You can check the presence of the Ethernet interface (optional) and the MAC address.
MAC address is a unique address that is pre-assigned to the DL7400.
The Presence of the Ethernet Interface (Optional)
Displayed in the Ether section of the Overview window.
Yes The Ethernet interface is installed.
No The Ethernet interface is not installed.
MAC Address
MAC address is a unique address that is pre-assigned to the DL7400. It is required in
identifying the instruments on the network.
