5-15
IM 701450-01E
5
Vertical and Horizontal Axes
5.9 Using the Linear Scaling Function
<For a description of this function, refer to page 2-4.>

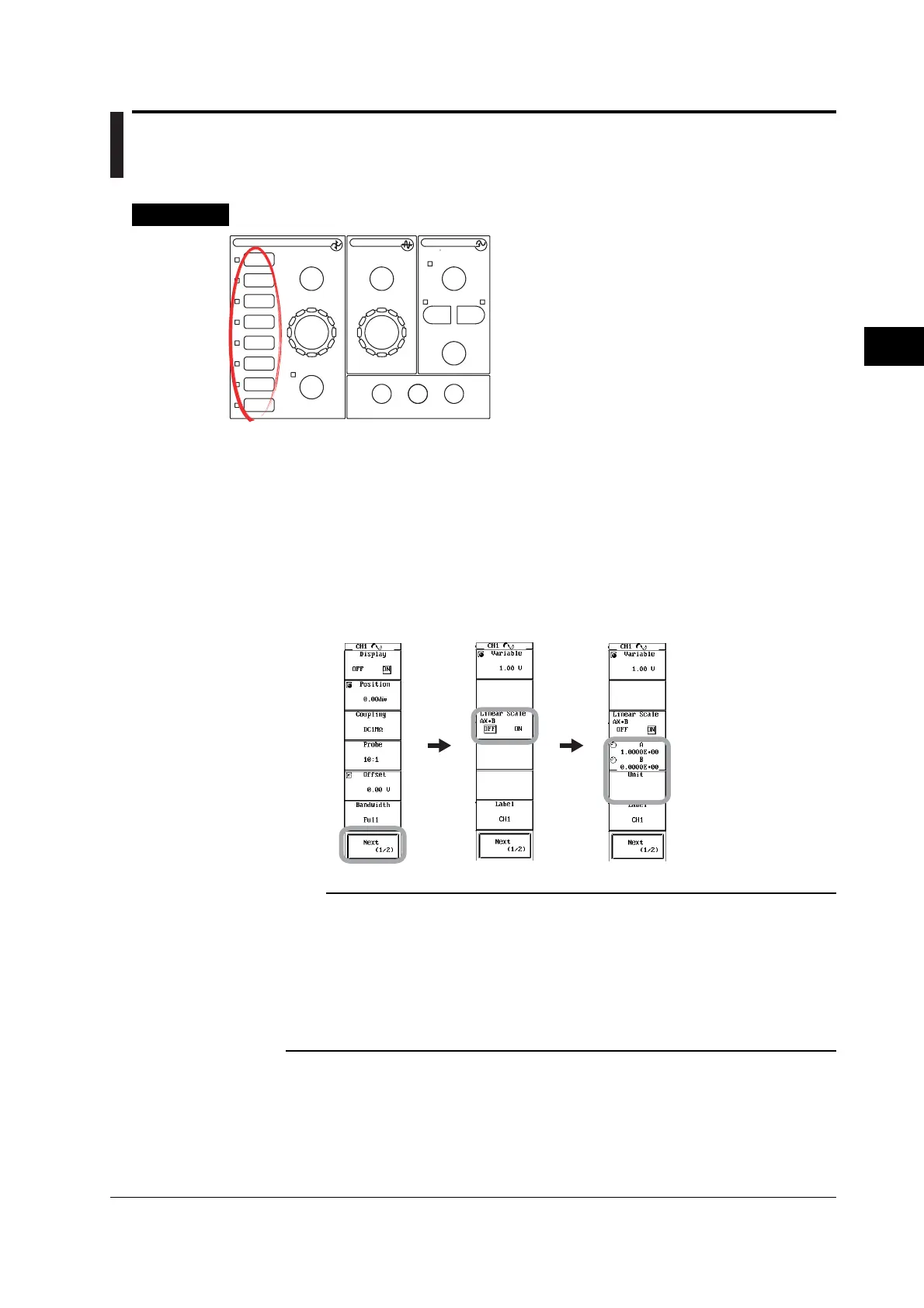

Procedure
SEARCH
PRESET
ZOOM
MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL
TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT
HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press one of the CH1 to CH8/4 keys to select the channel. The CH menu
appears.
You can select up to channel CH4 and CH8 on the DL7440 and DL7480, respectively.
2. Press the Next (1/2) soft key
3. Press the Linear Scale AX+B soft key to select ON.
4. Press the A/B soft key to set the jog shuttle control to A.
5. Turn the jog shuttle to set the A value.
6. Likewise, set the B value.
7. To attach a unit, press the Unit soft key to display the keyboard and enter the
unit name.
Note
• Linear scaling is not available for the following waveforms.
• Snapshot waveforms
• Accumulated waveforms (however, linear scaling is possible on the accumulated
waveform acquired last.)
• Linear scaling is set for each channel.
• The scaling coefficient A and offset value B that you entered are held even if you turn OFF
the linear scaling function.
• Computation is performed using the linear scaling results.
To Next Page
