4-21
IM 701450-01E
4
Common Operations

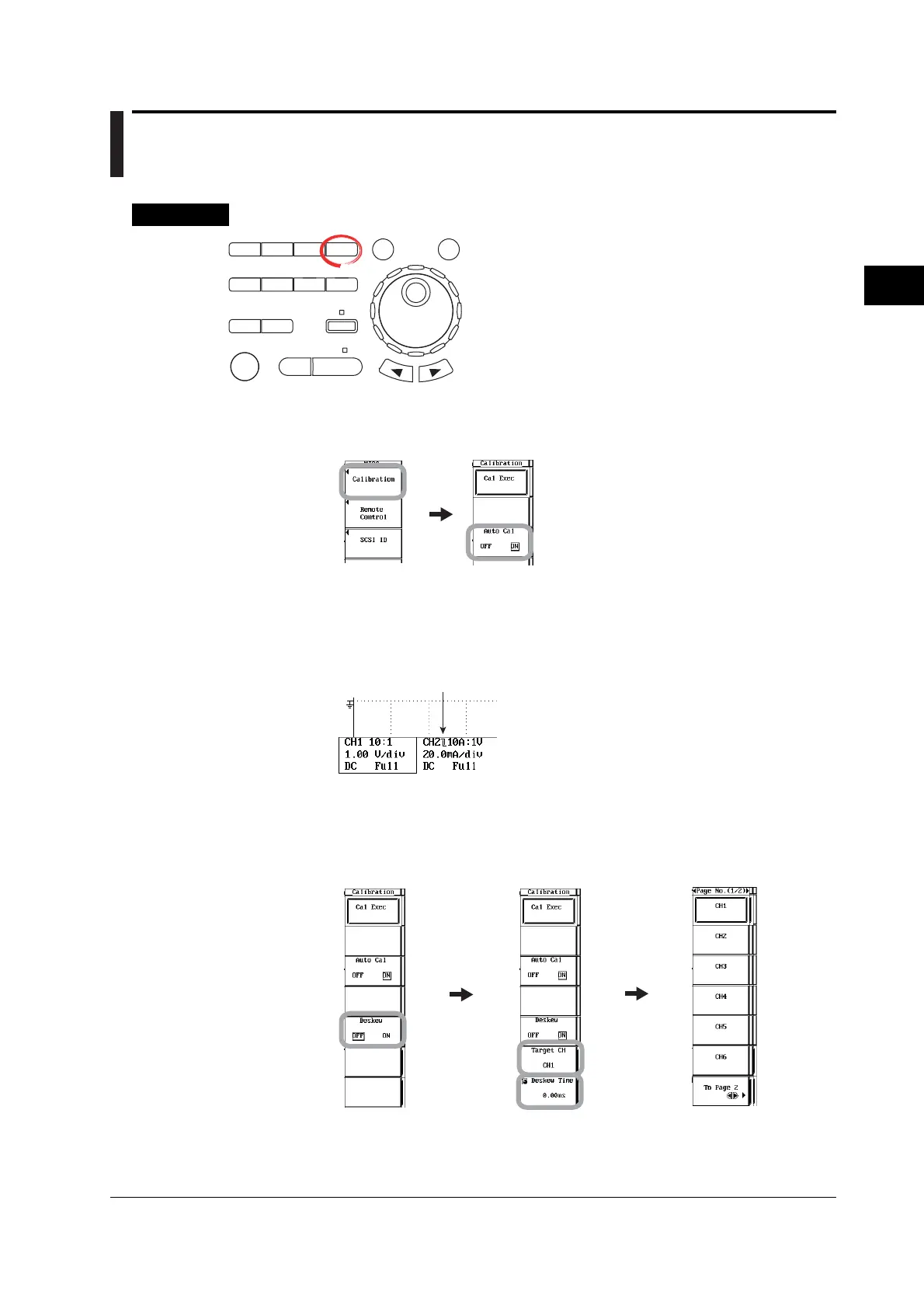

4.7 Correcting the Delay Time of the Input Signals
Procedure
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
1. Press MISC. The MISC menu appears.
2. Press the Calibration soft key. The Calibration menu appears.
3. Press the Deskew soft key to select ON or OFF.
• If you select ON, proceed to step 4.
• If you select OFF, the procedure is complete.
This mark appears when the Deskew setting is ON
and the deskew time of the selected target CH is set
to a value other than 0.00 ns
4. Press the Target CH soft key. The Target CH menu appears.
5. Press the CH1 to CH8/4, Pod A, or Pod B to select the target channel.
You can select up to channel CH4 and CH8 on the DL7440 and DL7480, respectively.
6. Turn the jog shuttle to set the Deskew Time.
When Deskew is
turned ON
Select Target CH
To Next Page
