5-11
IM 701450-01E
5
Vertical and Horizontal Axes

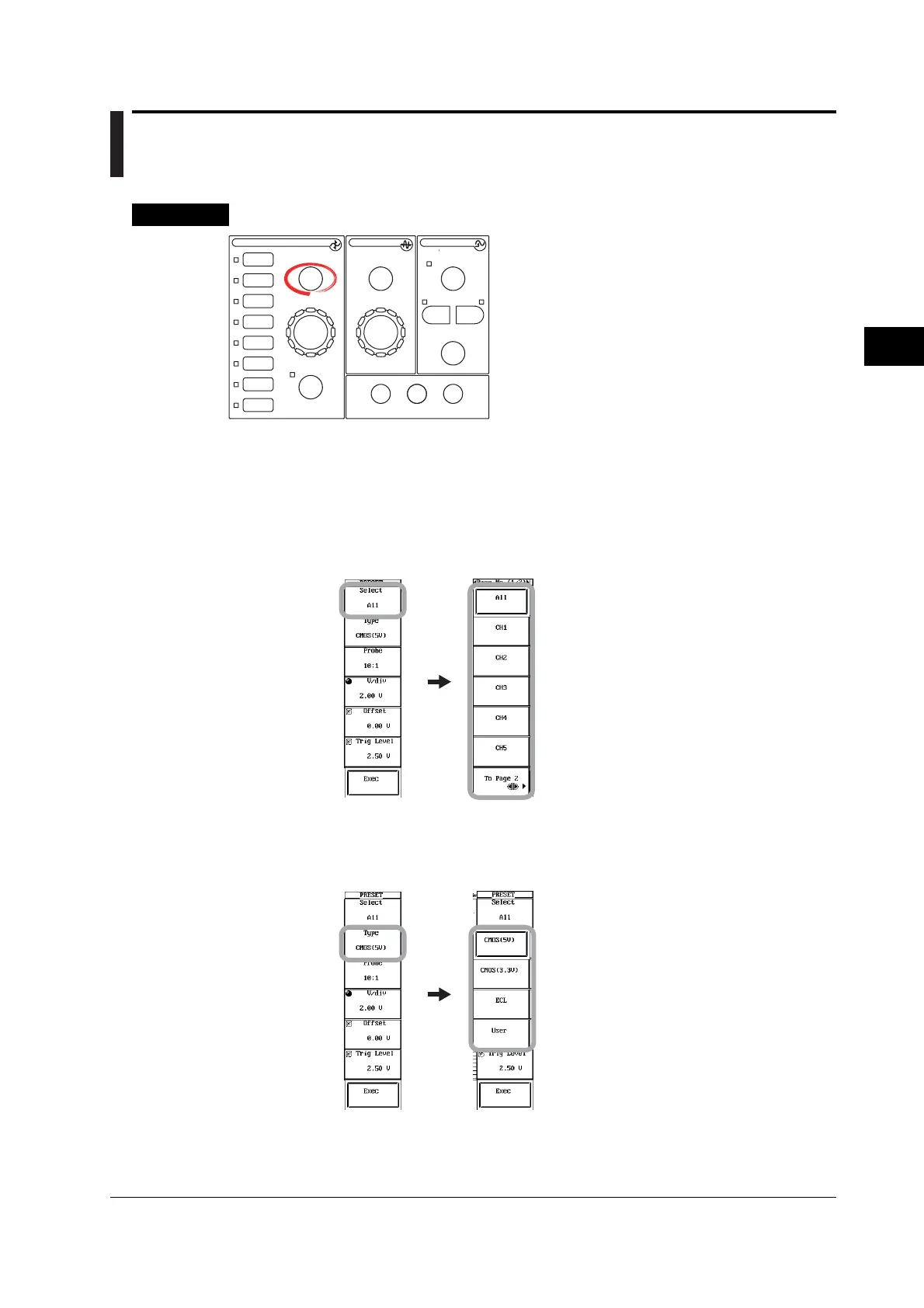

5.7 Using the Preset Function
Procedure
SEARCH
PRESET
ZOOM
MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL
TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT
HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
Selecting the Channels to Be Preset
1. Press PRESET. The PRESET menu appears.
2. Press the Select soft key. The Select menu appears.
3. Press the CH1 to CH8/4 soft key to select the channel for setting the preset.
Pressing All will select all the channels. You can select up to CH4 and CH8 on the
DL7440 and DL7480, respectively. CH6 to CH8 appear when you press the To Page 2
soft key.
Selecting the Preset Type
4. Press the Type soft key. The Type menu appears.
5. Press the CMOS(5V), CMOS(3.3V), ECL, or User soft key.
To Next Page
