10-61
IM 701450-01E
10
Analyzing and Searching Waveforms
10.8 Performing Automated Measurements of
Waveform Parameters on Dual Areas
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

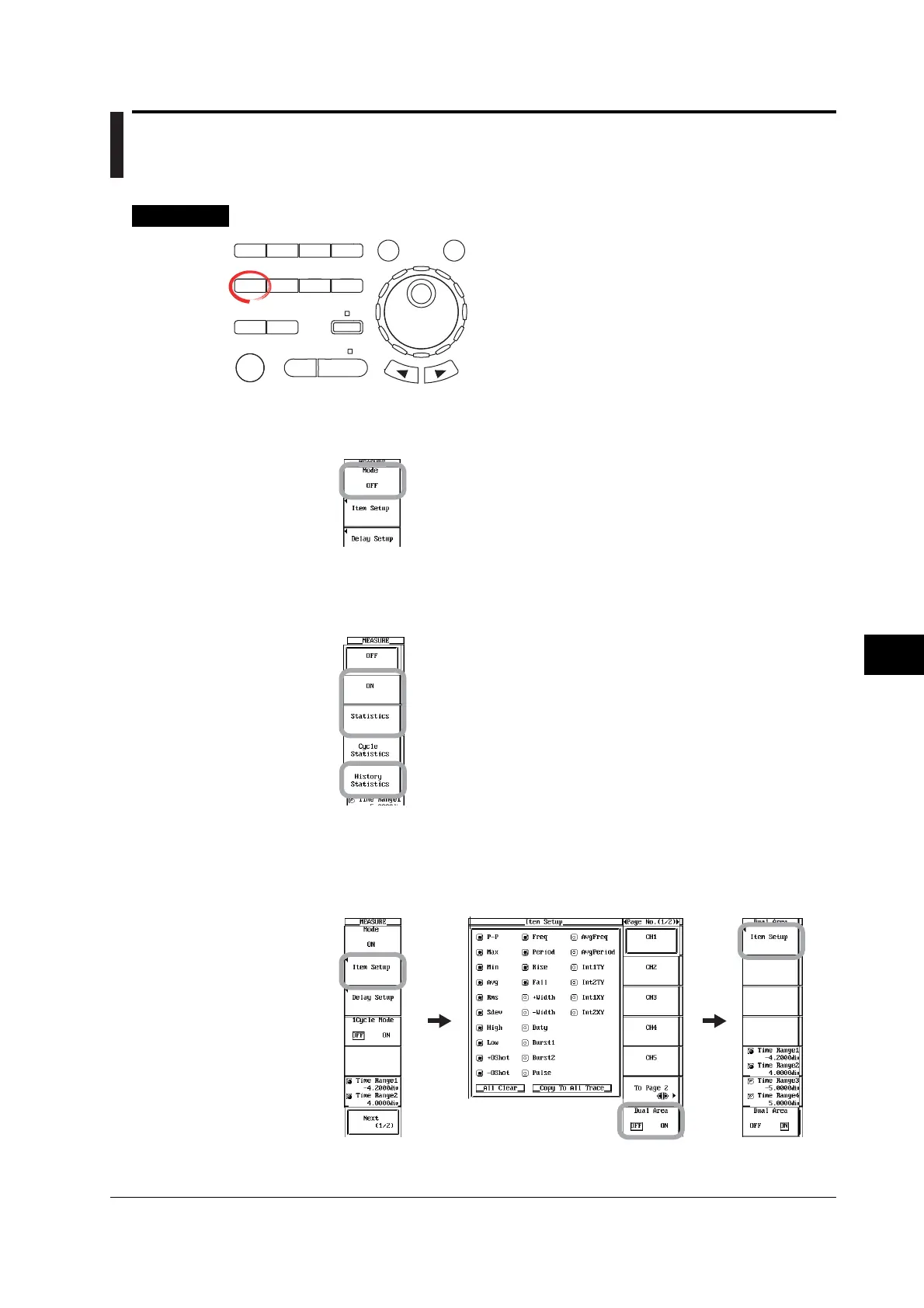

1. Press MEASURE. The MEASURE menu appears.
2. Press the Mode soft key. The Mode menu appears.
Entering the Menu for the Automated Measurements of Waveform Parameters on
Dual Areas
3. Press the ON, Statistics, or History Statistics soft key.
4. Press the Item Setup soft key. The Item Setup menu and Item Setup dialog
box appear.
5. Press the Dual Area soft key to select ON. The Dual Area menu appears.
6. Press the Item Setup soft key. The Item Setup dialog box opens.
To Next Page
