Triggers
Chapter 6 Triggers
6.1 Selecting the Trigger Mode
<For a description of this function, refer to page 2-12.>
Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.

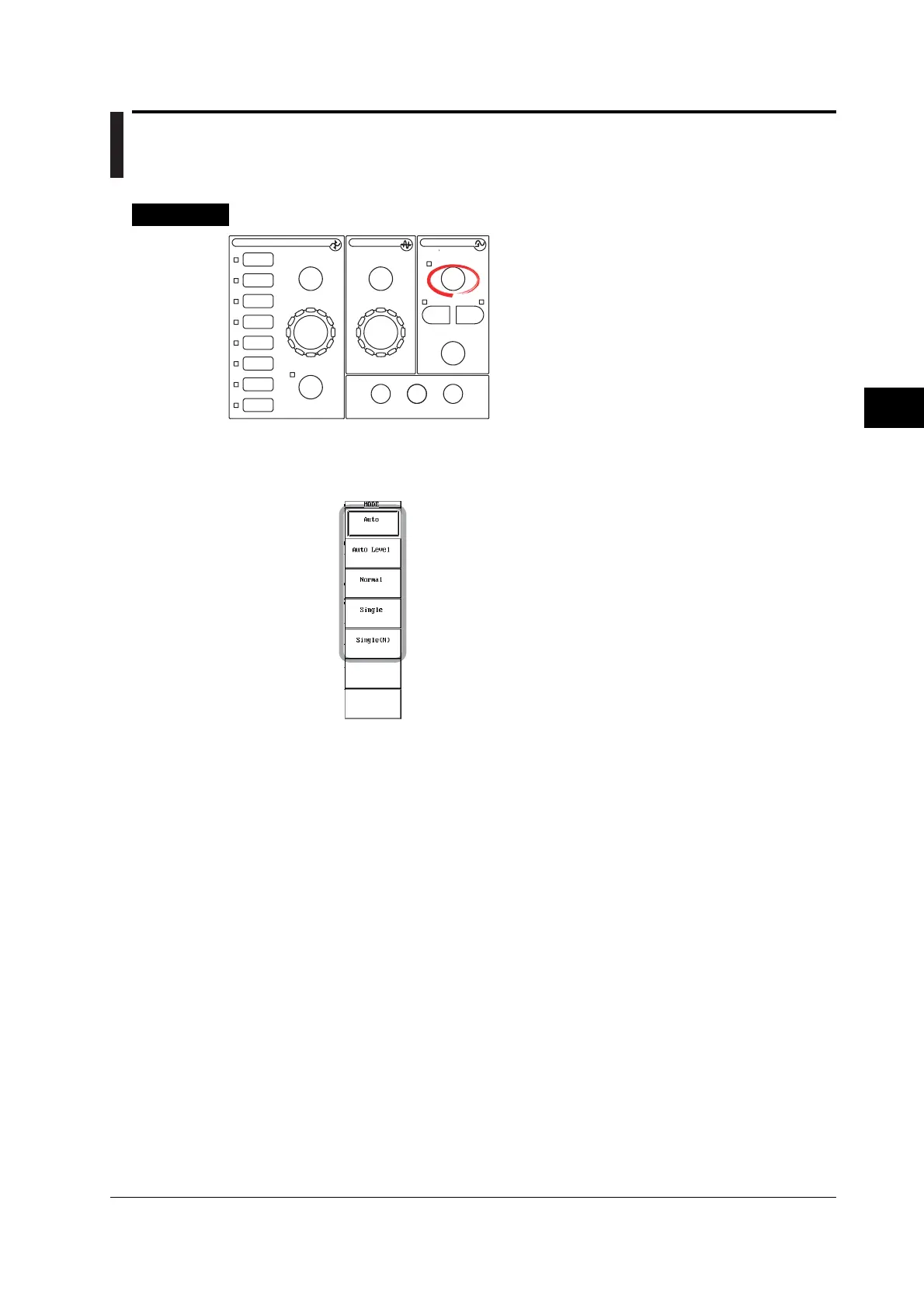

1. Press MODE. The MODE menu appears.
2. Press the soft key corresponding to the desired mode.
For the procedure of selecting Single(N), see section 7.6.
