8.3 Accumulating Waveforms
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.

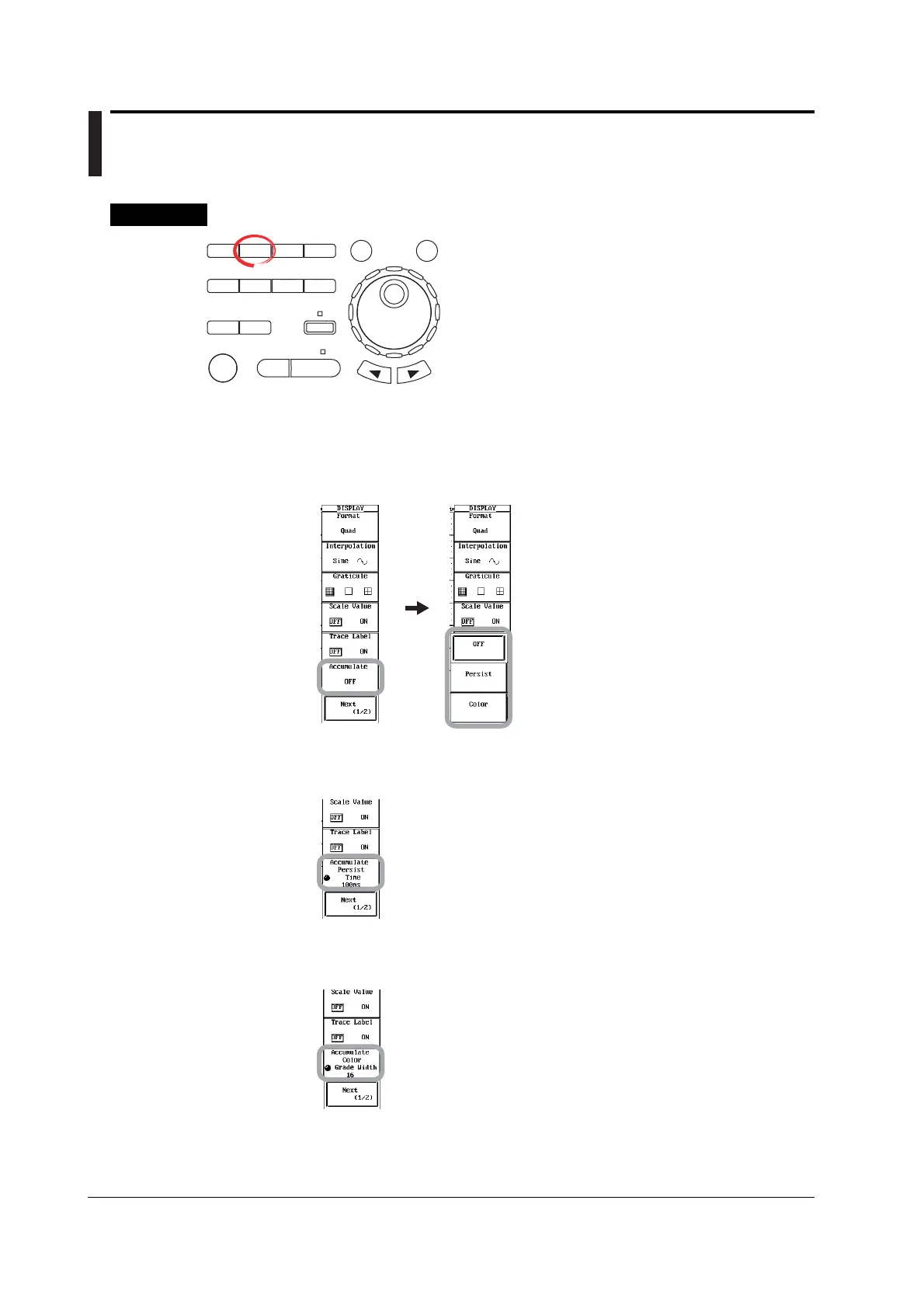

Setting the Accumulate Mode
1. Press DISPLAY. The DISPLAY menu appears.
2. Press the Accumulate soft key. The Accumulate menu appears.
3. Press the OFF, Persist, or Color soft key to select the accumulate mode.
Setting the Accumulation Time (When Persist Mode Is Selected)
4. Turn the jog shuttle to set the accumulation time.
Setting the Grade Width (When Color Mode Is Selected)
4. Turn the jog shuttle to set the grade width.
