YOKOGAWA DL7440 User Manual

6-44 IM 701450-01E

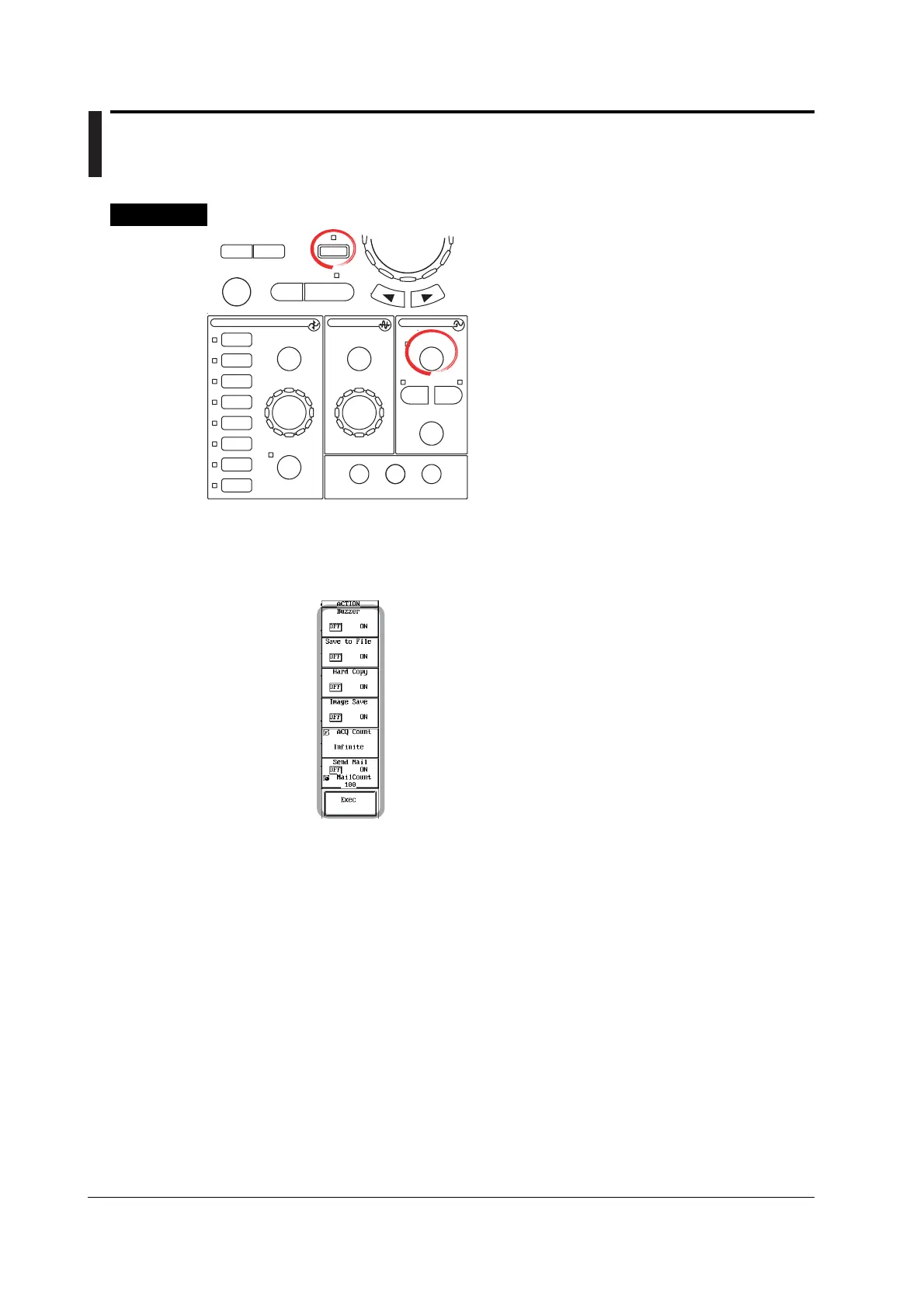

6.16 Setting the Action-on-Trigger
Procedure
SEARCH
MENU MENU
SHIFT
HISTORY
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
PRINT
ACQ
V/DIV TIME/DIV
START/STOP
IMAGE SAVE
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press SHIFT+MODE (ACTION). The ACTION menu appears.
2. Press the soft key corresponding to the action to be enabled and select ON.
If Send Mail is turned ON, use the jog shuttle to set the mail transmission count
(MailCount).
Setting the Action Count
3. Turn the jog shuttle to set the action count (ACQ Count).
Pressing RESET sets the count to Infinite.
Executing/Aborting Action-on-Trigger
4. Press the Exec soft key. The waveform acquisition starts and action-on-trigger
is executed. The Exec soft key changes to Abort. To abort action-on-trigger,
press the Abort soft key or START/STOP. The waveform acquisition stops and
action-on-trigger is aborted.
