Waveform Computation
9.8 Shifting the Phase
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

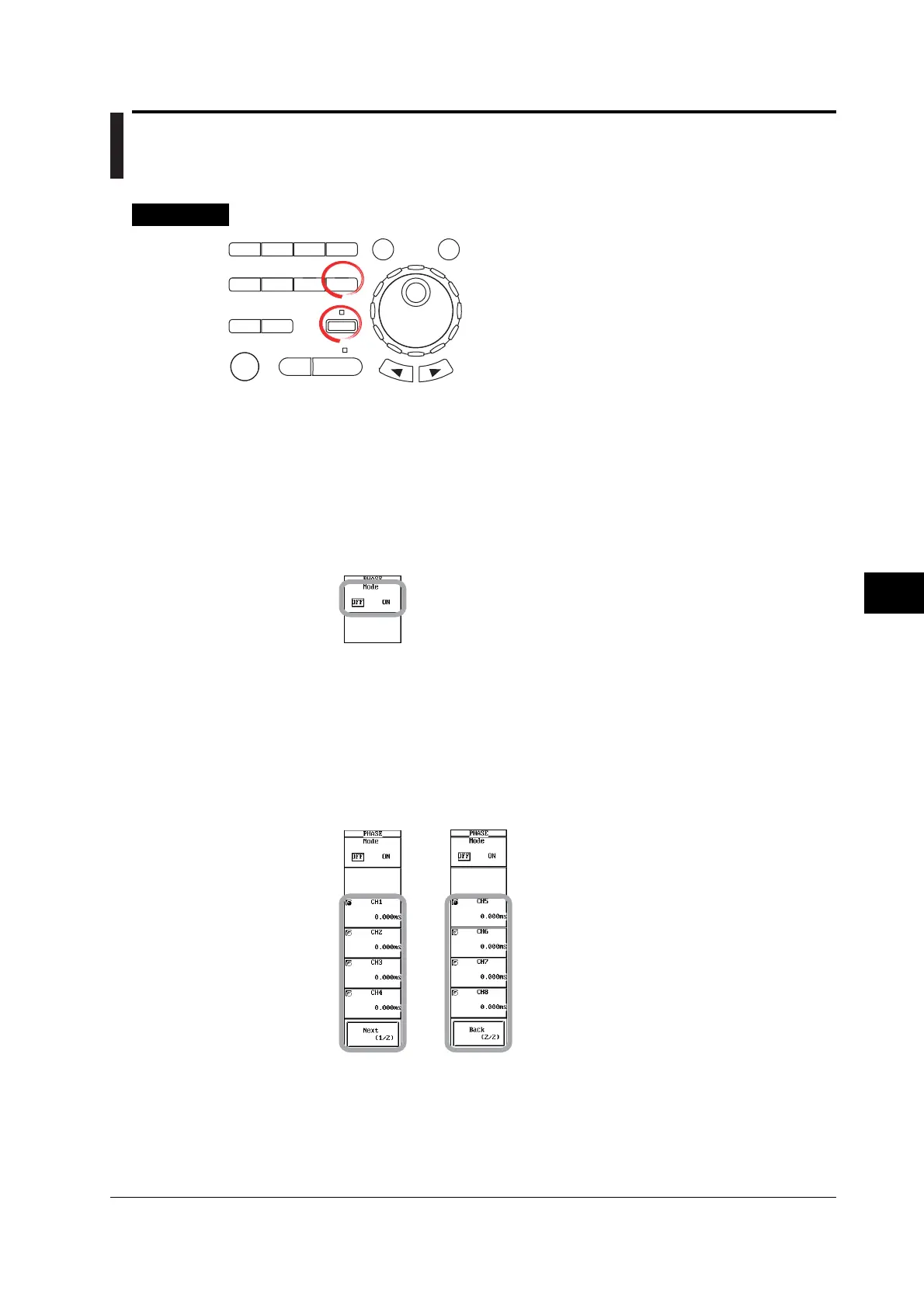

1. Press SHIFT+MATH(Phase). The PHASE menu appears.
Turning ON/OFF the Phase-Shifted Waveforms
2. Press the Mode soft key to select ON or OFF.
• When ON is selected, the phase of the displayed waveform is shifted. The amount of
shift is specified in step 3 and subsequent steps.
• When OFF is selected, the phase of the displayed waveform is not shifted.
Setting the Amount of Shift
3. Press one of the CH1 to CH8(4) soft keys to select the channel on which the
amount of shift is to be specified.
You can select up to CH4 and CH8 on the DL7440 and DL7480, respectively. CH5 to
CH8 appear when you press the Next (1/2) soft key.
4. Use jog shuttle & SELECT to set the amount of shift.
On the DL7480, CH5 and CH8 can
be selected on the next page menu.
To Next Page
