Saving and Loading Data
12.11 Saving the Detailed Analysis List of SPI
Signals
CAUTION
Do not remove the storage medium (disk) or turn OFF the power when the
access indicator or icon of the storage medium is blinking. Doing so can
damage the storage medium or destroy the data on the medium.
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

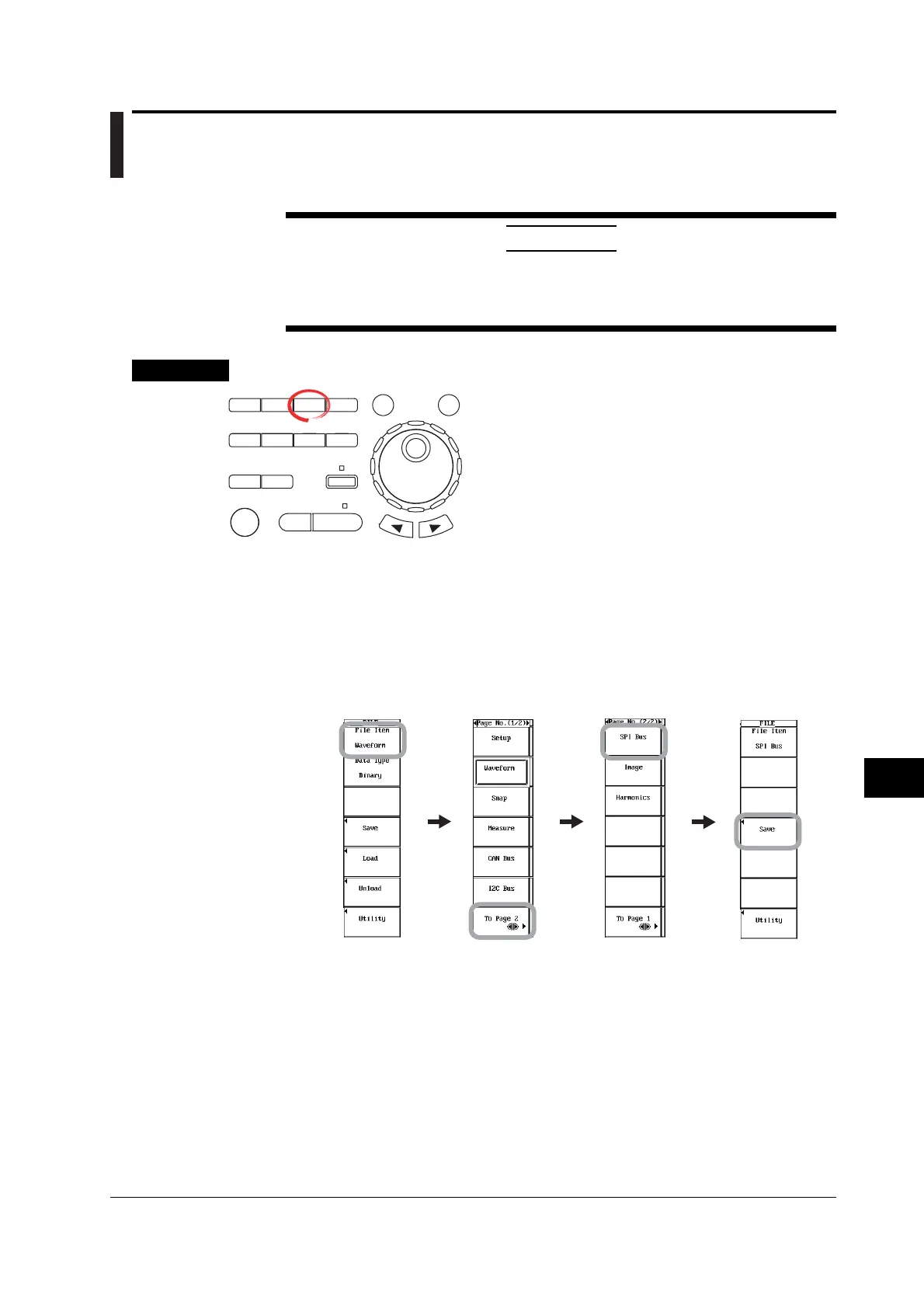

1. Press FILE. The FILE menu appears.
2. Press the File Item soft key. The File Item menu appears.
3. Press the To Page 2 soft key.
4. Press the SPI Bus soft key.
Depending on the model, the SPI Bus item may appear under the File Item menu
(Page No. (1/2)) without having to press the Top Page 2 soft key.
5. Press the Save soft key. The Save menu appears.
Selecting the Save Destination Medium/Directory
6. The procedure is the same as steps 13 to 15 on page 12-22.
Setting the File Name and Comment
7. The procedure is the same as steps 16 to 19 on page 12-22.
