7.5 Setting the Acquisition Mode
<For a description of this function, refer to page 2-15.>
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
Setting the Acquisition Mode

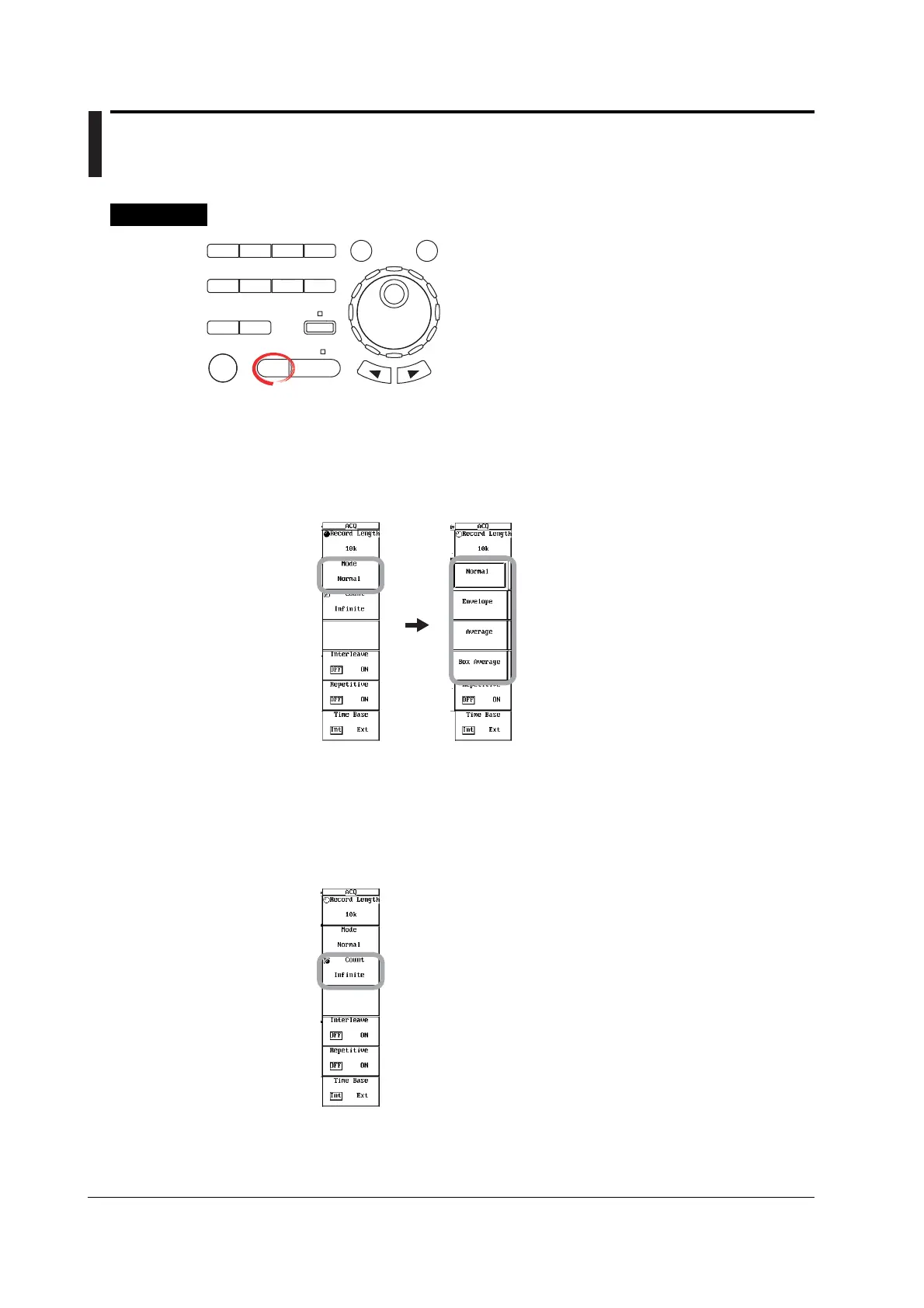

1. Press ACQ. The ACQ menu appears.
2. Press the Mode soft key. The Mode menu appears.
3. Press a soft key to select the acquisition mode.
You may not be able to select some modes depending on the trigger mode setting.
Setting the Acquisition Count
4. Press the Count soft key.
You cannot set the acquisition count when the trigger mode is Single or Single (N).
5. Turn the jog shuttle to set the acquisition count.
• Pressing RESET resets the count to Infinite.
• If the acquisition mode is Average and you set Count to Infinite, proceed to step 6.
