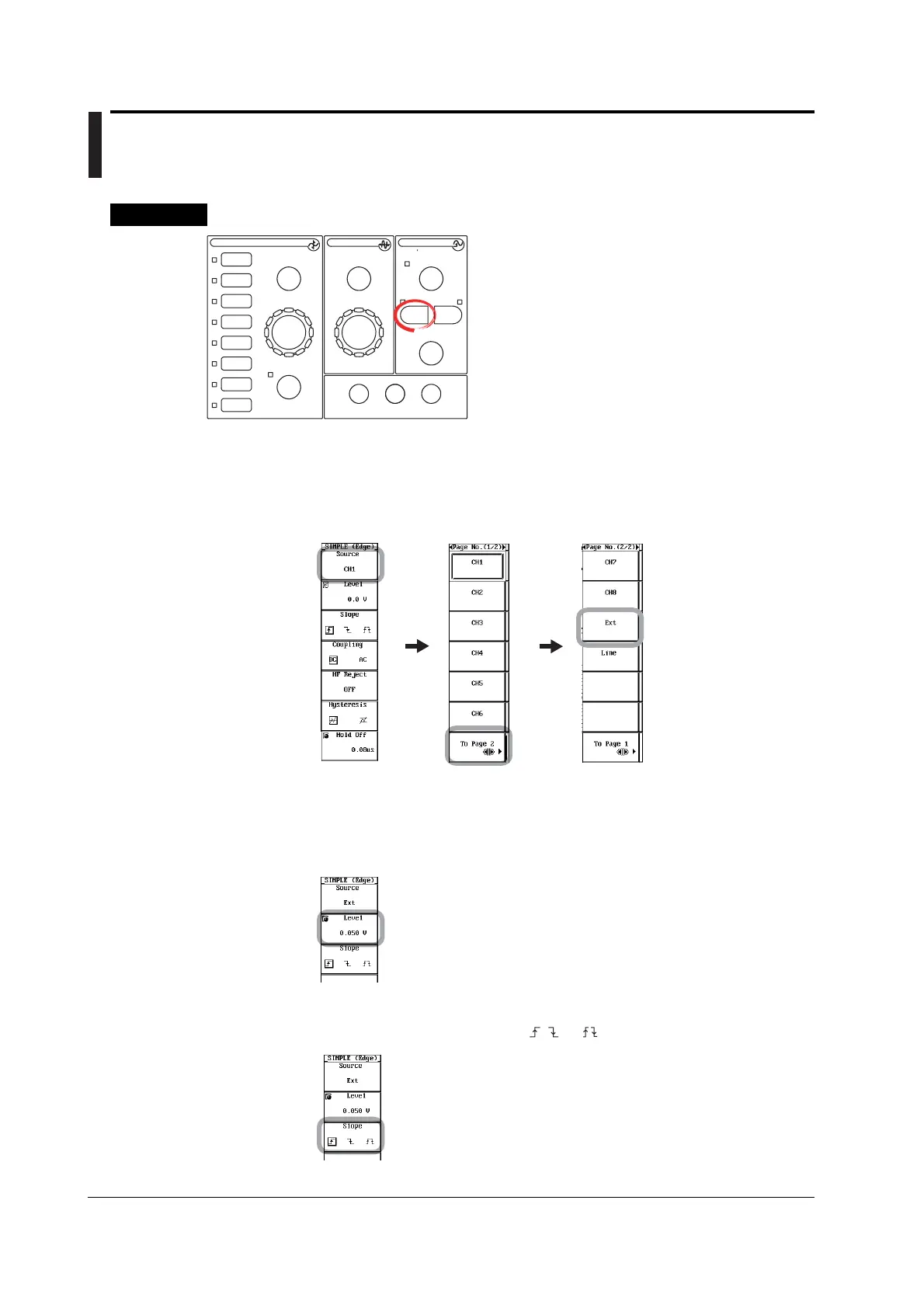

6.6 Setting the External Trigger (SIMPLE)
Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
Setting the Trigger Source
1. Press SIMPLE. The SIMPLE (Edge) menu appears.
2. Press the Source soft key. The Source menu appears.
3. On the DL7480, press the To Page 2 soft key.
4. Press the Ext soft key.
Setting the Trigger Level
4. Press the Level soft key.
5. Turn the jog shuttle to set the trigger level.
Pressing RESET resets the trigger level to 0 V.
Setting the Trigger Slope
6. Press the Slope soft key to select , , or .
