7-3
IM 701450-01E
7
Waveform Acquisition

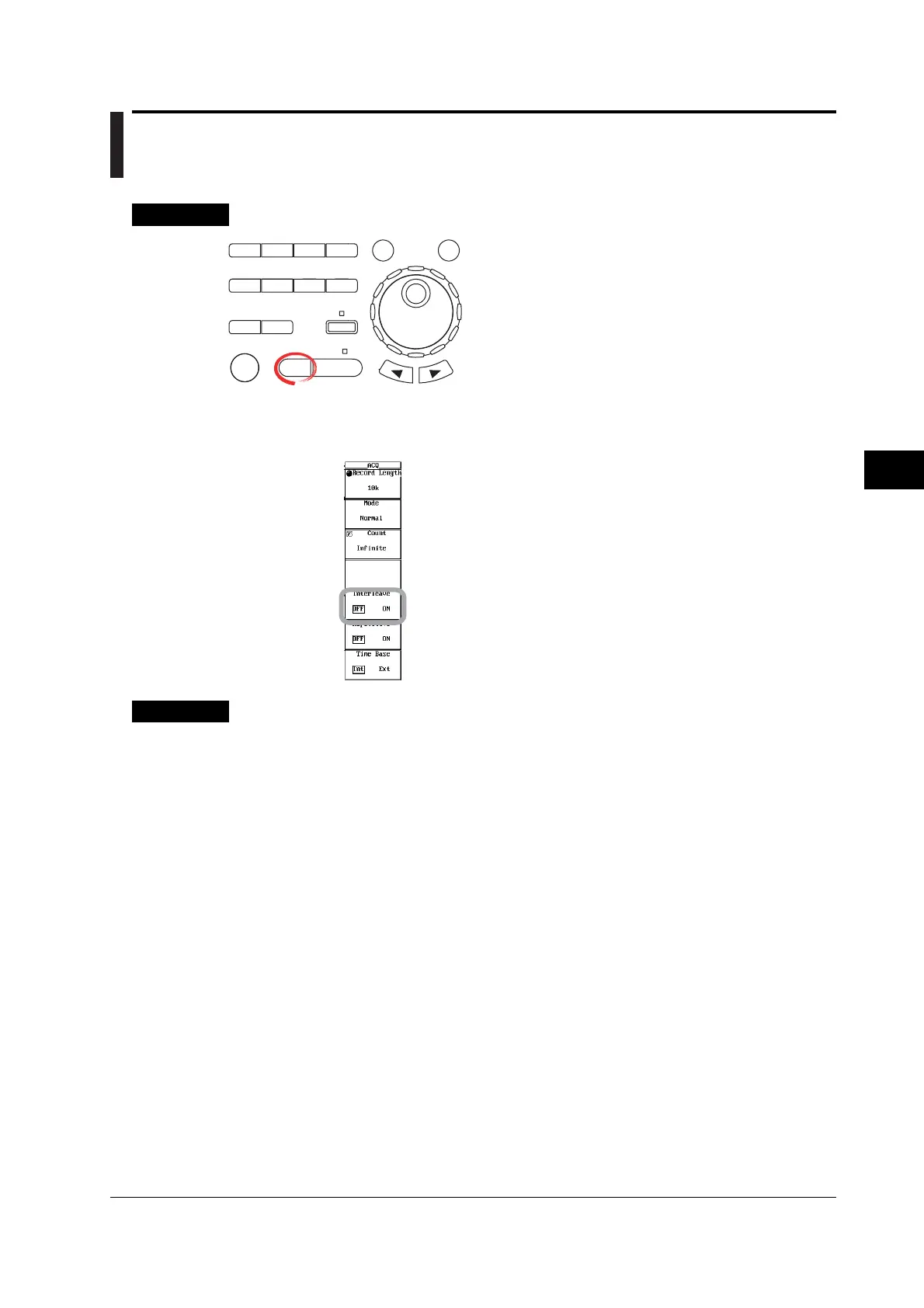

7.3 Using Interleave Mode
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press ACQ. The ACQ menu appears.
2. Press the Interleave soft key to select ON or OFF.
Explanation
When interleave mode is turned ON, the number of channels that can be used is limited,
but history memory, sequential store count, and record length can be set to twice the
normal values. In addition, in realtime sampling mode, sampling becomes possible at a
rate of up to 2 GS/s. The channels that cannot be used when interleave mode is turned
ON are CH2, CH4, CH6, and CH8 (CH2 and CH4 on the DL7440). If the optional logic
input is available, POD B cannot be used. For a description of the limitations of the
record length, sample rate, and other items when interleave mode is turned ON, see
appendix 1.
To Next Page
