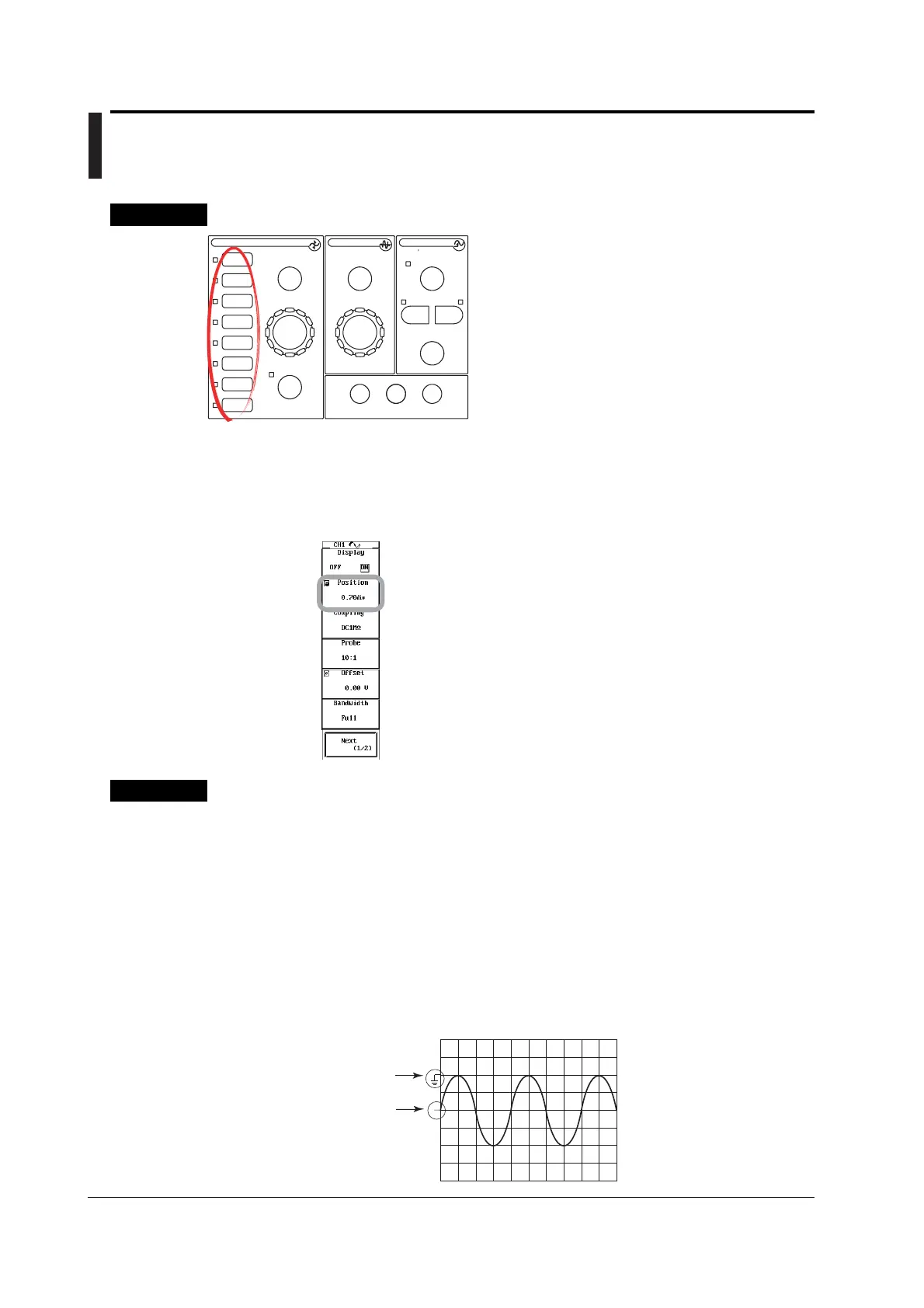

5.3 Setting the Vertical Position of the Waveform
<For a description of this function, refer to page 2-2.>
Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press one of the CH1 to CH8/4 keys to select the channel. The CH menu
appears.
You can select up to channel CH4 and CH8 on the DL7440 and DL7480, respectively.
2. Press the Position soft key.
3. Turn the jog shuttle to set the vertical position.
Explanation
Range of Movement
The vertical position can be moved within a range of ± 4 divisions from the center of the
waveform display frame.
Resolution
0.01 divisions
Confirming the Vertical Position
For input waveforms and computed waveforms, the ground level and vertical position are
marked to the left of the waveform display frame.
500 mV/div, Offset: –1 V, Offset Cancel: OFF, Position: 0 div
Ground level mark
Vertical position mark
