Triggers
6.5 Setting the Edge Trigger (SIMPLE)
<For a description of this function, refer to page 2-8.>

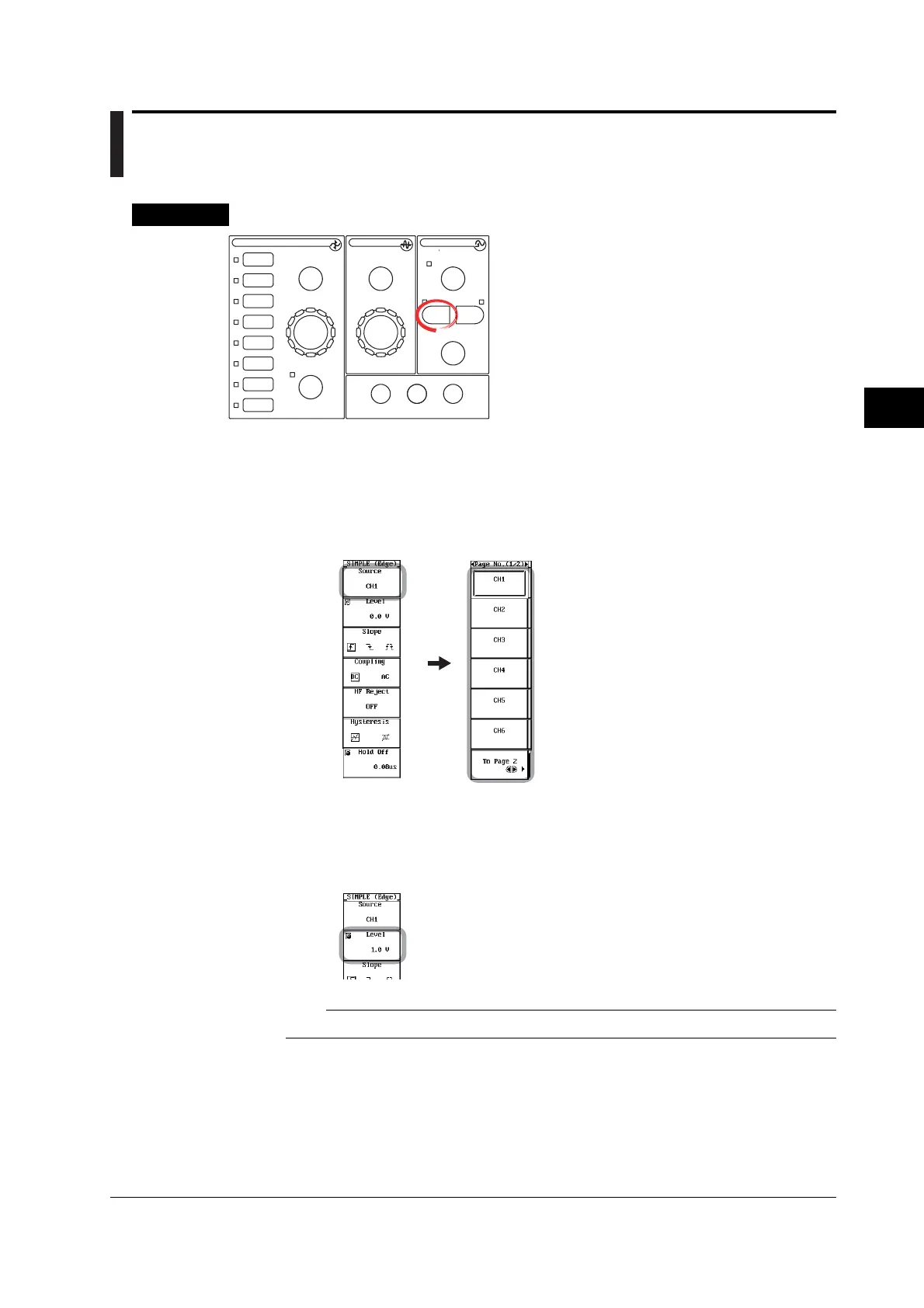

Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
Setting the Trigger Source
1. Press SIMPLE. The SIMPLE (Edge) menu appears.
2. Press the Source soft key. The Source menu appears.
3. Press the soft key corresponding to the desired trigger source.
• You can select up to channel CH4 and CH8 on the DL7440 and DL7480, respectively.
• To set CH7 and CH8, press the To Page 2 soft key to display the page 2 menu.
Setting the Trigger Level
4. Press the Level soft key.
5. Turn the jog shuttle to set the trigger level.
Pressing RESET resets the trigger level to the current offset voltage.
Note
The trigger level setting applies to both simple and enhanced triggers.
