15-4 IM 701450-01E
15.4 Setting the Screen Color and Intensity
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

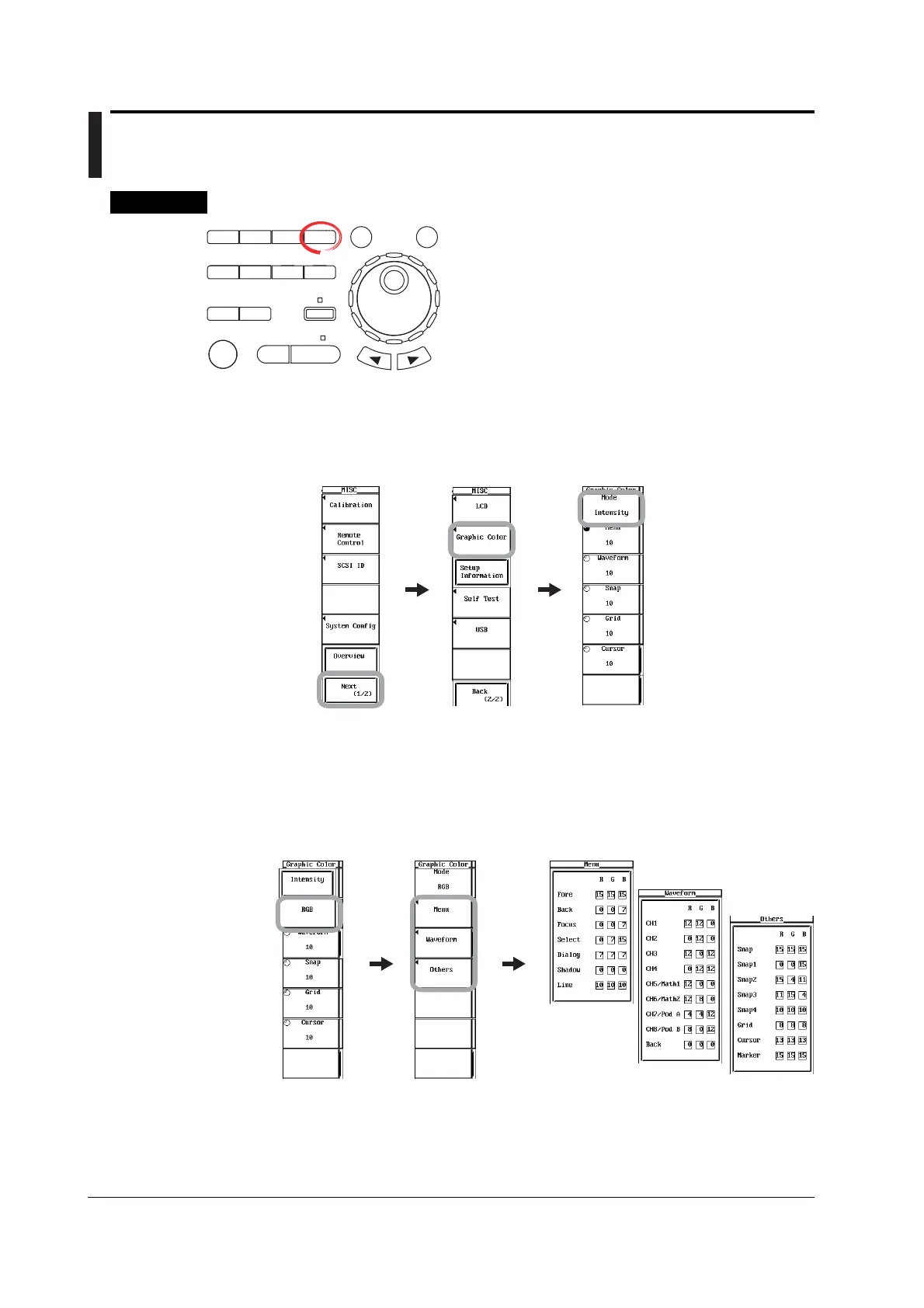

1. Press MISC. The MISC menu appears.
2. Press the Next (1/2) soft key The page 2 menu appears.
3. Press the Graphic Color soft key. The Graphic Color menu appears.
4. Press the Mode soft key. The Mode menu appears.
Setting the Display Color
5. Press the RGB soft key. The RGB menu appears.
6. Press the Menu soft key. The Menu dialog box opens.
7. Use jog shuttle & SELECT to set the menu screen color.
8. Press ESC. The Menu dialog box closes.
9. Likewise, set the colors for Waveform and Other.
