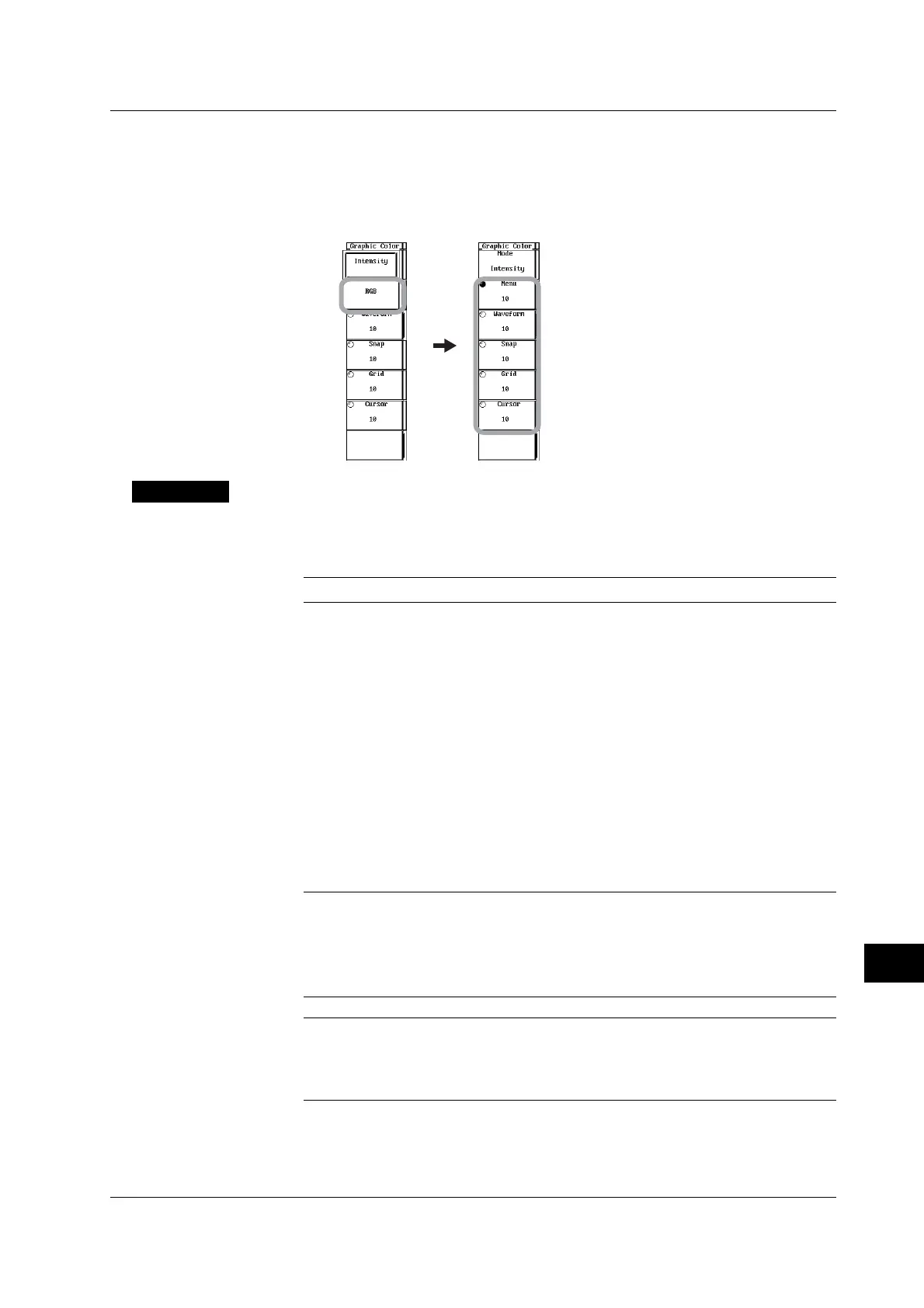

Setting the Intensity
5. Press the Intensity soft key. The Intensity menu appears.
6. Press the Menu soft key.
7. Turn the jog shuttle to set the intensity of the menu screen.
8. Likewise, set the intensity of Waveform, Snap, Grid, and Cursor.
Explanation
Display Color
You can set the screen color using a ratio of red (R), green (G), and blue (B) for each
item. The selectable range is 0 to 15 levels, and the resolution is 1 level.
Item Target
Menu
Fore Selected menu item
Back Background color
Focus Selection cursor
Select Selected menu
Dialog Dialog box
Shadow Background color of the selected menu
Line Menu screen lines
Waveform
CH1 to Pod B Waveform color
Back Background color of the waveform display area
Other
Snap Snapshot waveforms
Snap1 to 4 Loaded snapshot waveforms
Grid Graticule
Cursor Cursor
Maker Markers
Intensity
You can set the intensity in the range of 1 to 15 levels for each item. The selectable
range is 1 to 15 levels, and the resolution is 1 level.
Item Target
Menu Menu
Waveform Waveforms
Snap Snapshot waveforms
Grid Graticule
Cursor Cursor
