Waveform Display and Information Display
8.8 Turning ON/OFF the Scale Display
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.

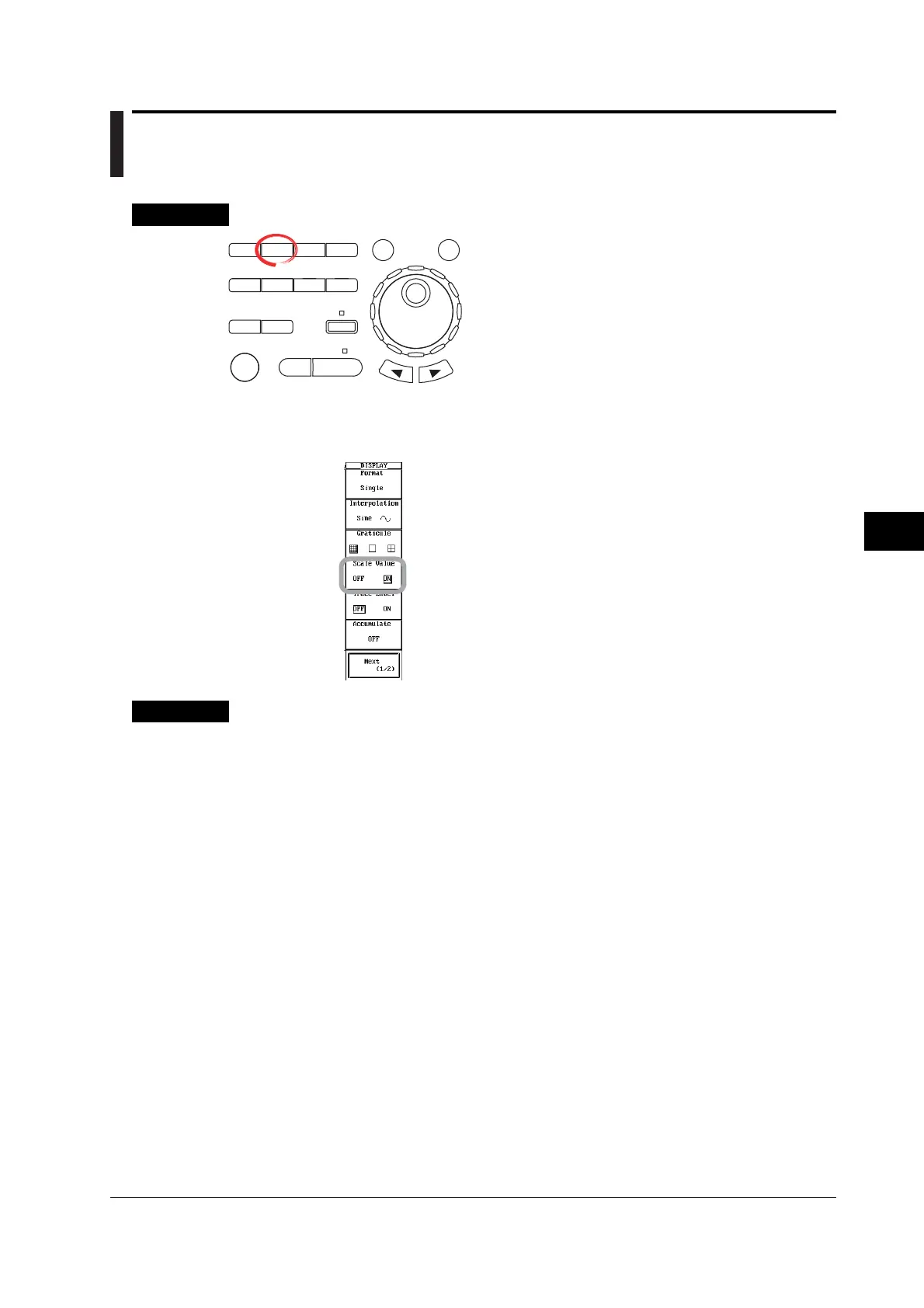

1. Press DISPLAY. The DISPLAY menu appears.
2. Press the Scale Value soft key to select ON or OFF.
Explanation
The display of upper and lower limits of the vertical and horizontal axis of each channel
can be turned ON/OFF. For display examples, see page 1-6.
