7-2 IM 701450-01E
7.2 Setting the Record Length
<For a description of this function, refer to page 2-15.>

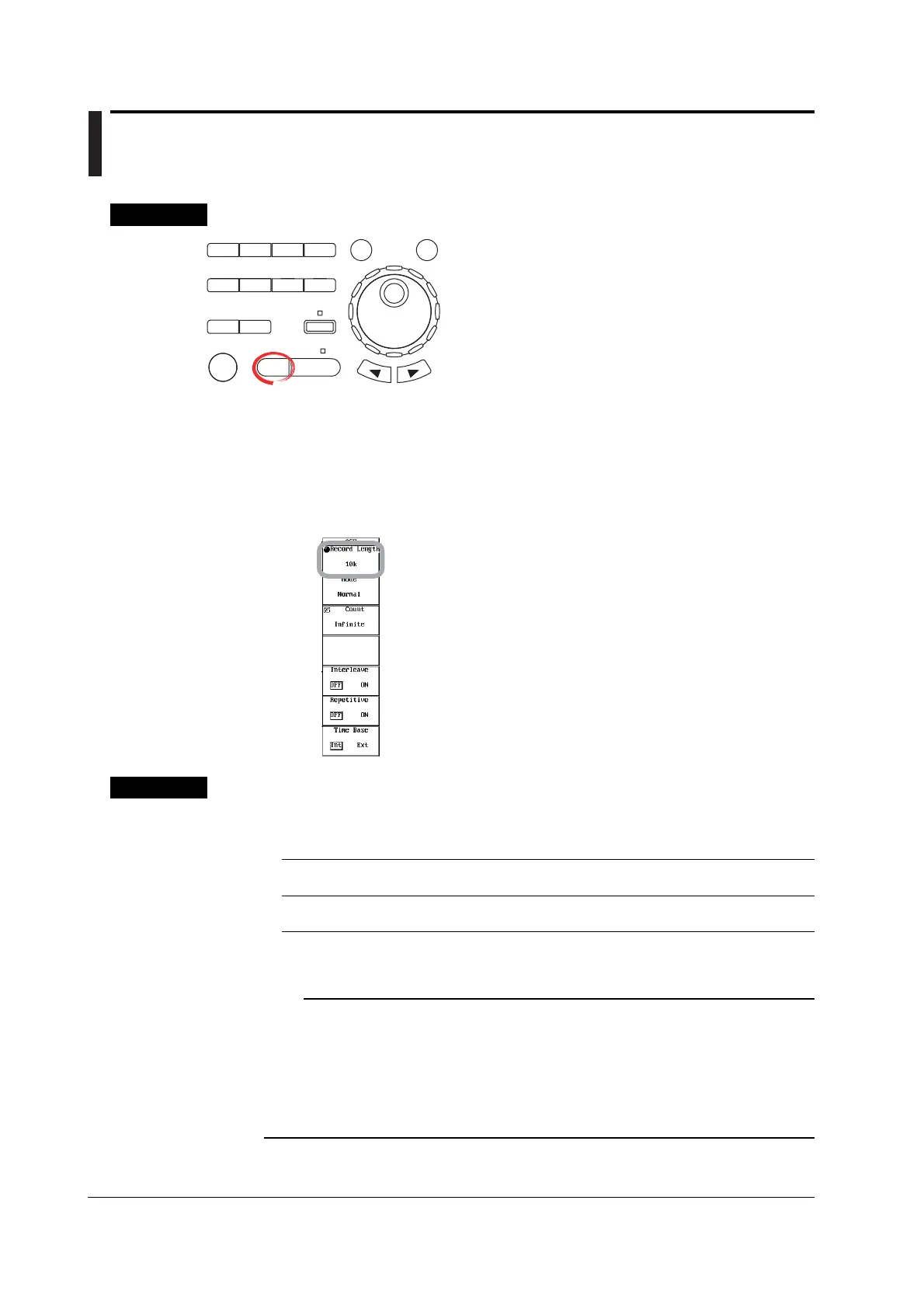

Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press ACQ. The ACQ menu appears.
2. Press the Record Length soft key.
3. Turn the jog shuttle to select the record length from 1k to 8M (2M).
• If interleave mode is ON, you can select the record length in the range of 1k to 16M
(4M).
• The selectable maximum record length varies depending on the model.
Explanation
You can set the record length (the number of data points) to be stored to the acquisition
memory.
The selectable maximum record length varies depending on the model.
16 MW memory model (701460 and 701480)
1k, 10k, 50k, 100k, 250k, 500k, 1M, 2M, 4M, 8M (, or 16M)
4 MW memory model (701450 and 701470)
1k, 10k, 50k, 100k, 250k, 500k, 1M, 2M (, or 4M)
* The value inside the parentheses is selectable only when interleave mode is ON (see the
next section).
Note
• The sample rate and display record length vary depending on the T/div setting. For details,
see appendix 1.
• The maximum record length for box average is half the record length of each model indicated
above.
• Waveform computation cannot be performed at the following record lengths.
When interleave mode is OFF: 8 MW
When interleave mode is ON: 16 MW
To Next Page
