7-10 IM 701450-01E

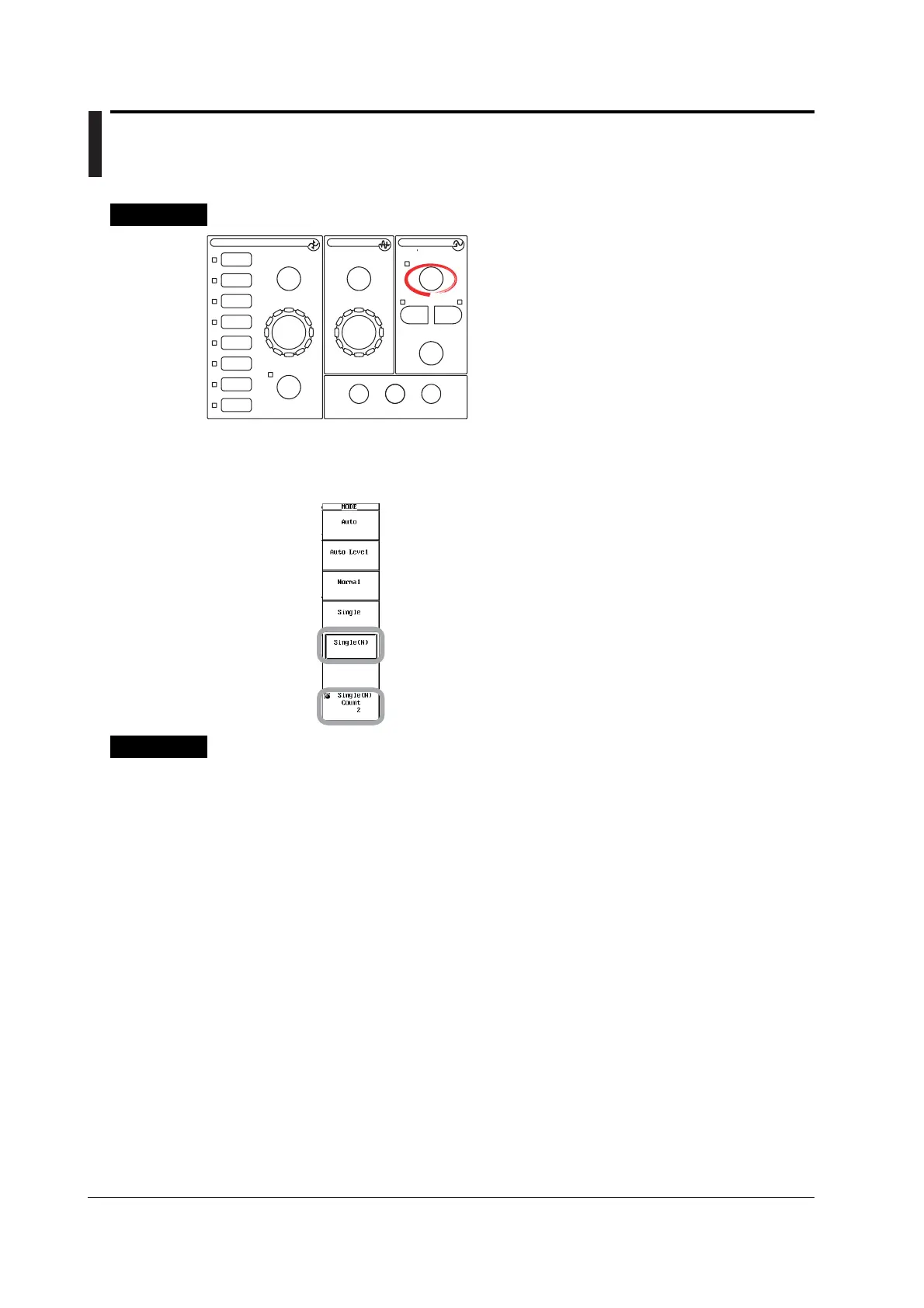

7.6 Performing Sequential Store (SINGLE(N) Mode)
<For a description of this function, refer to page 2-17.>
Procedure
SEARCH
PRESET
ZOOM
MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL
TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT
HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press MODE. The MODE menu appears.
2. Press the Single(N) soft key to set the trigger mode to Single(N).
3. Use the jog shuttle to set Single(N) Count.
Explanation
This setting is for using the sequential store (SINGLE (N) mode) function. The
sequential store function sequentially acquires waveforms the specified number of times
when the trigger conditions are met and displays the waveforms after acquisition stops.
In sequential store (SINGLE (N) mode), the interval for acquiring waveforms is minimized
by not performing other processes such as waveform display until the acquisition of the
specified number of waveforms is complete.
To Next Page
