13-8 IM 701450-01E
13.3 Saving and Loading Waveform/Setup/Image
Data on a Network Drive (FTP Client Function)

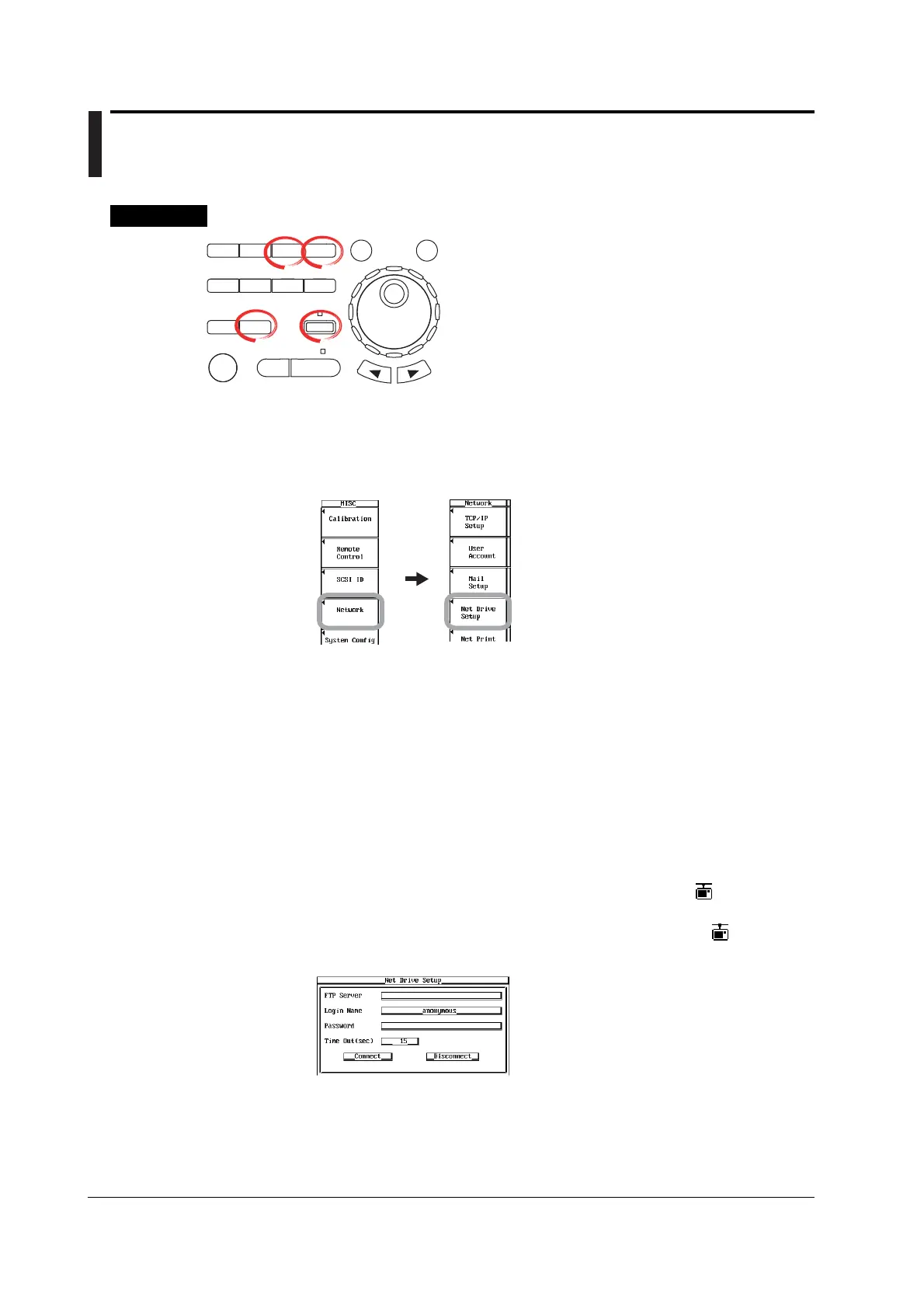

Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
Setting the Network Drive
1. Press MISC. The MISC menu appears.
2. Press the Network soft key. The Network menu appears.
3. Press the Net Drive Setup soft key. The Net Drive Setup dialog box opens.
4. Use jog shuttle & SELECT to enter the FTP Server (IP address). If you are
using DNS, you can specify the server by name.
5. Use jog shuttle & SELECT to enter the Login Name using up to 15 characters.
6. Use jog shuttle & SELECT to enter the Password (corresponding to the Login
Name) using up to 15 characters.
If Login Name is set to anonymous in step 5, you do not have to enter the password.
7. Use jog shuttle & SELECT to set Time Out. The selectable range is 1 to 3600
(s).
Connecting to or Disconnecting from the Network Drive
8. Turn the jog shuttle to move the cursor to Connect and press SELECT to
establish a connection. When the connection is established, is displayed at
the upper right corner of the screen. Use the jog shuttle to move the cursor to
Disconnect, then press SELECT to close the connection. The
displayed at
the upper right corner of the screen disappears.
To Next Page
