YOKOGAWA DL7440 User Manual

10-15
IM 701450-01E
10
Analyzing and Searching Waveforms

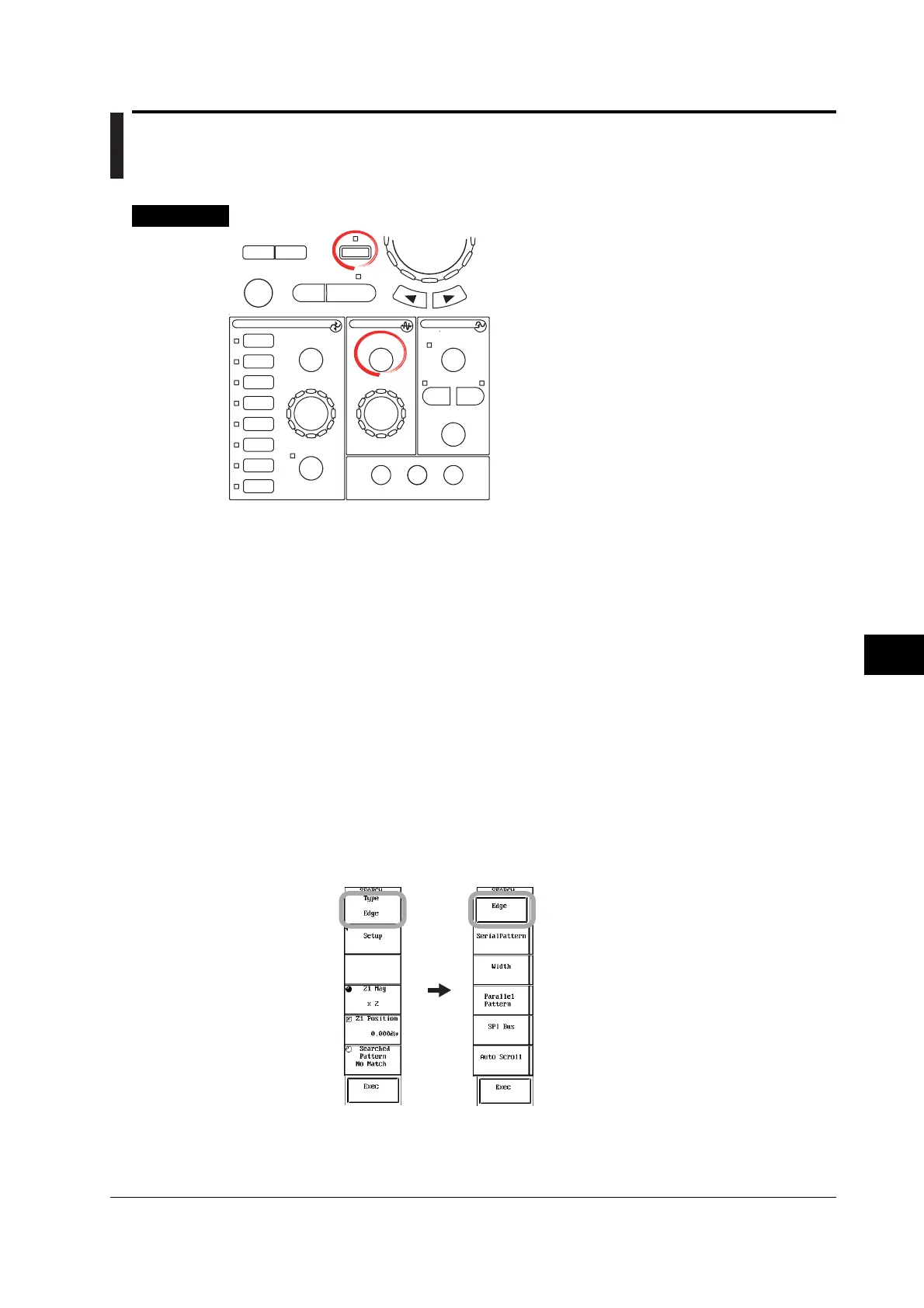

10.4 Searching Waveforms Using the Search and
Zoom Function
<For a description of this function, refer to page 2-26.>
Procedure
SEARCH
MENU MENU
SHIFT
HISTORY
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
PRINT
ACQ
V/DIV TIME/DIV
START/STOP
IMAGE SAVE
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
When waveform acquisition is stopped, you can search the displayed waveforms (within
the display record length, see appendix 1) and display the waveforms that match the
search conditions expanded on the screen. The following six search types are available.
For the setup procedures of each type, see the pages indicated below.
• Edge -> Page 10-15
• Serial pattern -> Page 10-18
• Parallel pattern -> Page 10-20
• Pulse width -> Page 10-22
• Auto scroll -> Page 10-23
• SPI -> Page 10-76 (section 10.11)
Edge Search
1. Press SHIFT+ZOOM (SEARCH). The SEARCH menu appears.
Selecting the Edge Search Type
2. Press the Type soft key. The Type menu appears.
3. Press the Edge soft key.
