17-12
IM 701450-01E
17.13

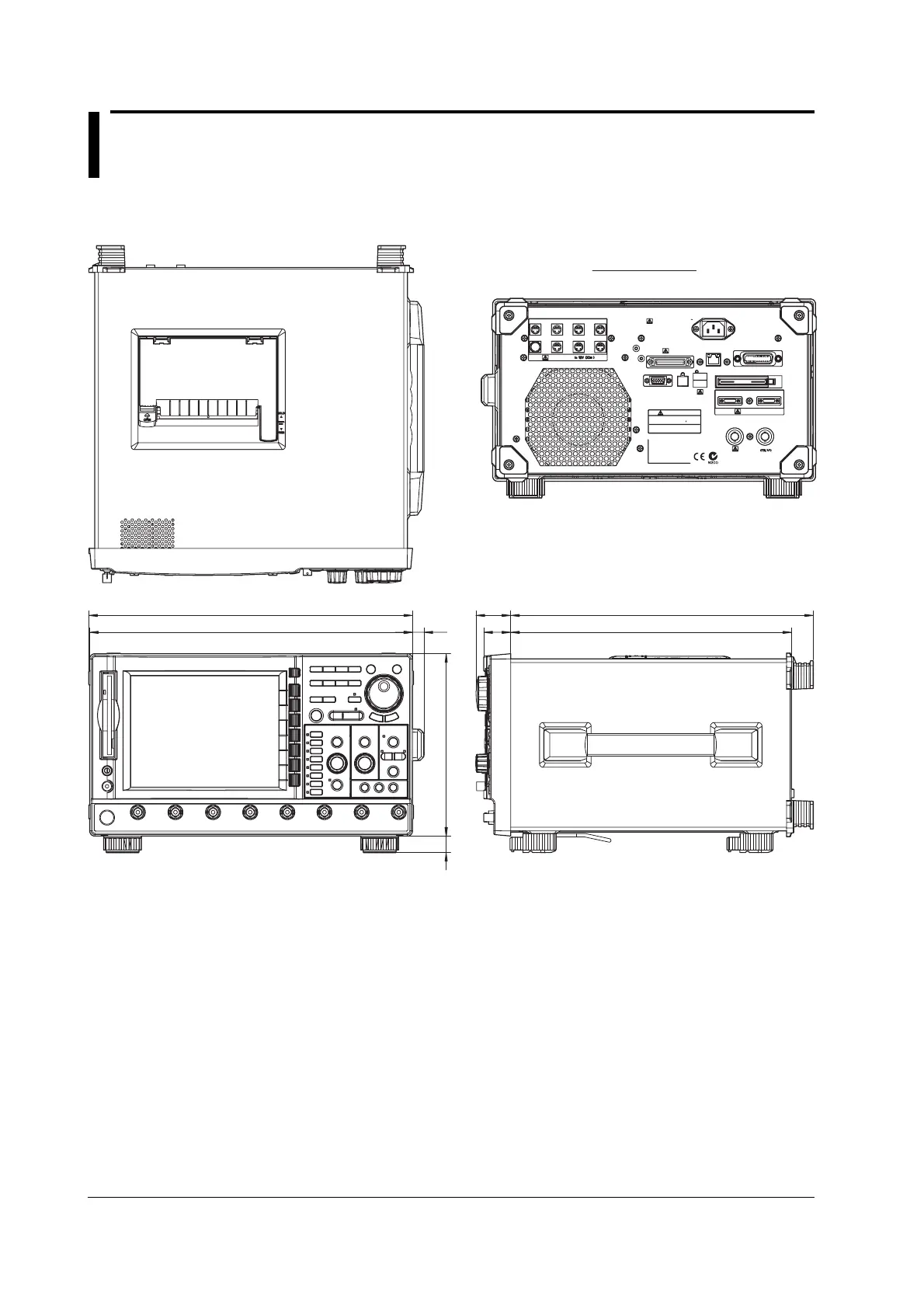

External Dimensions
374
14
210.5
20
373
40
31
349.6
324.3
PROBE POWER
100-120/220-240V AC
320VA MAX 50/60Hz
SCSI
LINK
ACT
100BASE-TX
ETHERNET
GP-IB(IEEE488)
USB
USB
PERIPHERAL
LOGIC PROBE
TRIG OUT
EXT CLOCK IN
EXT TRIG IN
TRIG GATE IN
VIDEO OUT
(VGA)
WAR
N
ING
Do not operate within reading
safety precautions in user s manual.
A
ABCD
EFGH
B
<40Vpk 1M
Ω
Rear View
Unit: mm
If not specified, the tolerance is
±
3%. However, in cases of less than 10 mm, the tolerance is
±
0.3 mm.
461
463
Table of Contents
Default Chapter
2
Product Registration
2
Checking the Contents of the Package
5
Standard Accessories
6
Safety Precautions
8
Conventions Used in this Manual
10
Flow of Operation
11
Table of Contents
12
Chapter 1 Names and Functions of Parts
17
Front Panel, Rear Panel, and Top Panel
17
Panel Keys and Knobs
19
Display
22
Chapter 2 Explanation of Functions
25
System Configuration and Block Diagram
25
System Configuration,Block Diagram
25
Vertical and Horizontal Axes
26
Trigger
32
Waveform Acquisition and Display Conditions
39
Waveform Computation
45
Analyzing and Searching Waveforms
49
Automated Measurement of Waveform Parameters,Go/No-GO Determination
54
Communication
56
Saving and Loading Data from a Network Drive (FTP Client)
56
Other Useful Functions
58
Saving and Loading Data from the Storage Medium
59
Operating the DL7400 Using a Free Software Program
59
Chapter 3 Making Preparations for Measurements
60
Handling Precautions
60
Installing the Instrument
62
Connecting the Power Supply and Turning ON/OFF the Power Switch
64
Connecting the Probe
66
Compensating the Probe (Phase Correction)
69
Connecting Logic Probes (Optional)
70
Setting the Date and Time
72
Chapter 4 Common Operations
74
Operations and Functions of Keys and the Jog Shuttle
74
Entering Values and Strings
76
Operating the DL7400 Using a USB Keyboard or a USB Mouse
79
Initializing Settings
87
Performing Auto Setup
89
Performing Calibration
92
Correcting the Delay Time of the Input Signals
94
Using the Help Function
96
Chapter 5 Vertical and Horizontal Axes
97
Turning Channels ON/OFF
97
Setting V/DIV
98
Setting the Vertical Position of the Waveform
100
Setting the Input Coupling
102
Selecting the Probe Attenuation/Current-To-Voltage Conversion Ratio
104
Setting the Offset Voltage
105
Using the Preset Function
107
Setting Bandwidth Limits
110
Using the Linear Scaling Function
111
Turning ON/OFF the Logic Input and Setting the Threshold Level
113
Selecting the Time Base
116
Setting T/DIV
118
Chapter 6 Triggers
119
Selecting the Trigger Mode
119
Setting the Trigger Position
121
Setting the Trigger Delay
123
Setting the Hold off Time
124
Setting the Edge Trigger (SIMPLE)
127
Setting the External Trigger (SIMPLE)
130
Activating Triggers on the Commercial Power Supply (SIMPLE)
132
Setting the A->B(N) Trigger (ENHANCED)
133
Setting the a Delay B Trigger (ENHANCED)
136
Setting the Pattern Trigger (ENHANCED)
139
Setting the Width (Pulse<Time, Pulse>Time, T1<Pulse<T2, and Time Out) Trigger (ENHANCED)
143
Setting the or Trigger (ENHANCED)
148
Setting the Window Trigger (ENHANCED)
151
Setting the TV Trigger (ENHANCED)
154
Setting the Logic Trigger (ENHANCED, Optional)
159
Setting the Action-On-Trigger
162
Setting the Trigger Gate
164
Chapter 7 Waveform Acquisition
166
Starting/Stopping Waveform Acquisition
166
Setting the Record Length
167
Using Interleave Mode
168
Turning ON/OFF Repetitive Sampling Mode
169
Setting the Acquisition Mode
171
Performing Sequential Store (SINGLE(N) Mode)
175
Chapter 8 Waveform Display and Information Display
177
Setting the Display Format
177
Performing Display Interpolation
180
Accumulating Waveforms
182
Zooming the Waveform
184
Displaying X-Y Waveforms
188
Taking Snapshots and Clearing Traces
191
Changing the Graticule
192
Turning ON/OFF the Scale Display
193
Setting Waveform Labels and Turning ON/OFF the Display
194
Turning ON/OFF the Translucent Display
196
Chapter 9 Waveform Computation
197
Entering Normal Computation Mode, Displaying Computed Waveforms, and Assigning Labels to Computed Waveforms
197
Adding, Subtracting, and Multiplying Waveforms
199
Performing Binary Computation
202
Inverting Waveforms
204
Differentiating and Integrating Waveforms
206
Performing Power Spectrum Computation (FFT)
208
Smoothing Waveforms
211
Shifting the Phase
213
Performing User-Defined Computation (Optional)
215
Chapter 10 Analyzing and Searching Waveforms
226
Displaying History Waveforms
226
Searching the History Waveforms Using Zones (History Search)
230
Searching History Waveforms Using Waveform Parameters (History Search)
235
Searching Waveforms Using the Search and Zoom Function
240
Making Cursor Measurements
258
Automated Measurement of Waveform Parameters
271
Performing Statistical Processing of the Measured Values of Waveform Parameters
279
Performing Automated Measurements of Waveform Parameters on Dual Areas
286
Performing GO/NO-GO Determination Using Zones
291
Performing GO/NO-GO Determination Using Measured Waveform Parameters
297
Analyzing and Searching SPI Signals
301
Chapter 11 Printing Screen Images
314
Installing the Roll Paper into the Built-In Printer (Optional)
314
Printing Using the Built-In Printer (Optional)
316
Printing Using a USB Printer
319
Printing Using a Network Printer (Optional)
324
Chapter 12 Saving and Loading Data
327
Storing and Recalling Setup Data
327
Floppy Disk, Zip Disk, and PC Cards
329
Connecting MO Disk Drives or Hard Disks to the SCSI
333
Changing the SCSI ID Number
334
Connecting USB Storage to the USB PERIPHERAL Interface
335
Formatting the Storage Medium
336
Saving/Loading the Setup Data
341
Saving/Loading the Waveform Data
346
Saving/Loading the Snapshot Waveforms
354
Saving the Results of the Automated Measurement of Waveform Parameters
357
Saving the Detailed Analysis List of SPI Signals
359
Saving Screen Image Data
361
Displaying Thumbnails of the Saved Screen Image Data
365
Changing the File Attributes and Deleting Files
369
Copying Files
373
Changing the Directory or File Name of the Storage Medium and Creating Directories
376
Chapter 13 Ethernet Communications (Optional)
380
Connecting the DL7400 to the Network
380
Setting up TCP/IP
382
Saving and Loading Waveform/Setup/Image Data on a Network Drive (FTP Client Function)
387
Entering Settings for Printing Screen Images on the Network Printer (LPR Client Function)
390
Sending Periodic or Action Mail (SMTP Client Function)
391
Accessing the DL7400 from a PC or Workstation (FTP Server Function)
395
Using the Web Server Function
397
System Requirements
398
Setting the Time Difference from GMT (Greenwich Mean Time)
420
Checking the Presence of the Ethernet Interface (Optional) and the MAC Address
422
Setting the FTP Passive Mode and LPR/SMTP Timeout
423
Using the Storage Medium as a Windows Network Drive (Firmware Version 1.30 or Later)
425
Chapter 14 Rear Panel Auxiliary I/O Section
427
External Trigger Input, External Clock Input, and Trigger Gate Input
427
Trigger Output
429
Video Signal Output (VIDEO out (VGA))
431
Chapter 15 Other Operations
432
Changing the Message Language and Turning ON/OFF the Click Sound
432
Changing the USB Keyboard Language and Checking the Connected USB Keyboard
433
Measuring the Offset Voltage and Applying the Offset Voltage to
434
The Computed Results
434
Setting the Screen Color and Intensity
435
Turning off the Backlight and Setting the Brightness of the Backlight
437
Chapter 16 Troubleshooting, Maintenance, and Inspection
439
Troubleshooting
439
Messages and Corrective Actions
440
Performing a Self-Test
446
Checking the System Conditions (Overview)
449
Recommended Replacement Parts
450
Chapter 17 Specifications
451
Input Section
451
Logic Input Section (Optional)
452
Trigger Section
452
Time Axis
454
Display
454
Function
454
Built-In Printer (Optional)
457
Storage
457
USB Peripheral Interface
458
Auxiliary I/O Section
458
Computer Interface
459
General Specifications
460
External Dimensions
462
Appendix
463
Relationship between the Time Axis Setting, Sample Rate and Record Length
464
Appendix 2 How to Calculate the Area of a Waveform
474
ASCII Header File Format
477
Appendix 3 ASCII Header File Format
478
Appendix 4 User-Defined Computation
480
Appendix 5 List of Default Settings
488
Appendix 6 Key Assignments of the USB Keyboard
490
