8-8 IM 701450-01E

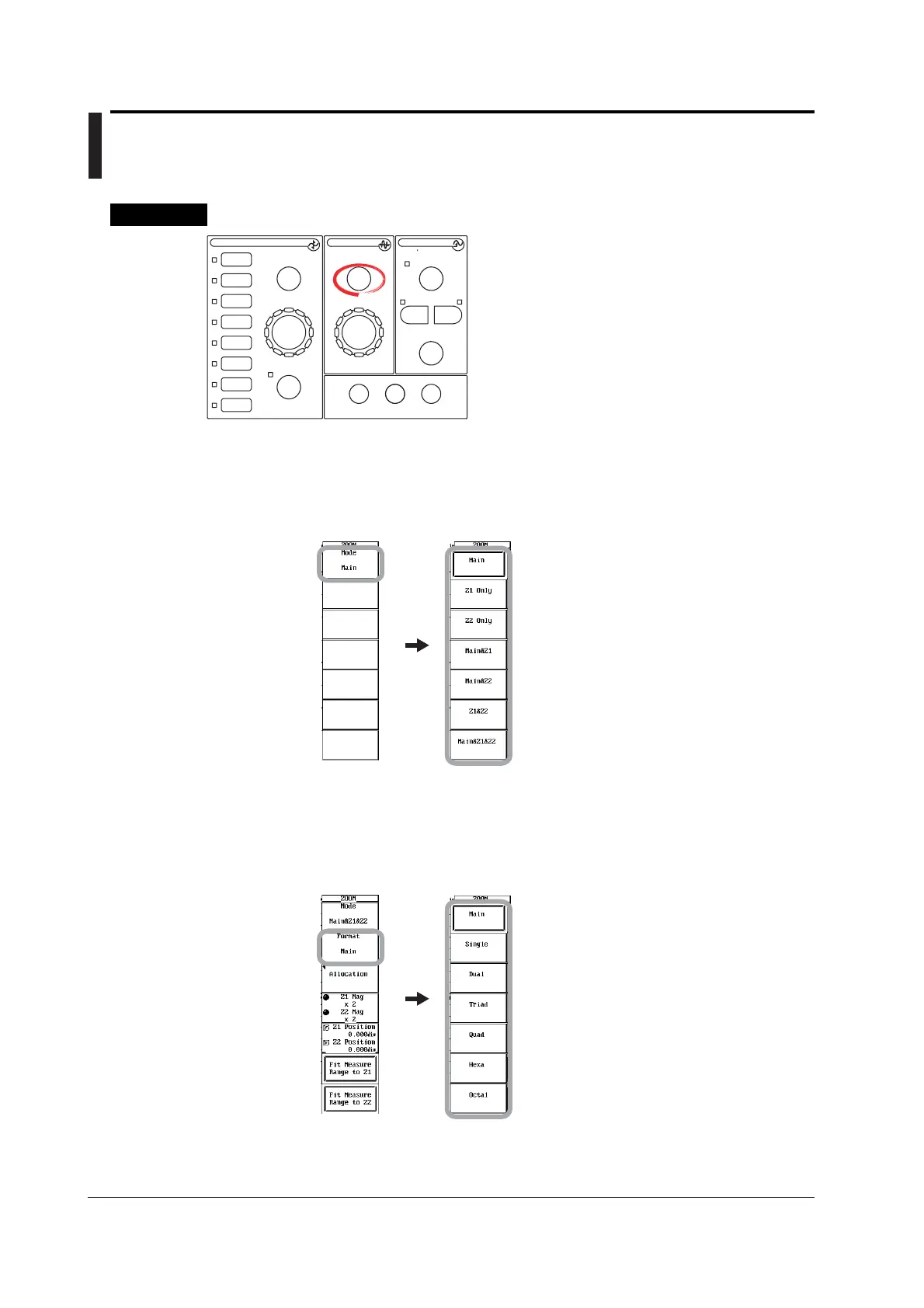

8.4 Zooming the Waveform
<For a description of this function, refer to page 2-19.>
Procedure
SEARCH
PRESET
ZOOM
MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH
1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL
TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT
HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
Selecting the Display Mode
1. Press ZOOM. The ZOOM menu appears.
2. Press the Mode soft key. The Mode menu appears.
3. Press any soft key from Main to Main&Z1&Z2 to select the display mode.
If you select Main, you are done.
Selecting the Display Format
4. Press the Format soft key. The Format menu appears.
If you set Mode to Main, the Format soft key does not appear.
5. Press any soft key from Main to Octal to select the display format.
Octal can be used on the DL7480.
To Next Page
