Waveform Display and Information Display
Setting the Waveform to Be Zoomed

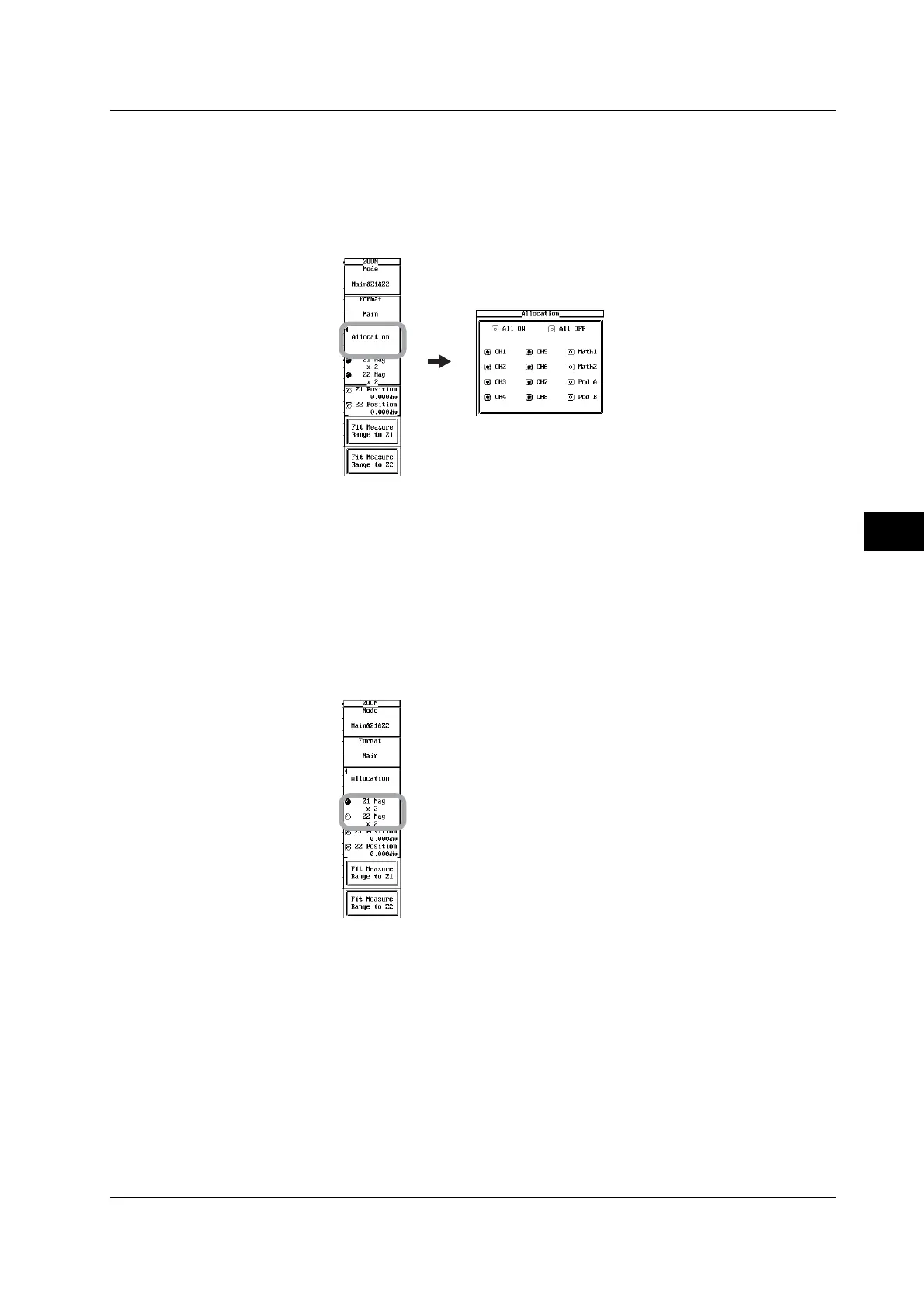

6. Press the Allocation soft key. The Allocation dialog box appears.
7. Use jog shuttle & SELECT to select the waveform to be zoomed.
• If All ON is executed using jog shuttle & SELECT, all the waveforms currently displayed
are selected.
• If All OFF is executed using jog shuttle & SELECT, all the waveforms are deselected.
Setting the Zoom Rate
8. Press the Z1 Mag/Z2 Mag soft key to set the jog shuttle control to Z1 Mag.
If you select Z1 on the Mode menu, Z1 Mag is displayed. If you select Z2, Z2 Mag is
displayed. If you select Z1 and Z2, Z1 Mag/Z2 Mag is displayed.
9. Turn the jog shuttle to set the zoom rate of zoom box Z1.
10. Likewise, set the zoom rate of zoom box Z2 with Z2 Mag.
• If you select Z1 Mag, you can set the zoom rate of Z1.
• If you select Z2 Mag, you can set the zoom rate of Z2.
• If you select both Z1 Mag and Z2 Mag, the zoom rate of Z2 is set equal to Z1. When
you turn the jog shuttle, both are set to the same zoom rate.
