10-76 IM 701450-01E

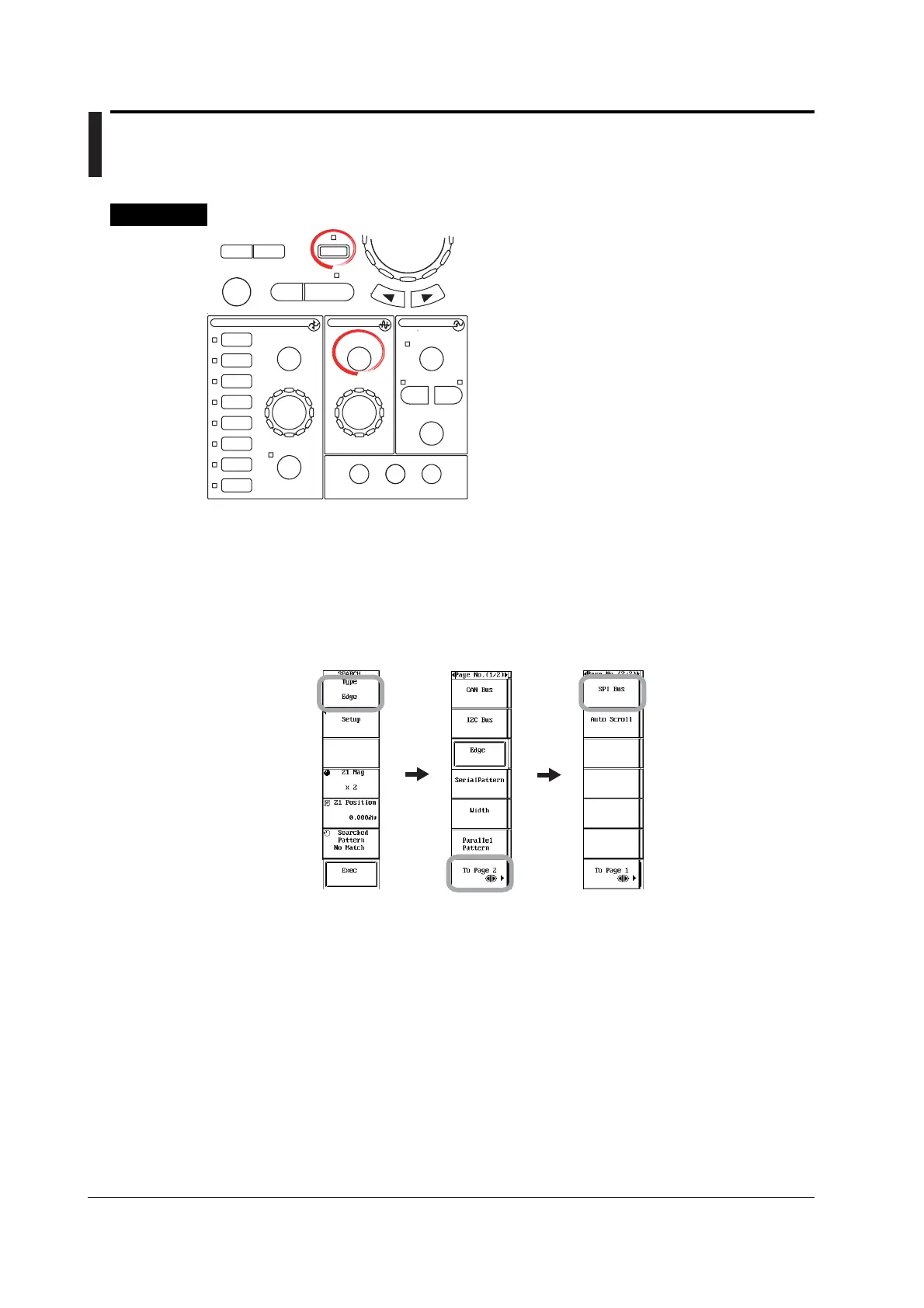

10.11 Analyzing and Searching SPI Signals
Procedure
SEARCH
MENU MENU
SHIFT
HISTORY
PRESET
ZOOM
MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
PRINT
ACQ
V/DIV TIME/DIV
START/STOP
IMAGE SAVE
VERTICAL
TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT
HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
1. Press SHIFT+ZOOM (SEARCH). The SEARCH menu appears.
Selecting the SPI Bus
2. Press the Type soft key. The Type menu appears.
3. Press the To Page 2 soft key.
Depending on the model, the SPI Bus item may appear under the Type menu (Page
No. (1/2)) without having to press the To Page 2 soft key.
4. Press the SPI Bus soft key.
Setting the Analysis Conditions
5. Press the Analyze Setup soft key. The Analyze Setup dialog box opens.
Setting the Detection Level, Hysteresis, and Slope of the Synchronization Clock
Signal CH1
6. Use jog shuttle & SELECT to set the level for detecting the synchronization
clock (Level box).
7. Use jog shuttle & SELECT to set the hysteresis (width of the level used to
detect the synchronization clock, Hysteresis box).
To Next Page
