Triggers
6.15 Setting the Logic Trigger (ENHANCED,
Optional)
<For a description of this function, refer to page 2-12.>
Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

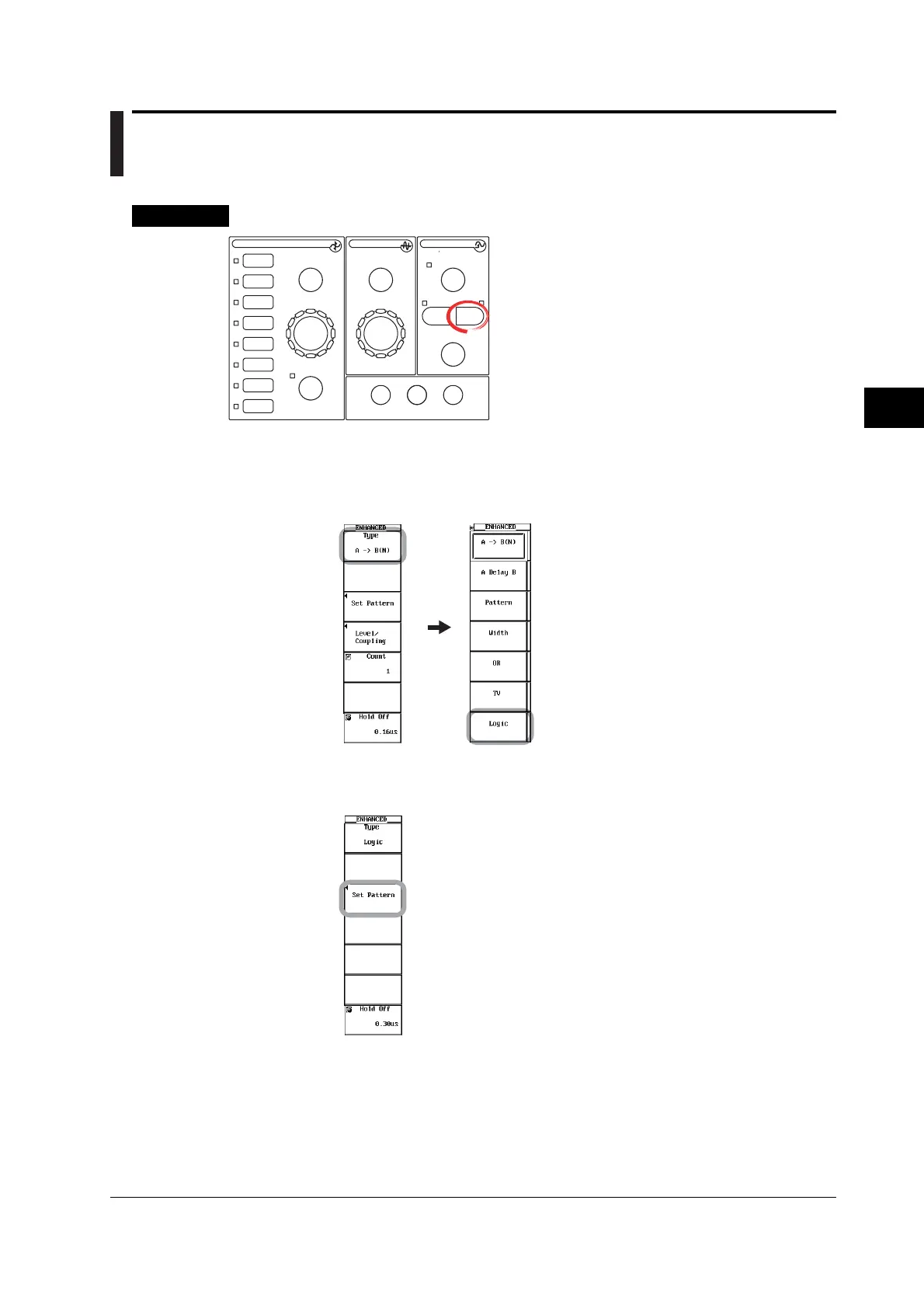

Setting the Trigger Type
1. Press ENHANCED. The ENHANCED menu appears.
2. Press the Type soft key. The Type menu appears.
3. Press the Logic soft key.
Setting the Status and Condition
4. Press the Set Pattern soft key. The Set Pattern dialog box opens.
