5-20 IM 701450-01E
5.11 Selecting the Time Base
<For a description of this function, refer to page 2-5.>

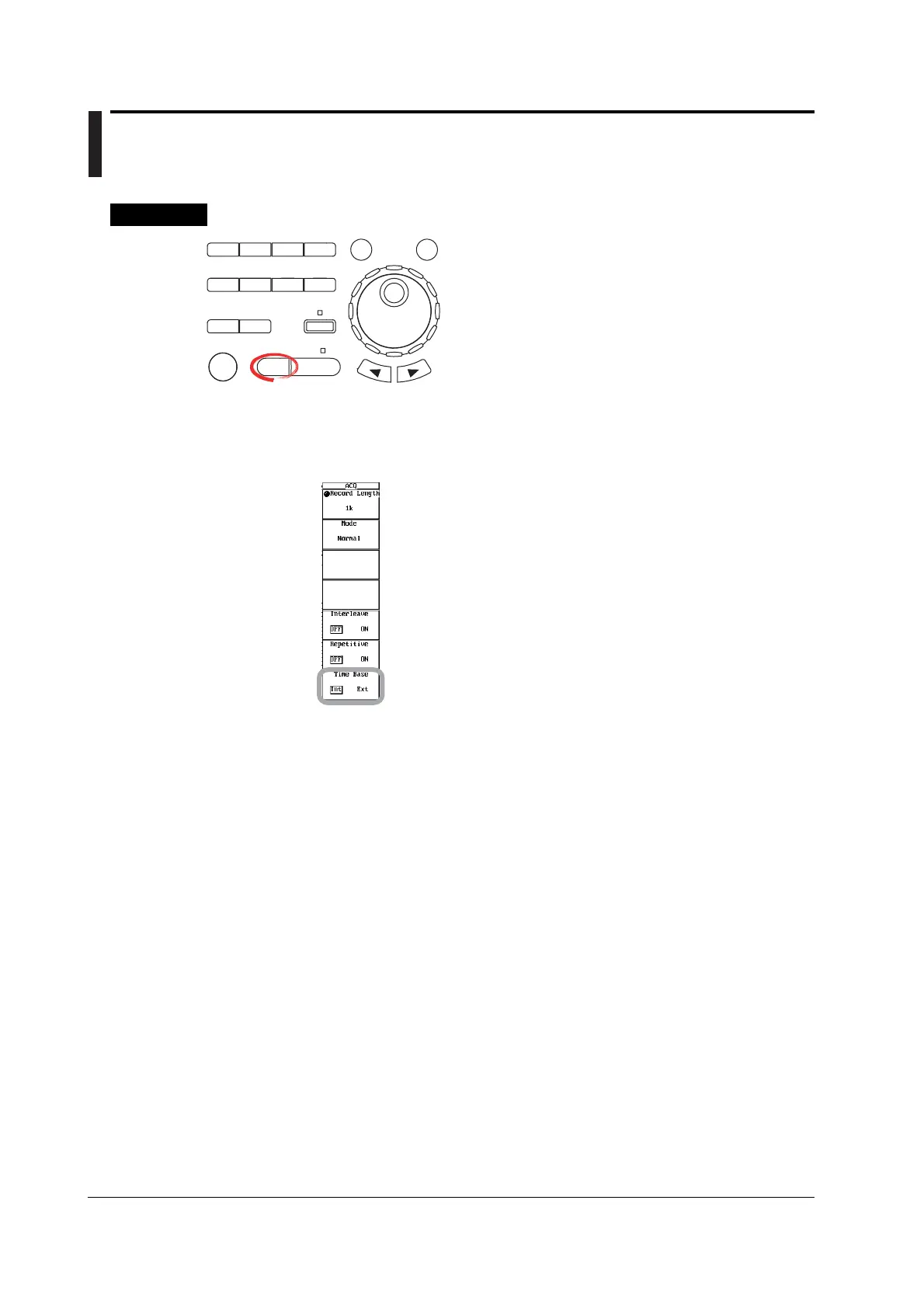

Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
Selecting the Time Base
1. Press ACQ. The ACQ menu appears.
2. Press the Time Base soft key to select Int or Ext.
Setting the Threshold Level When Using an External Clock
3. Press SIMPLE. In the menu appears, set the trigger source to EXT and set the
level.
This operation is common with the trigger level settings. For details on the procedure,
see section 6.6.
To Next Page
