10.6 Automated Measurement of Waveform
Parameters
<For a description of this function, refer to page 2-30.>
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.

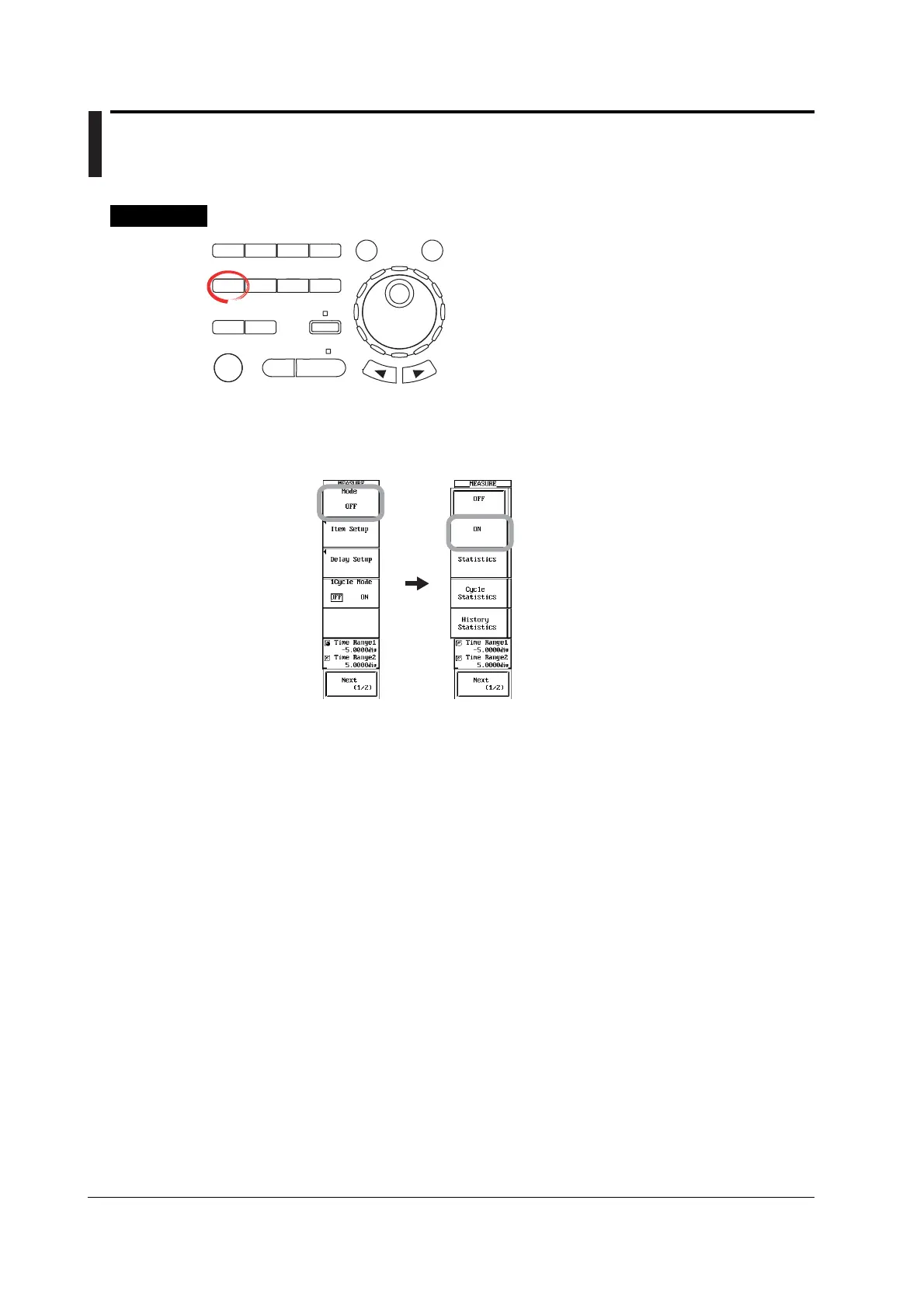

1. Press MEASURE. The MEASURE menu appears.
2. Press the Mode soft key. The Mode menu appears.
3. Press the ON soft key.
Selecting the Measurement Parameters
4. Press the Item Setup soft key. The Item Setup menu and Item Setup dialog
box appear.
5. Press the CH1 to CH8/4, Math1, or Math2 soft key to select the waveform to be
measured.
• On the DL7440, select CH1 to CH4, Math1, or Math2.
• On the DL7480, select CH1 to CH8, Math1, or Math2. CH6, CH7, CH8, Math1, and
Math2 appear when you press the To Page 2 soft key.
6. Turn the jog shuttle to select the parameter to be measured.
7. Press SELECT. The mark to the left of the measurement parameter is
highlighted.
• The measurement parameter whose mark to the left of the parameter is highlighted is
the parameter to be measured.
• If you execute All Clear using jog shuttle & SELECT, all the highlighted displays are
cleared, and all parameters are not measured.
• If you execute Copy To All Trace using jog shuttle & SELECT, the settings in the
current Item Setup dialog box are copied to the Item Setup dialog boxes of all
waveforms.
8. Press ESC. The Item Setup dialog box closes.
To Next Page
