15.5 Turning OFF the Backlight and Setting the
Brightness of the Backlight

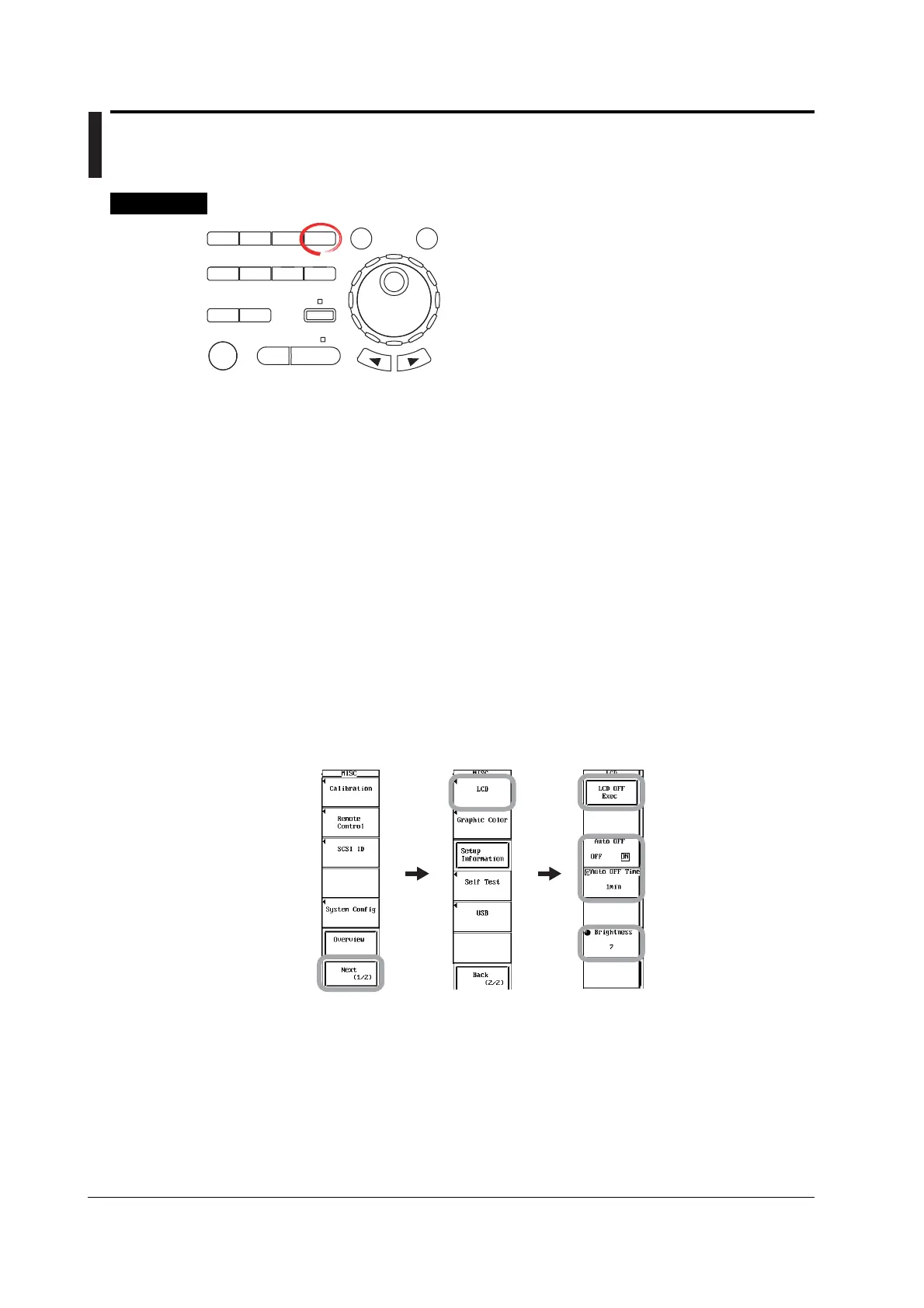

Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press MISC. The MISC menu appears.
2. Press the Next (1/2) soft key The page 2 menu appears.
3. Press the LCD soft key. The LDC menu is displayed.
Setting Auto Off
4. Press the Auto Off soft key to select ON or OFF.
If you set Auto OFF to ON, the Auto OFF Time menu appears. Proceed to step 5.
5. Press the Auto OFF Time soft key.
6. Turn the jog shuttle to set the time when the backlight will automatically turn
OFF.
Setting the Backlight Brightness
4. Press the Brightness soft key.
5. Turn the jog shuttle to set the backlight brightness.
Turning OFF the Backlight
4. Press the LCD OFF Exec soft key. The backlight turns OFF.
Pressing any panel key turns the backlight ON allowing the screen to be viewed.
