5-18 IM 701450-01E
Turning ON/OFF Each Bit

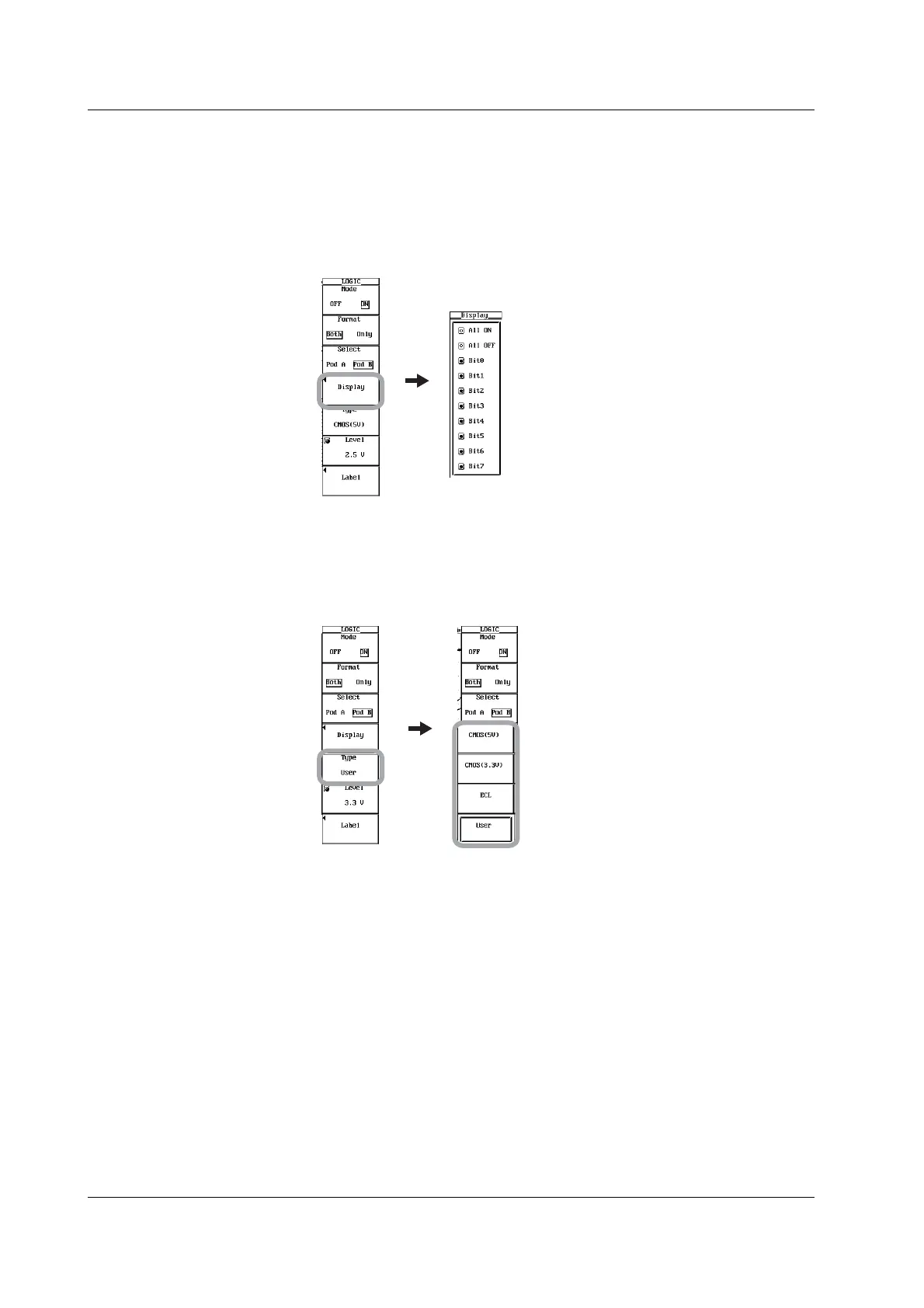

4. Press the Display soft key. The Display dialog box appears.
5. Use the jog shuttle to select the bit, and then press SELECT to select ON or
OFF.
• The input is turned ON when the mark to the left of the bit is highlighted.
• If All ON is selected, the input of all the bits is turned ON.
• If All OFF is selected, the input of all the bits is turned OFF.
Setting the Threshold Level
6. Press the Type soft key to select CMOS(5V), CMOS(3.3V), ECL, or User.
7. If you selected User, use the jog shuttle to set the threshold level.
If you change the threshold level using the jog shuttle even if a setting other than User
is selected at step 6, Type is automatically set to User.
8. Press ESC to close the dialog box.
Setting Labels
9. Press the Label soft key. A Label dialog box opens.
10. Use jog shuttle & SELECT to select the target bit. A keyboard appears.
11. Use the keyboard to enter the waveform label.
12. Repeat steps 9 and 10 as necessary.
13. Press ESC to close the dialog box.
5.10 Turning ON/OFF the Logic Input and Setting the Threshold Level
To Next Page
