6-19
IM 701450-01E
6
Triggers
Setting the Level, Hysteresis, Trigger Coupling, and HF Rejection

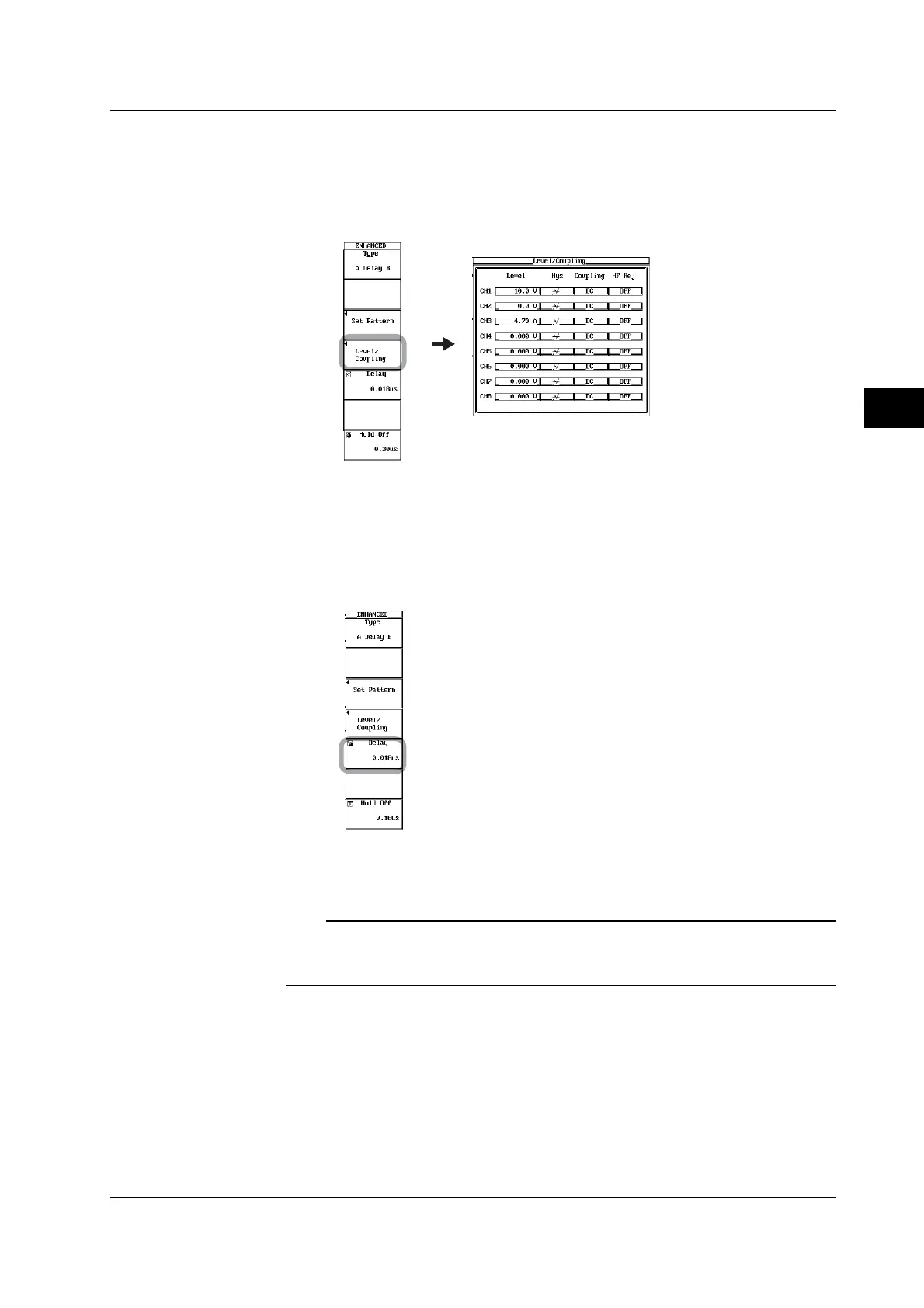

9. Press the Level/Coupling soft key. The Level/Coupling dialog box opens.
10. Like in the case of the A->B(N) trigger, set the level, hysteresis, trigger coupling,
and HF rejection.
The setup procedure is common to the A->B(N) trigger. See page 6-16.
11. Press ESC. The Level/Coupling dialog box closes.
Setting the Delay
12. Press the Delay soft key.
13. Turn the jog shuttle to set the delay.
Pressing RESET resets the value to 0.003 µs.
Setting the Hold Off
14. Set the hold off time according to the procedures given in section 6.4.
Note
• The status settings of conditions A and B apply to A->B(N) and A Delay B.
• The trigger level, hysteresis, trigger coupling, and HF rejection settings apply to both simple
and enhanced triggers.
6.9 Setting the A Delay B Trigger (ENHANCED)
