YOKOGAWA DL7440 User Manual

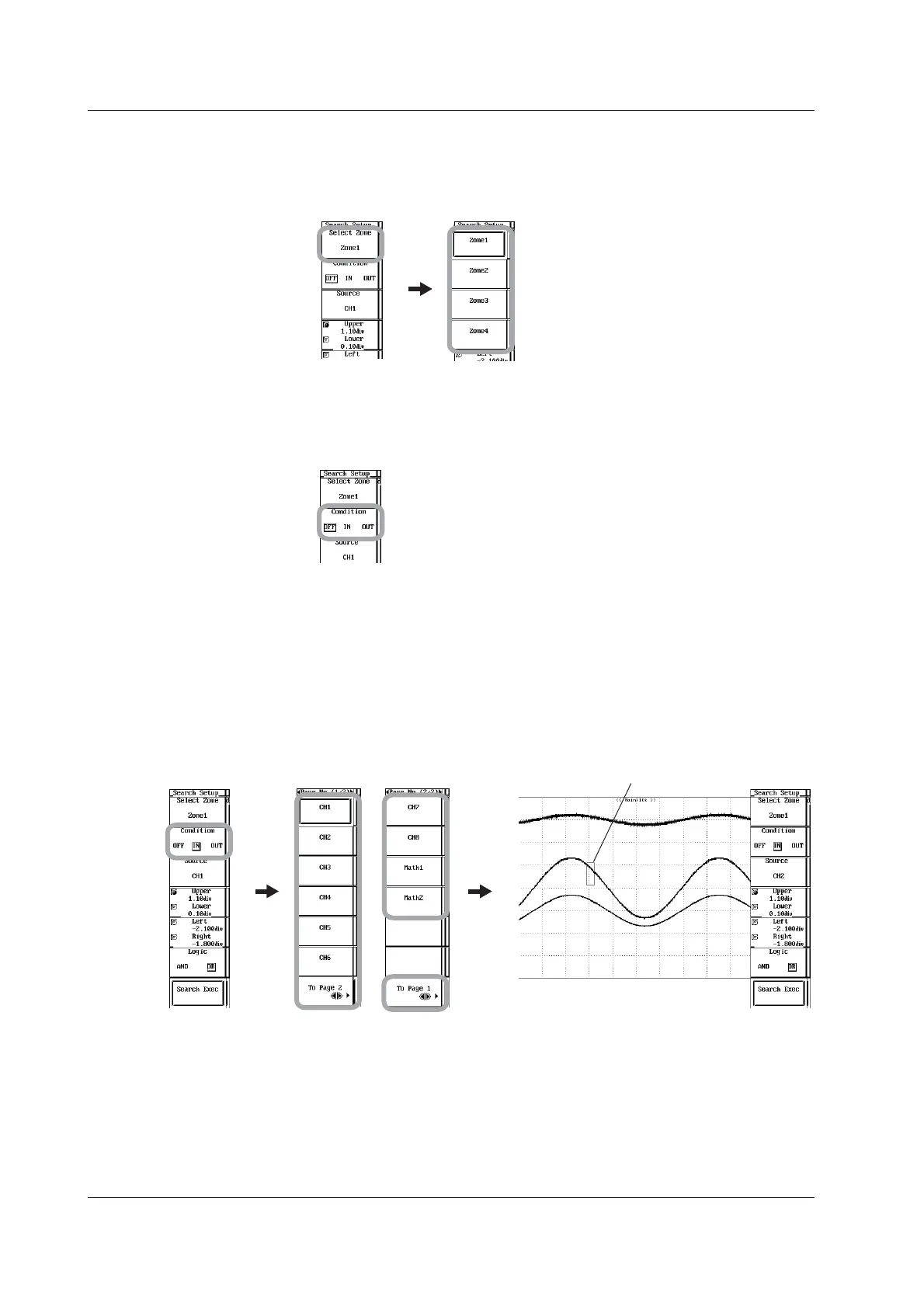

10-6 IM 701450-01E
Selecting the Zone for Registering Search Conditions
5. Press the Select Zone soft key. The Select Zone menu appears.
6. Press any of the Zone1 to Zone4 soft keys to select the parameter in which
search conditions are to be registered.
Selecting the Condition of the Waveform to Be Searched in the Search Zone
7. Press the Condition soft key to select OFF, IN, or OUT.
If you select IN or OUT and select a displayed waveform in step 9, the search zone
(rectangular frame) is displayed.
Selecting the Search Target Waveform
8. Press the Source soft key. The Source menu appears.
9. Press the CH1 to CH8/4, Math1, or Math2 soft key to select the search target
waveform.
• On the DL7440, select CH1 to CH4, Math1, or Math2.
• On the DL7480, select CH1 to CH8, Math1, or Math2. CH7, CH8, Math1, and Math2
appear when you press the To Page 2 soft key.
• If you select a displayed waveform as a search target and select IN or OUT in step 7,
the search zone (rectangular frame) is displayed.
Source menu on the DL7480
Search zone (rectangular frame)
10.2 Searching the History Waveforms Using Zones (History Search)
