Triggers

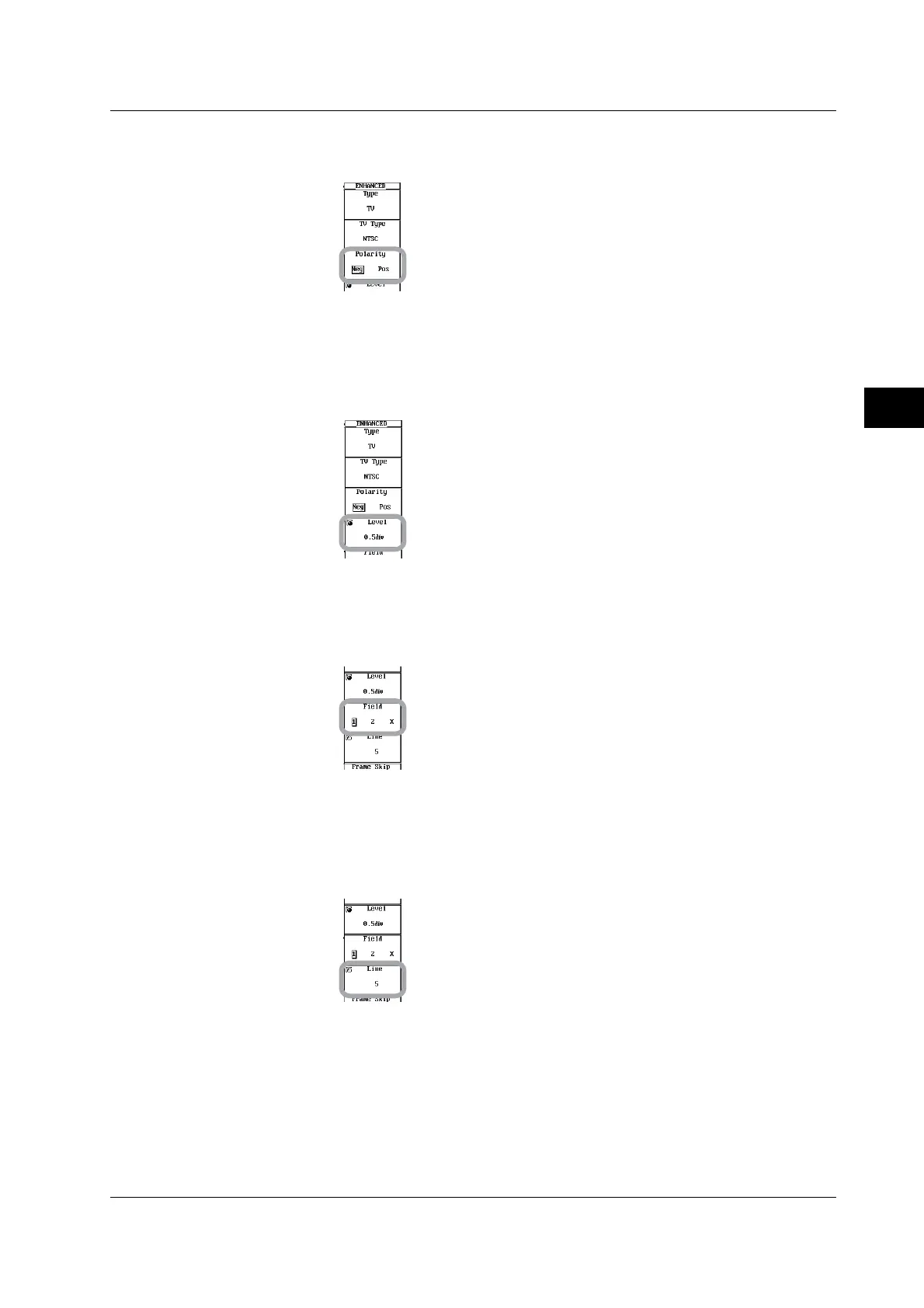

Selecting the Polarity
6. Press the Polarity soft key to select the polarity.
Setting the Trigger Level
7. Press the Level soft key.
8. Turn the jog shuttle to set the trigger level.
Pressing RESET sets the trigger level to 0.5 divisions or 1.0 division depending on the
TV Type (broadcast type).
Selecting the Field Number
9. Press the Field soft key to select the field number.
This value cannot be specified when the TV Type is set to 720/60p, 480/60p, 1080/25p,
1080/24p, or 1080/60p.
Selecting the Line Number
10. Press the Line soft key.
11. Turn the jog shuttle to select the line number.
Pressing RESET sets the minimum line setting to 8, 5, or 2 depending on the TV Type
setting.
6.14 Setting the TV Trigger (ENHANCED)
