USB Mouse Operation
Operations Similar to the Front Panel Keys (Top Menu)
• Displaying the Top Menu
Right-click on the screen. The front panel key names on the DL7400 are displayed as
the top menu.
• Selecting Items on the Top Menu
Point to the item you wish to select and left-click the item. The setup menu
corresponding to the selected item is displayed on the right side of the screen. The
top menu is cleared from the screen. Pointing to items with a sub menu (items with a
> mark displayed to their right) displays the sub menu. As with the top menu, point to
the item you wish to select and left-click the item.

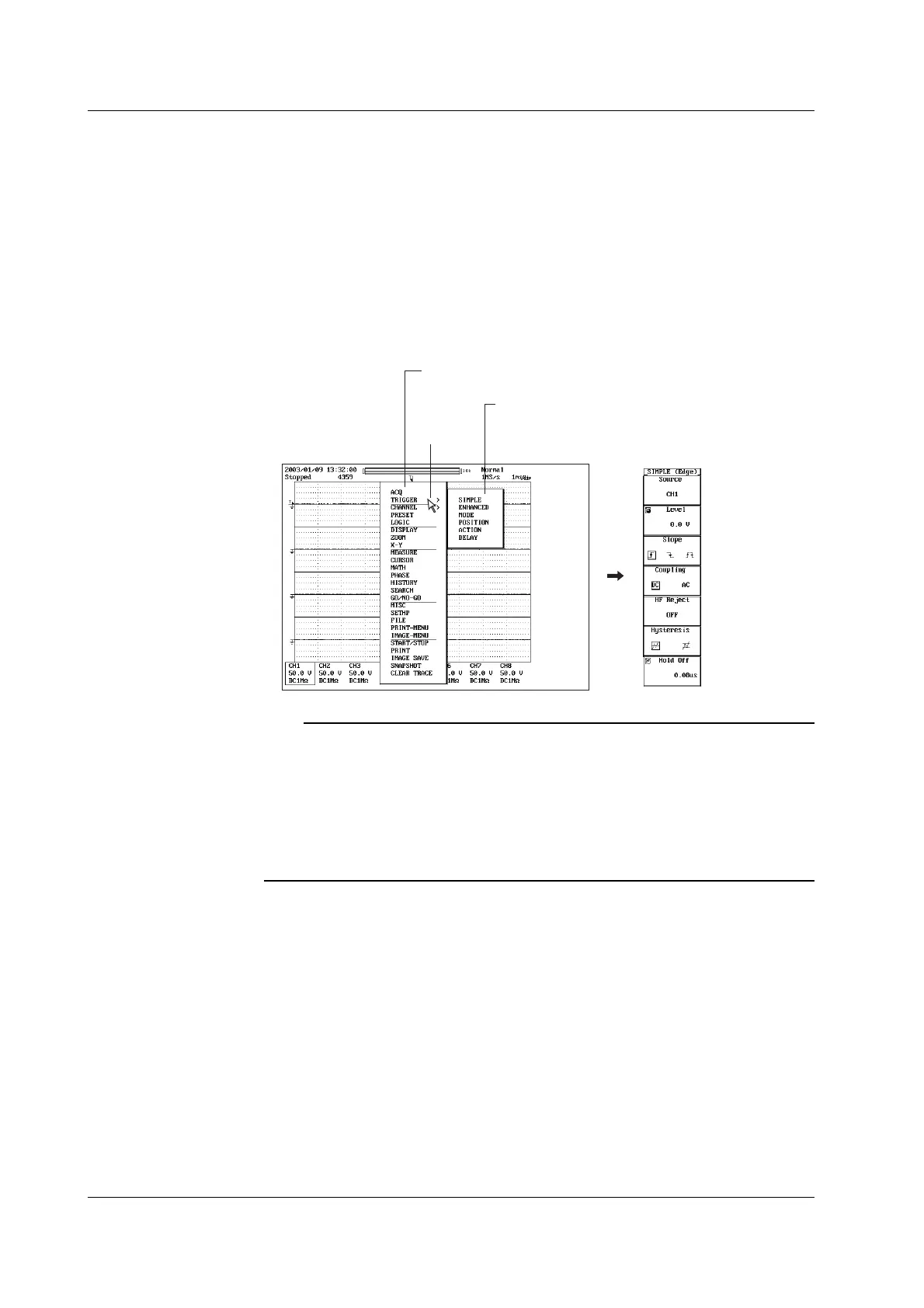

Sub menu
Items that have layers under the
top menu are displayed as sub menus.
Top menu
Right-click to display the top menu.
Pointer
The setup menu appears.
Note
• The following key names do not appear on the top menu.
ESC, RESET, SELECT, HELP, and arrow keys
• The top menu also displays characters that are marked in purple above the panel keys.
• The TRIGGER sub menu contains the following TRIGGER group panel key names.
MODE, SIMPLE/ENHANCED, POSITION, ACTION, and DELAY
• To display the PRINT menu or the IMAGE SAVE menu, select PRINT-MENU or IMAGE-
MENU, respectively. To execute the PRINT or IMAGE SAVE operation, select PRINT or
IMAGE SAVE, respectively.
