2-71
IM DLM4038-02EN
Editing a Part of the Waveform
3.

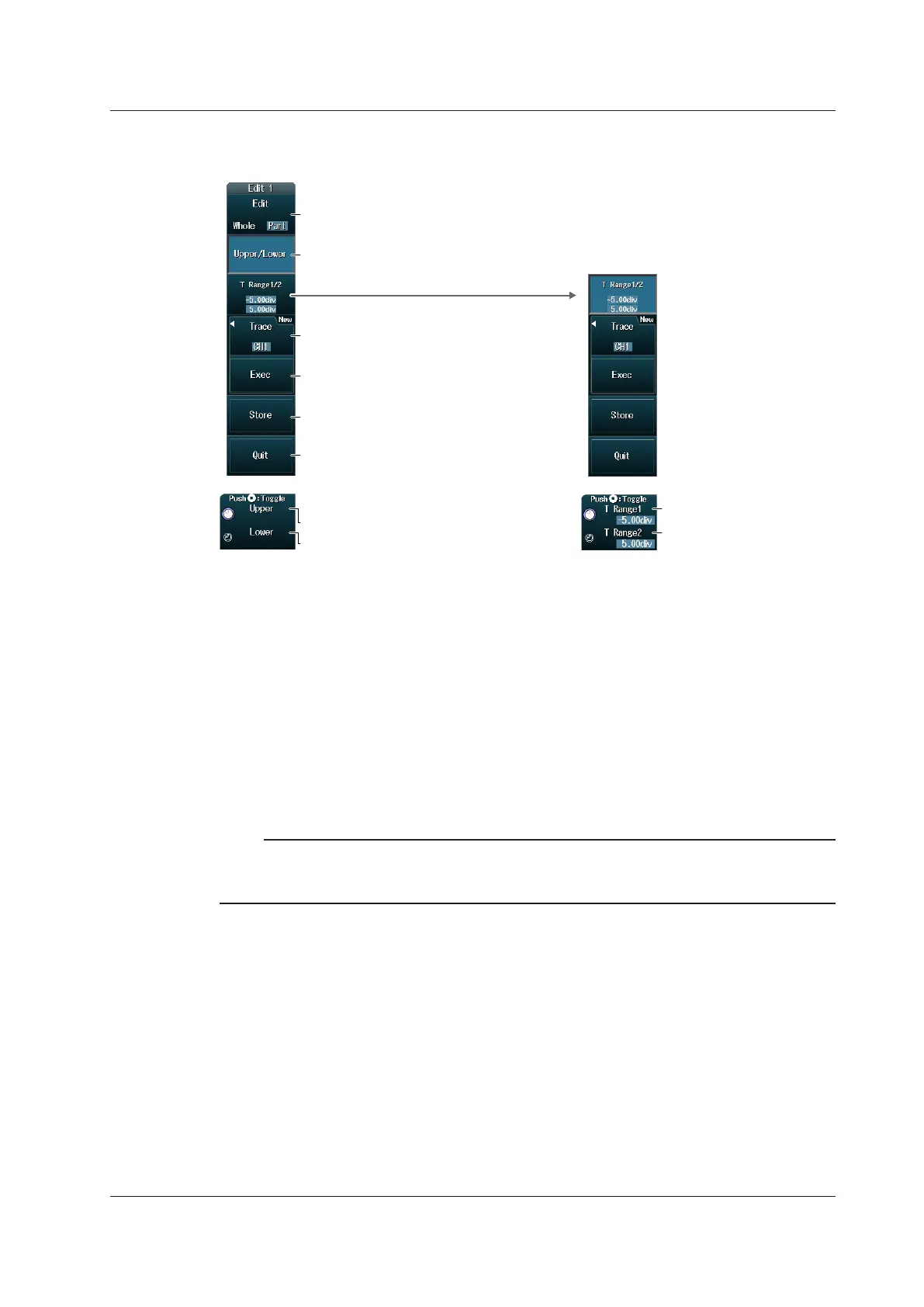

Press the Edit soft key and select Part to display the following menu.
Set the editing range (Part).
Set the vertical range.
Restart editing.
Confirm the changes to the waveform zone.
• Set the top side.
• Set the left side.
Configure the range of the waveform zone.
• Set the right side.
Change the base waveform (CH1 to CH8,
Math1 to Math4).
Stop editing.
Configure the partial editing range.
• Change the base waveform.
Change the base waveform when you want to use a waveform other than the GO/NO-GO
determination source waveform or when you want to recreate the zone.
• Restart editing.
To restart the editing of the waveform zones, press this soft key.
• Confirm the changes to the waveform zone.
Confirm the edited waveform zone and store it in internal memory.
• Stop editing.
Return to the previous menu from the editing screen. If you do not confirm the edited waveform
zone by pressing the Store soft key, the changes that you made are lost.
Note
• If you change the base waveform, all the zones that you have edited up to that point are lost.
• If you want to move from the editing menu to a different menu, you have to press the Quit soft key to
finish editing.
2.23 Performing GO/NO-GO Determination
