YOKOGAWA DLM4000 Series User Manual

2-72
IM DLM4038-02EN
Polygonal Zone (PolygonZone)

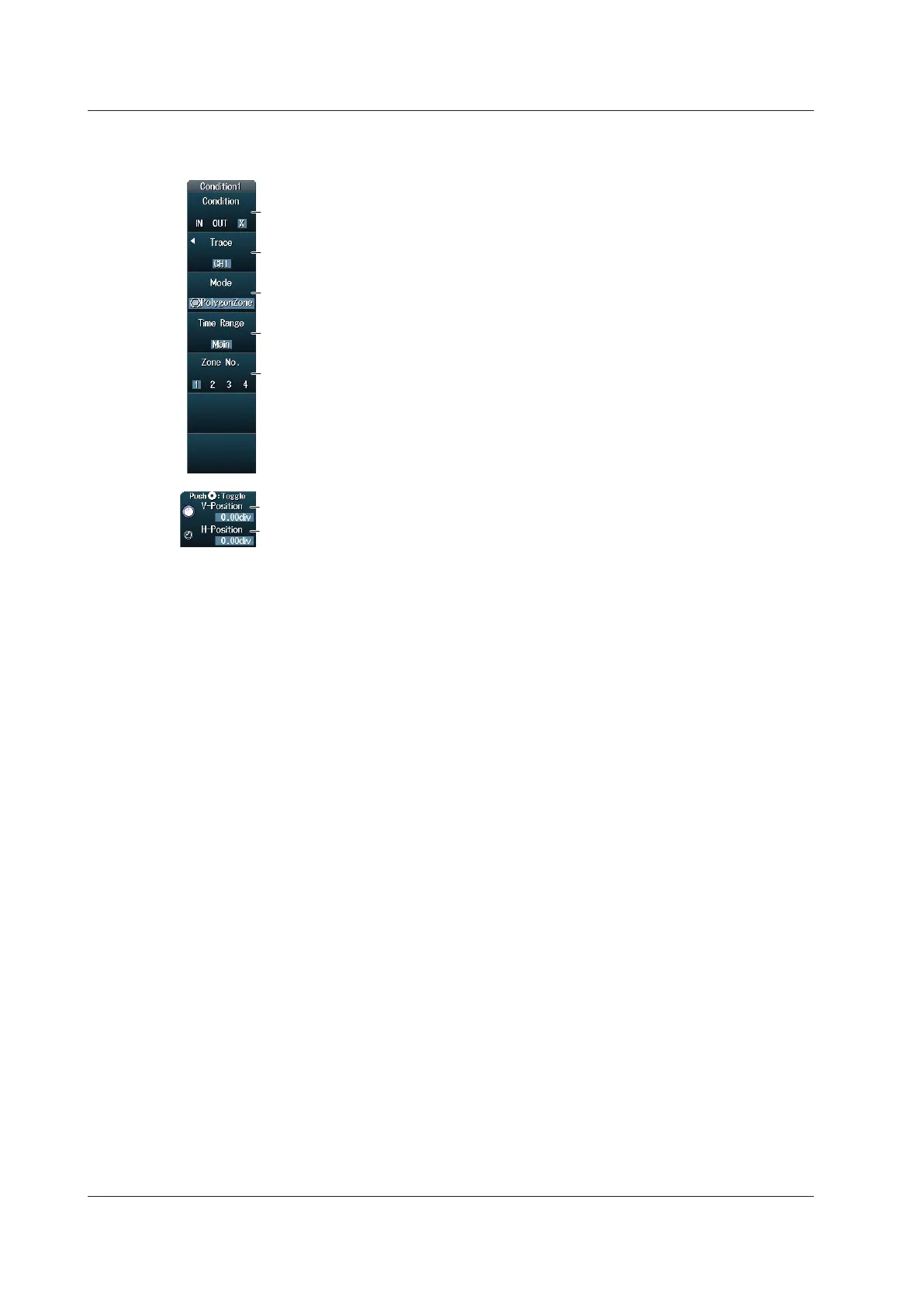

Press the PolygonZone soft key to display the following menu.
• Set the vertical position.
Configure the position of the polygonal zone.
• Set the horizontal position.
Reference standard. The polygonal zone appears when this is set to IN or OUT.
Set the reference range type (PolygonZone).
Set the GO/NO-GO determination source window (Main, Zoom1, or Zoom2).
Set this when the source waveform is CH1 to CH8 or Math1 to Math4.
Set the polygonal zone to edit (1 to 4).
GO/NO-GO determination is performed using the polygonal zone that you specify here.
Set the source waveform (CH1 to CH8, Math1 to Math4,
*
XY1 to XY4).
* Math1 to Math4 can be specified when the reference condition is 1 or 3.
Use the Mask Editor software on a PC in advance to create the polygonal images that you will use
as polygonal zones. After loading the file (see section 17.7) and loading the polygonal image into the
specified zone number (Zone No. 1 to 4), configure the polygonal zone GO/NO-GO determination.
2.23 Performing GO/NO-GO Determination
