YOKOGAWA DLM4000 Series User Manual

1-3
IM DLM4038-02EN

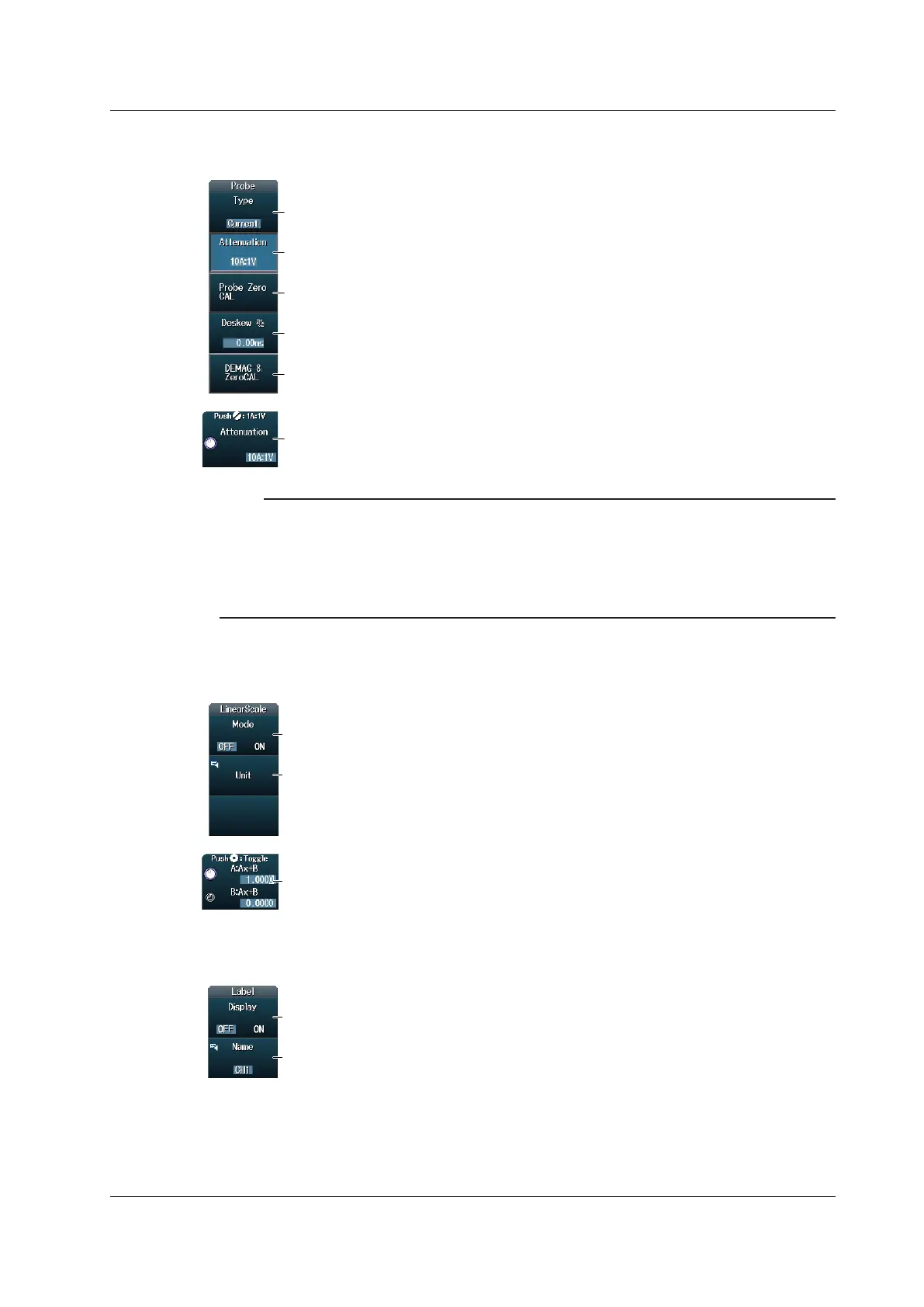

Setting the Probe (Probe)
Press the Probe soft key to display the following menu.
Set the deskew value (set using the jog shuttle).
Set the attenuation (set using the jog shuttle).
Set the probe type (voltage and current).
Set the attenuation or deskew.
Execute the automatic zero adjustment of current probes.
(Execution is only possible when current probes are connected.)
Execute the demagnetization and automatic zero adjustment of current probes.
(Execution is only possible when a YOKOGAWA PBC100 or PBC050 is connected.)
Note
When a current probe with a YOKOGAWA probe interface (such as a the PBC100 or PBC050 probe) is
connected to the DLM4000, you can execute demagnetization and automatic zero adjustment from the
DLM4000.
When you demagnetize and perform automatic zero adjustment on a current probe, do not clamp the
conductor. If you demagnetize a current probe while the conductor is clamped, the current that flows through
the conductor as a result of demagnetization may damage components of the EUT circuitry.
Setting the Linear Scaling (LinearScale)
Press the LinearScale soft key to display the following menu.
Set the scaling coefficient A and offset B.
Set the unit.
Turn linear scaling on or off.
Setting the Label Display (Label)
Press the Label soft key to display the following menu.
Set the label.
Turns labels on and off
1.1 Setting the Vertical Axis for Analog Signals
