1-4
IM DLM4038-02EN

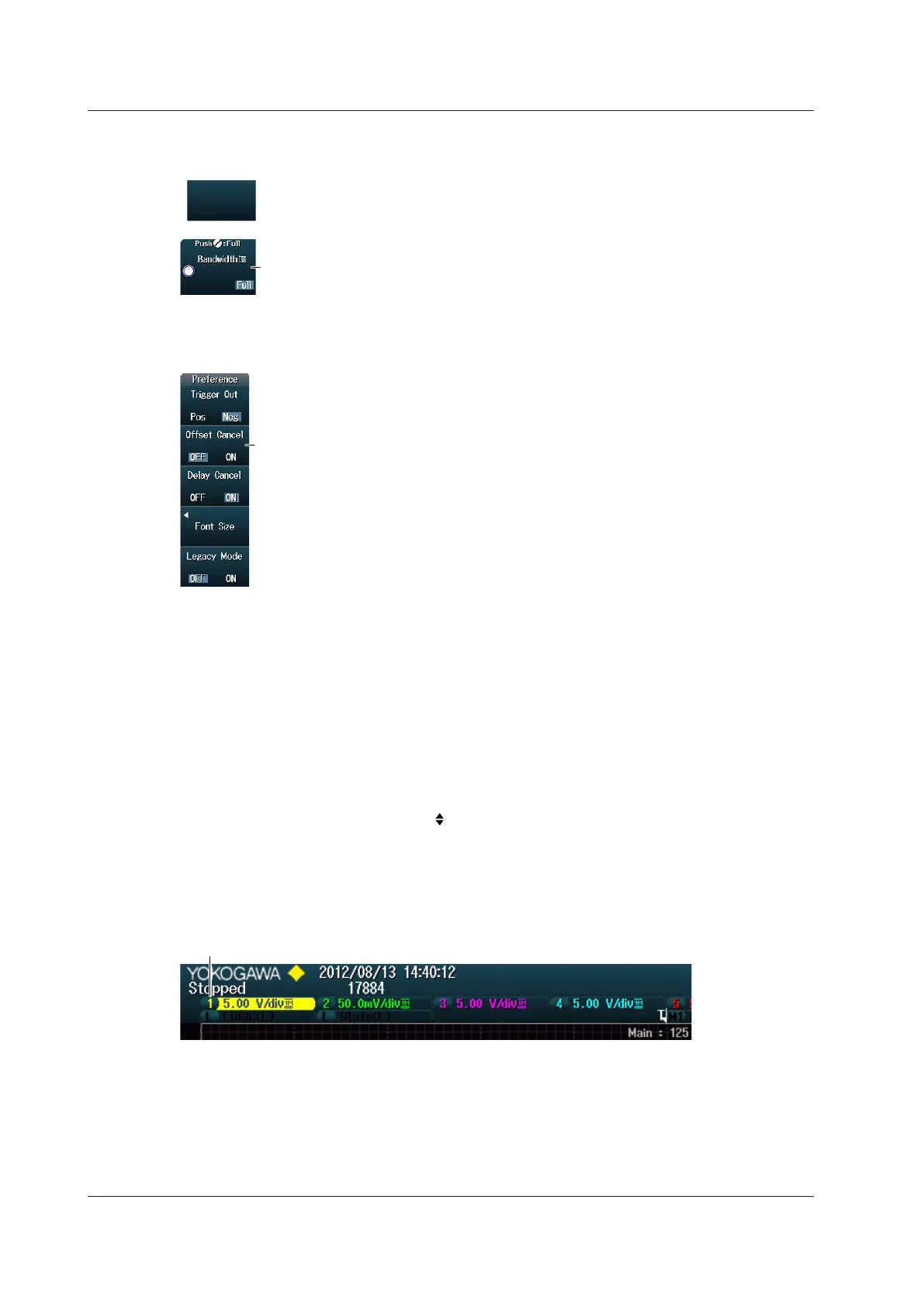

Setting the Bandwidth (Bandwidth)
Press the Bandwidth soft key. The jog shuttle now controls the Bandwidth setting.
UTILITY Preference Menu
Press UTILITY and then press the Preference soft key to display the following menu.
Turns offset cancelling on and off
Turning Offset Cancelling On or Off (Offset Cancel)
ON: The offset is subtracted from the input signal when cursor measurements, computations, and
other operations are performed.
OFF: The offset is not subtracted from the input signal when cursor measurements, computations,
and other operations are performed.
Setting the Vertical Scale (SCALE knob)
1.
Press a key from CH1 to CH8 to select the channel that you want to set the vertical scale for.
• The CH key that you press illuminates brightly.
• The LED between the SCALE and POSITION knobs illuminates in the color assigned to the selected
channel (the color around the CH key).
2.
Turn the SCALE knob to set the vertical scale.
If you push the SCALE knob, the FINE indicator illuminates, and you can set the vertical scale with
higher resolution.
Displays the vertical scale and input impedance for each channel
1.1 Setting the Vertical Axis for Analog Signals
To Next Page
