YOKOGAWA DLM4000 Series User Manual

12-20
IM DLM4038-02EN
Search Setup (Search)

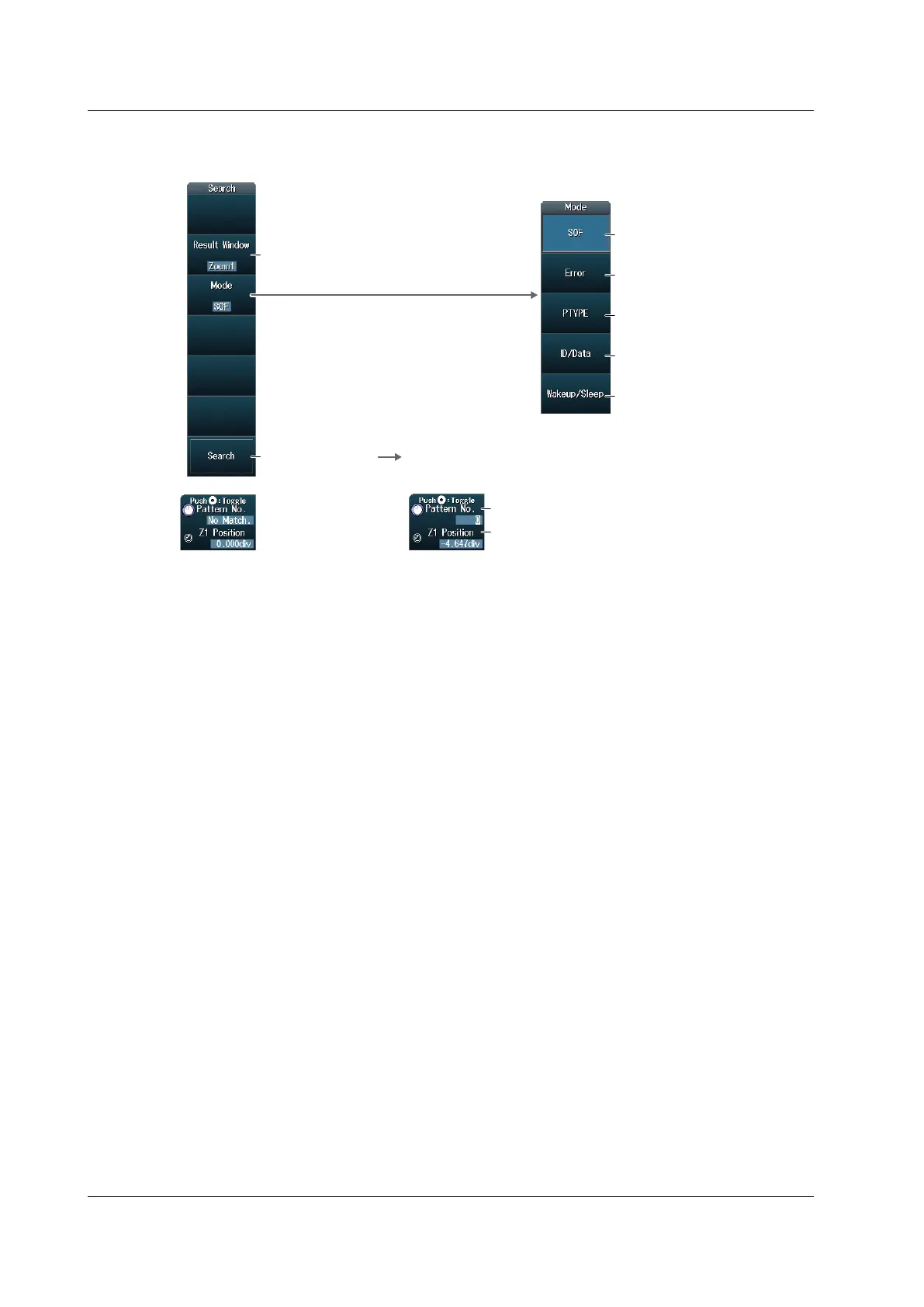

Press the Search soft key to display the following menu.
Set the zoom window (Zoom1 or Zoom2).
Executes a search This appears when a point that matches the
specified search conditions is found.
Set the detected point number.
Set the zoom position.
Set the search type.
Error mode
SOF mode
Wakeup/Sleep mode
ID/Data mode
PTYPE mode
Setting the Zoom Window
You can configure zoom windows Zoom1 and Zoom2 when they are displayed. Zoom1 is automatically
displayed during the automatic setup of the analysis settings.
Setting the Search Type
SOF (Start of Frame) Mode
Press the Mode soft key and then the SOF soft key.
The DLM4000 searches for the start position of CXPI bus signal frames.
12.5 Analyzing and Searching CXPI Bus Signals (Option)
