Configuring the List Display and Trend Display (List/Trend)

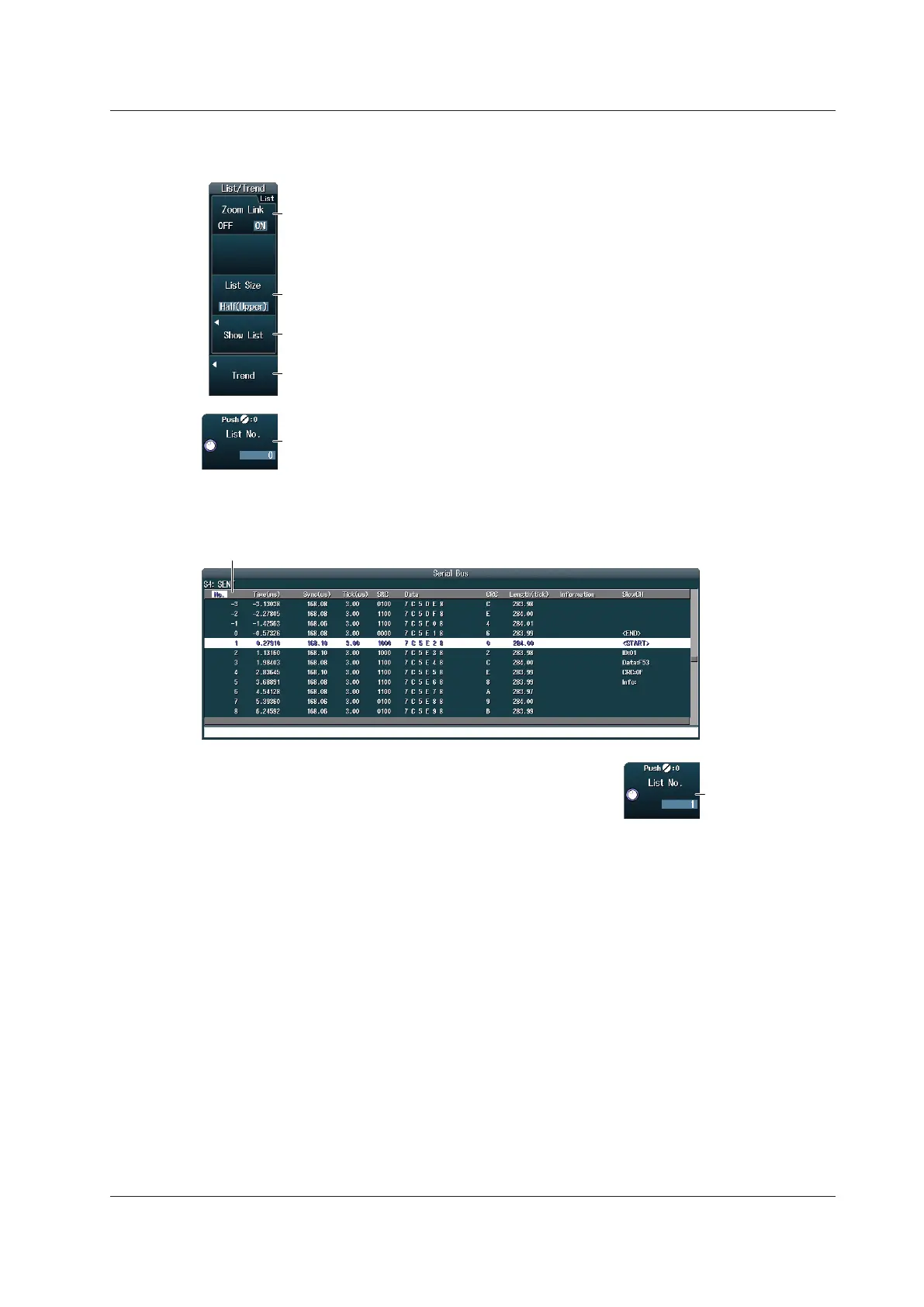

Press the List/Trend soft key to display the following menu.
Set the list size and the display position (Full Screen, Half(Upper), Half(Lower)).
Lists the analysis results
Configure the trend display.
Turns zoom linking on or off
Set the analysis number.
Showing the List of Analysis Results (Show List)
Press the Show List soft key to display the following screen.
Analysis number
Set the analysis
number
(using the
jog shuttle)
.
Data before the trigger position (on the left side of the waveform display) is assigned analysis
numbers in descending order (-1, -2, and so on). Data after the trigger position (on the right side of the
waveform display) is assigned analysis numbers in ascending order (0, 1, 2, and so on).
