YOKOGAWA DLM4000 Series User Manual

1-14
IM DLM4038-02EN

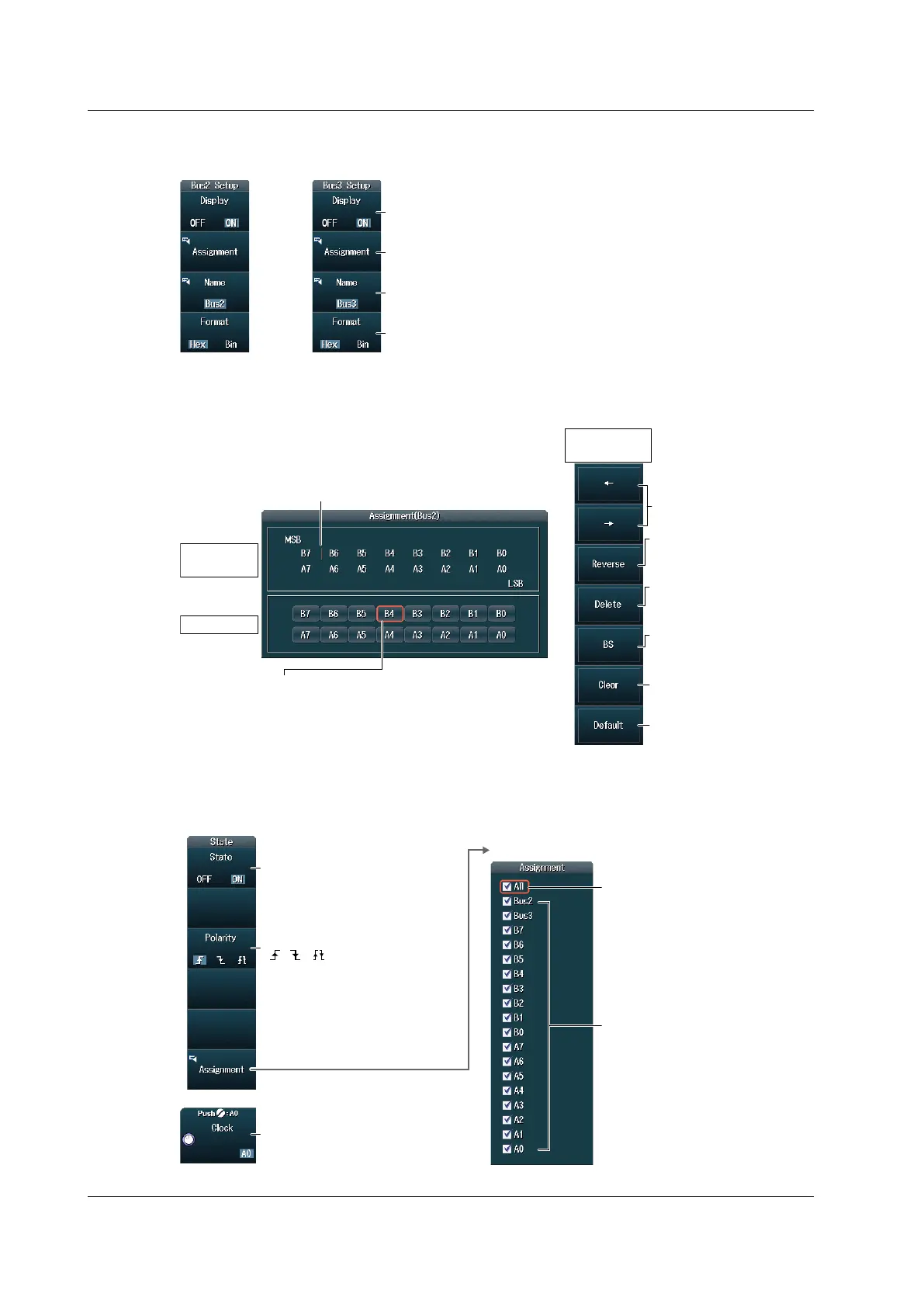

Bus2 and Bus3 Settings (Bus2, Bus3)
Press the Bus2 or Bus3 soft key to display the following menu.
Set the format (Hex, Bin).
Set the label.
Set bus bit assignments.
Turns the bus display on and off
Bus Bit Assignments
Press the Assignment soft key to display the following screen.
• Bus2 Example
Assignment
location
Bits
Assignment
edit menu
Move the cursor.
Delete
Deletes the bit to the right of
the cursor
Restores the default
settings
Clears everything
Order reversal
Reverses the MSB to LSB
order of the bits
Backspace
Deletes the bit to the left of
the cursor
Cursor
Assigned bit
Use the jog shuttle to select the bit to assign
to the right of the assignment location cursor.
1.
Press SET to assign the bit.
2.
State Settings (State)
Press the State soft key to display the following menu.
Turns the state display on and off
Set the state assignment.
Set the clock source bit
(A0 to A7, B0 to B7).
Turns on and off all bits,
Bus2, and Bus3
collectively
Turns on and off the
display of each bit, Bus2,
and Bus3
Set the clock source polarity
( , , ).
1.3 Setting the Vertical Axis for 16-bit LOGIC(A|B) (Option)
