Setting the Display Order of Bits and the Bus (Bit Order)

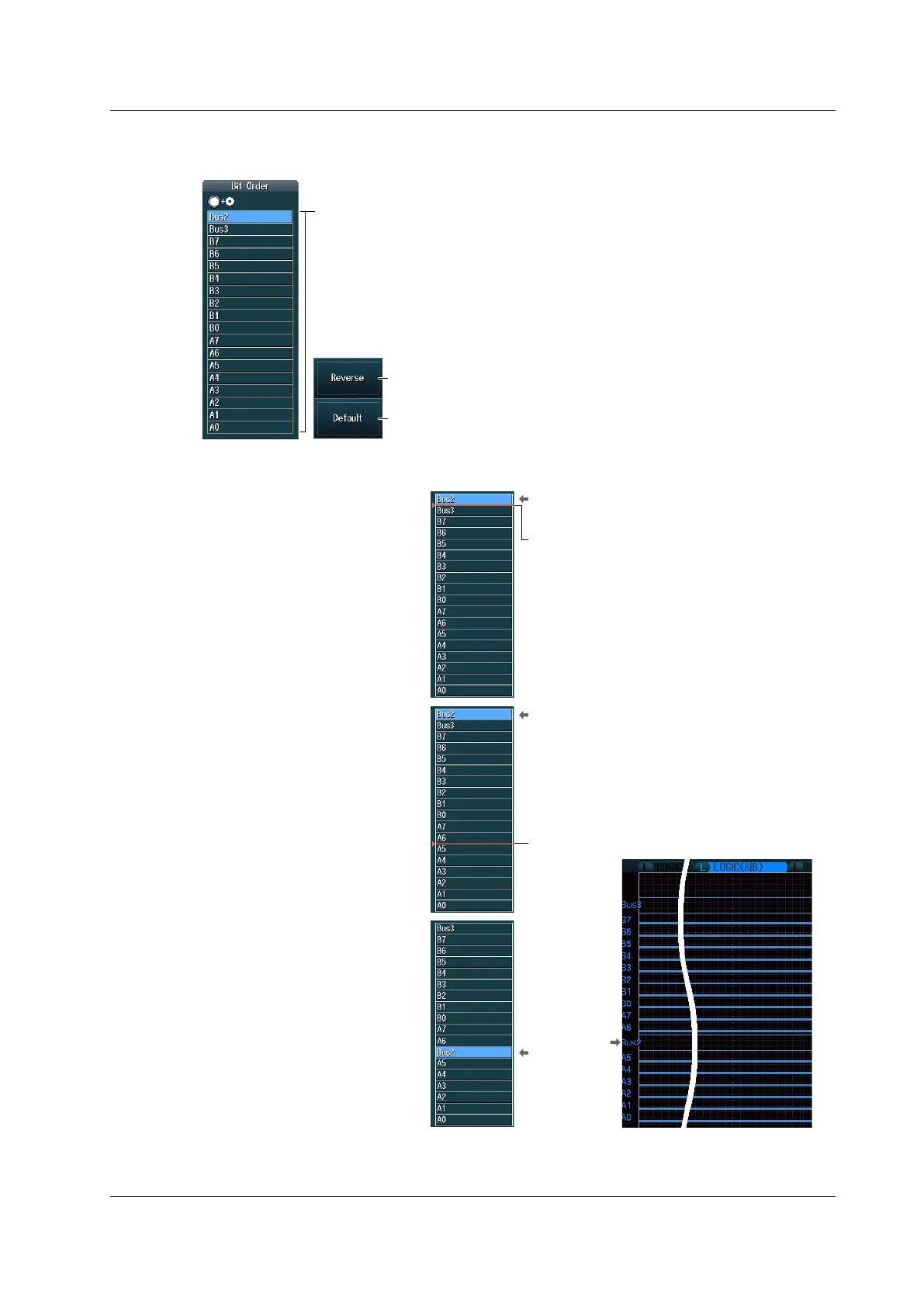

Press the Bit Order soft key to display the following screen.
Display order reversal
Reverses the display order of Bus2, Bus3, B7 to B0, and
A7 to A0
Select a bit or the bus, and edit the display order.
Restores the default settings
Cursor
Cursor
Selected bit or bus
Selected bit or bus
Selected
bit or bus
Press SET.
The selected bit or bus is confirmed
as the bit or bus that will be moved,
and a cursor is displayed below the
cell of the selected bit or bus.
2.
Turn the jog shuttle or move the SET key up and down to select the bit or bus to move.
The selected bit or bus cell is highlighted.
1.
Turn the jog shuttle or move the
SET key up and down to move the
cursor to the place where you want
to move the bit or bus.
3.
The change affects the bit and bus display order along the
vertical axis of the screen.
Press SET.
The selected bit or bus is moved to
the cursor position.
4.
1.3 Setting the Vertical Axis for 16-bit LOGIC(A|B) (Option)
