Trigger Type (Mode)
SOF (Start of Frame) Mode
Press the Mode soft key and then the SOF soft key.
The DLM4000 triggers on the start of CAN FD bus signal frames.
Error Mode (Error)

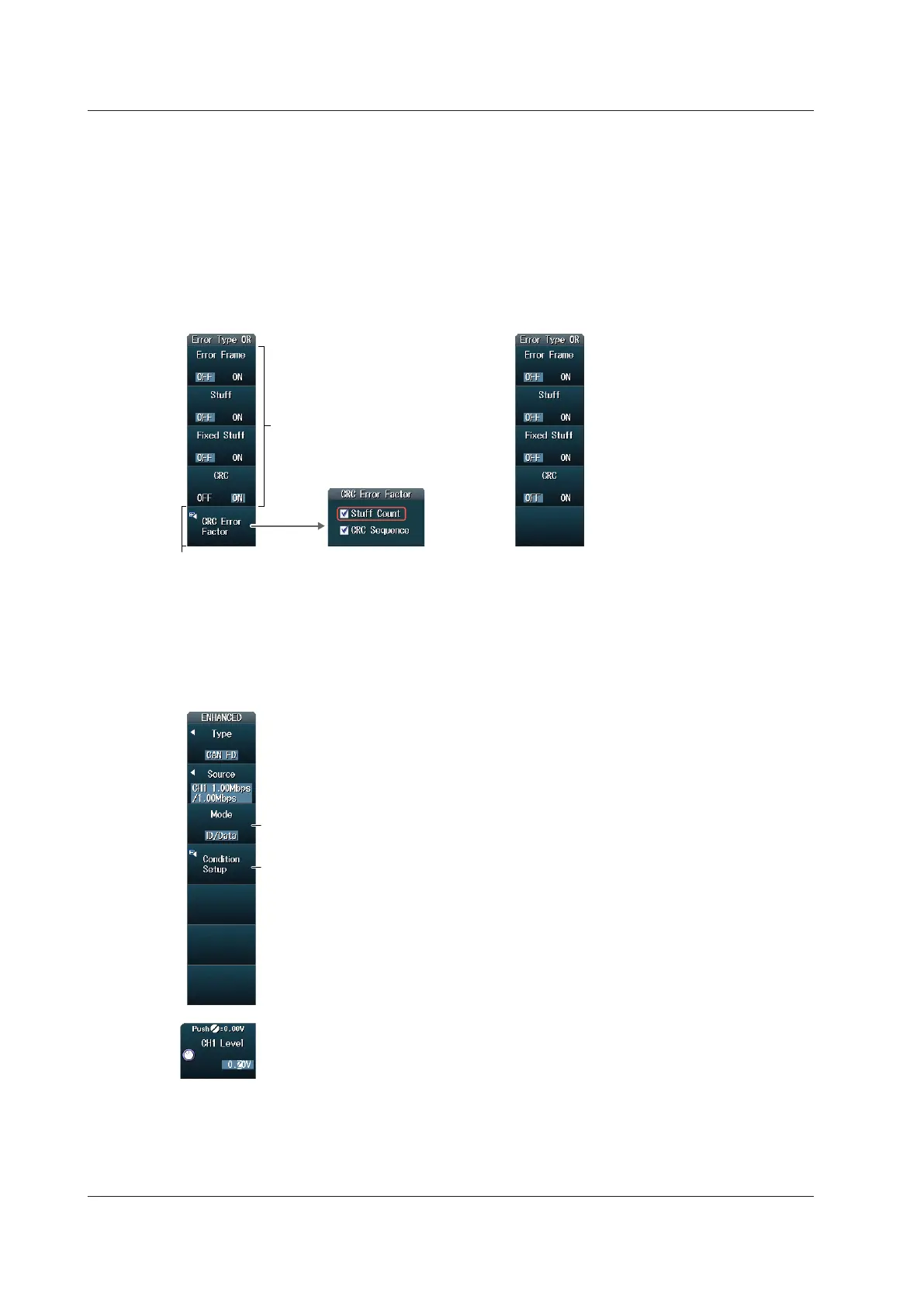

Press the Mode soft key, the Error soft key, and then the Error Type OR soft key to display the
following menu.
When the CAN FD standard* is set to ISO When the CAN FD standard* is set to non-ISO
* For setting the CAN FD standard, see page 2-24.
Turn error detection on or off for
Error Frame, Stuff, Fixed Stuff, and
CRC errors.
A menu that appears when CRC
error detection is set to ON.
Select the check boxes for the
CRC error factors to detect.
CRC errors are
not detected if
both check
boxes are
cleared.
The DLM4000 triggers on error frames (when the error flag is active) or when it detects various errors.
ID/Data Mode (ID/Data)
Press the Mode soft key and then the ID/Data soft key to display the following menu.
Set the trigger conditions.
Set the trigger type to ID/Data.
2.11 Triggering on CAN FD Bus Signals (Option)
