CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
VERIFICATION PROCEDURES
VP - 3.6 X-Axis Solenoid to Guide Rod Check
3 - 35
3
Search
Book TOC
Go Back
c. Check distance between Tool and solenoids usin
a Feeler Gau
e. Distances should be the
same (±.005 in., 0.127mm).
d. If Check is OK, Install Platen then
o to “VP - 3.8 Rack to Laser Shield Check” (Pa
e 3-39).
e. If Check Fails,
o to “VP - 3.7 X-Axis Solenoid to Guide Rod Adjustment” (Pa
e 3-36).
.

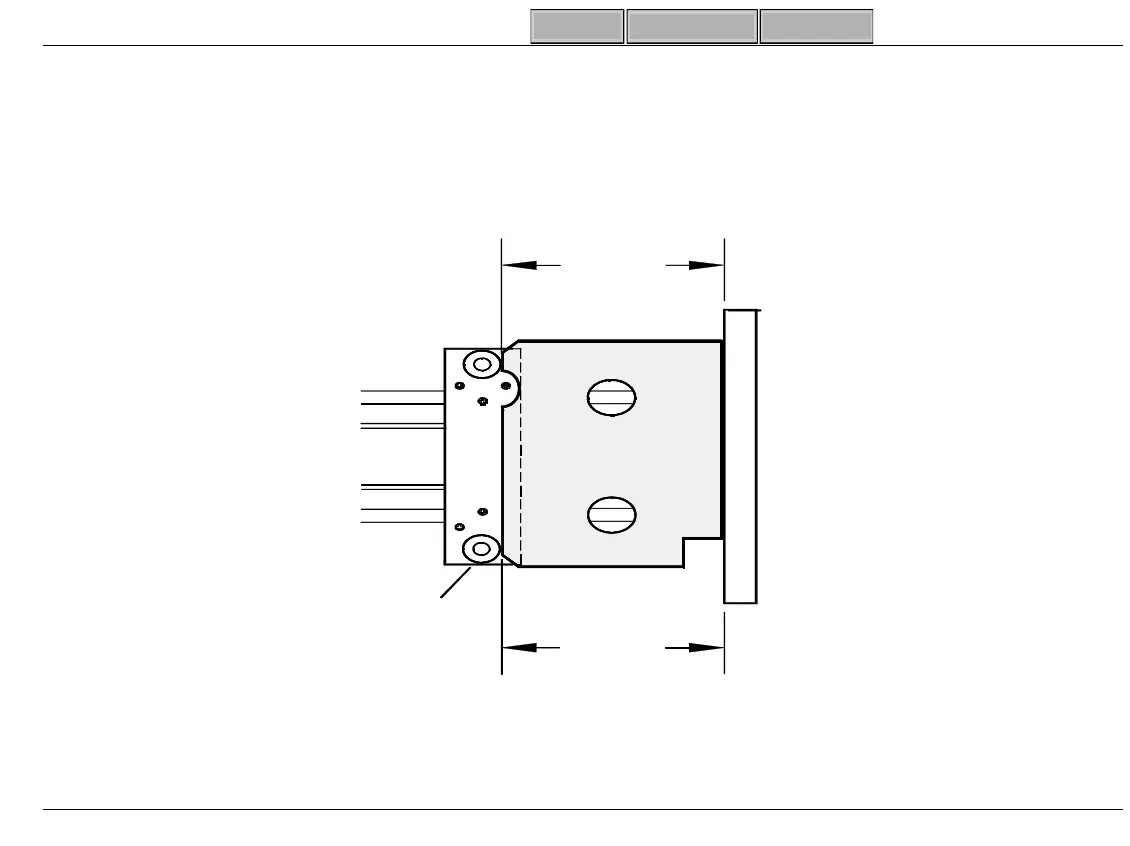

Figure 3-14 Solenoid Parallelism
--- END ---
Same
Distance
Same
Distance
SL-235
Solenoid
Alignment Tool
