CELL-DYN

3/35 Sample Loader TS Guide 9140234B-June 1997

VERIFICATION PROCEDURES

VP - 6.1 Mixing Head Position Check

3 - 78

Book TOC

Go Back

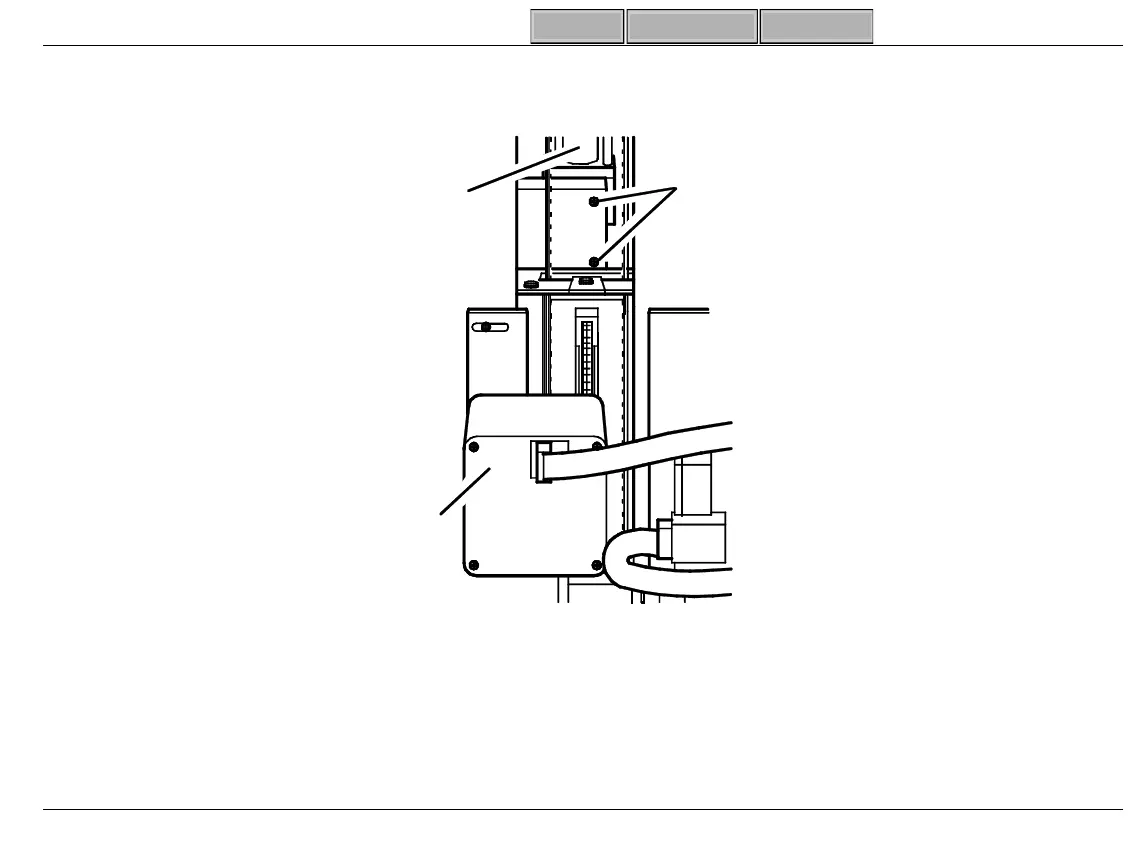

Figure 3-36 Tower Rear View

d. Ensure Ball Slide play is not excessive.

SL-242

(2) Ball Slide

Screws

Paddle

Motor

Tower Rear View

Barcode

Reader
