CELL-DYN
®
3/35 Sample Loader TS Guide 9140234B-June 1997
VERIFICATION PROCEDURES
VP - 9.2 Vent Wash Block Check/Adjustment- (F Loader Only)
3
Search
Book TOC
Go Back
5. If check fails, adjust Vent Wash Block.
a. Perform “VP - 3.8 Rack to Laser Shield Check” (Pa
e 3-39) and “VP - 3.16 X-Axis Solenoid to
Rack Guide Check” (Pa
e 3-55).
b. Loosen Retainin
Nut (Fi
ure 3-71).
c. Move Vent Wash Block to ali
n needle in Tool.
d. Ensure flat side of Wash Block is parallel to Contact Sensor Board.

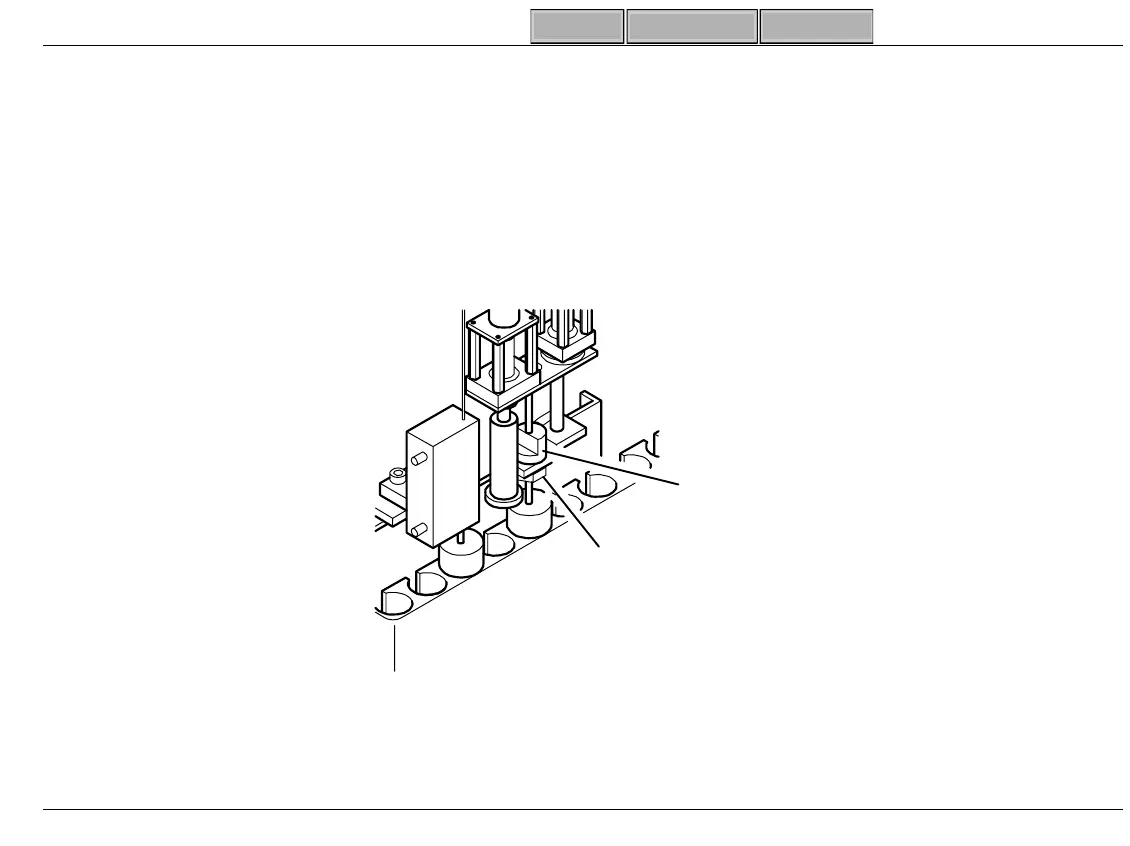

Figure 3-71 Vent Needle Alignment
--- END ---
Move Vent
Wash Block to
Adjust Needle
Loosen
Retainin
Nut
SL-182A
