6241A/6242 DC Voltage Current Source/Monitor Operation Manual
5.2.2 Pulse Source Mode Operation
5-11
a. Trigger Mode is AUTO
• The measurement and pulse period are repeated in the specified length of period.
• If the measurement does not finish in the specified period, the pulse width does not change but
the pulse period is extended and TpALM indicator illuminates.
• If a source or base value during pulse generation is changed, it stops pulse generation and gen-
erates a new pulse with a new base value and source value.
b. Trigger Mode is HOLD
• Measurement starts after the time length from trigger input to the measurement delay time has
passed.
• It ignores the trigger input during the period time.
• If trigger is input during range change processing, pulse is generated after range change process-
ing is completed.
c. Pulse source operation after Operate and changing range
• If it is Operate, pulse generation starts after Operate is processed.
• If the source-change entails the range-change, base and pulse values are set at the same range.
d. Standby or Suspended status
• During Standby or Suspended, it does not measure.
Source value
changed
AUTO
Changing source
value induces
changing the
range.
Th: Hold Time
Tp: Period Time
Td: Measurement
Delay Time
Tds:Source Delay Time
Tm: Measurement Time
(Integration time +
Measurement data
processing time)
Tcn: Operation Processing Time
Trc: Range Change Processing
Time
HOLD

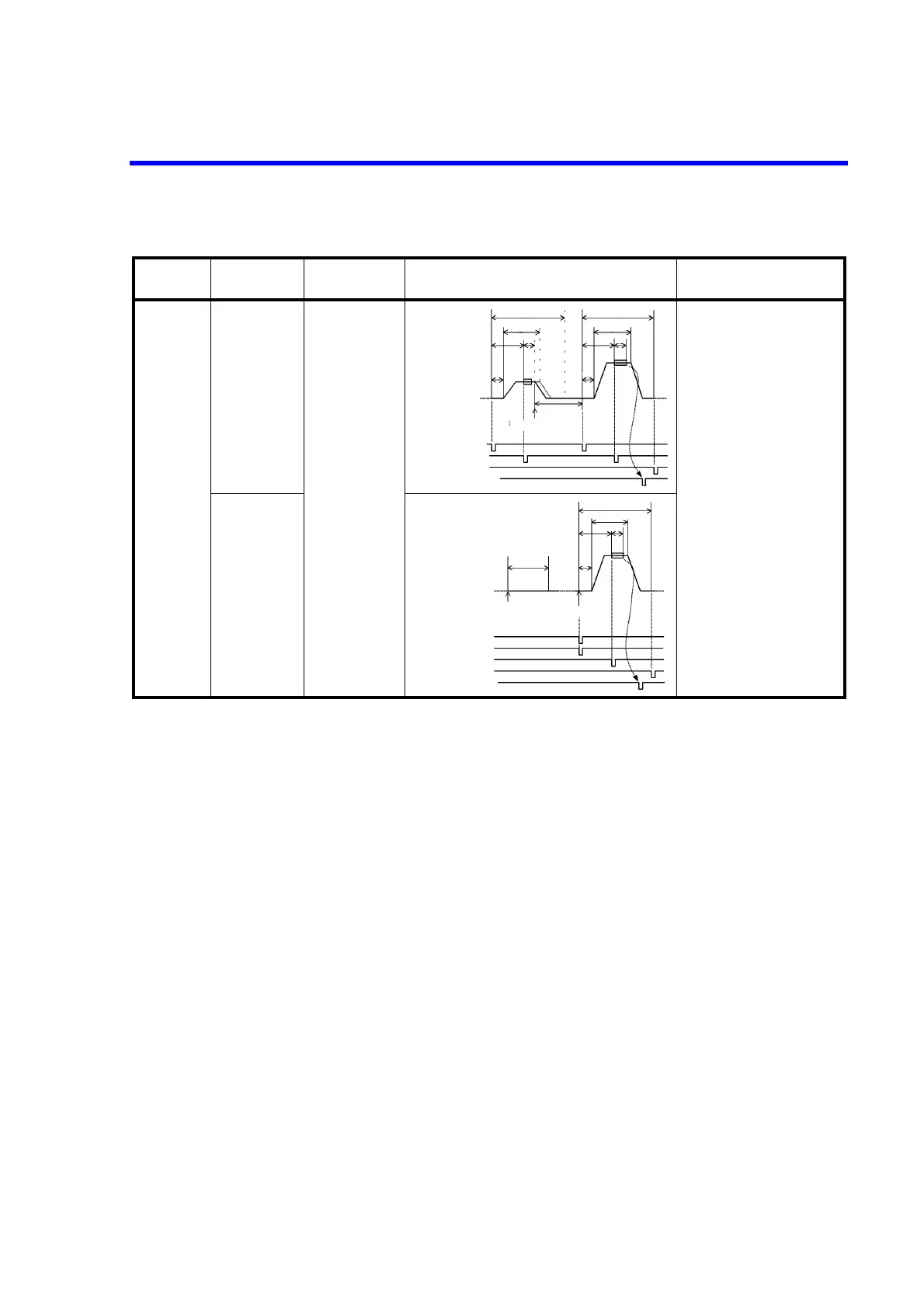

Table 5-3 Pulse Source Mode Operation (2/2)
Operational
condition
Trigger mode Explanation Operation Remarks
COMPLETE OUT [FRONT]
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
Tm
Source value changed
(Range changed)
Tp Tp
Tw Tw
Td Td
Tm
Tds
Tds
Trc
Base value
SYNC OUT
Tp
Tw
Td
Tm
Tds
Trc
Base value
Source value changed
(Range changed)
Measurement
trigger
COMPLETE OUT [FRONT]
COMPLETE OUT [HI/GO/LO]
COMPLETE OUT [END]
SYNC OUT
TRIGGER IN
To Next Page
